General

The chassis frame can be raised/lowered.
i
Vehicles with air-sprung rear axle:
The chassis frame can only be raised or lowered at the rear axle.
Vehicles with full air suspension:
The chassis frame can be raised or lowered at the front and rear axles.
When the vehicle key in the ignition lock is in the drive position, the height of the chassis frame readjusts
automatically. If the height of the chassis frame is unable to readjust automatically, e.g. due to insufficient
reservoir pressure in the compressed-air system, the display shows
deactivated. If a fault occurs in the Telligent
in the compressed air system is too low:
Start engine and leave to run.
The compressed air system is filled.

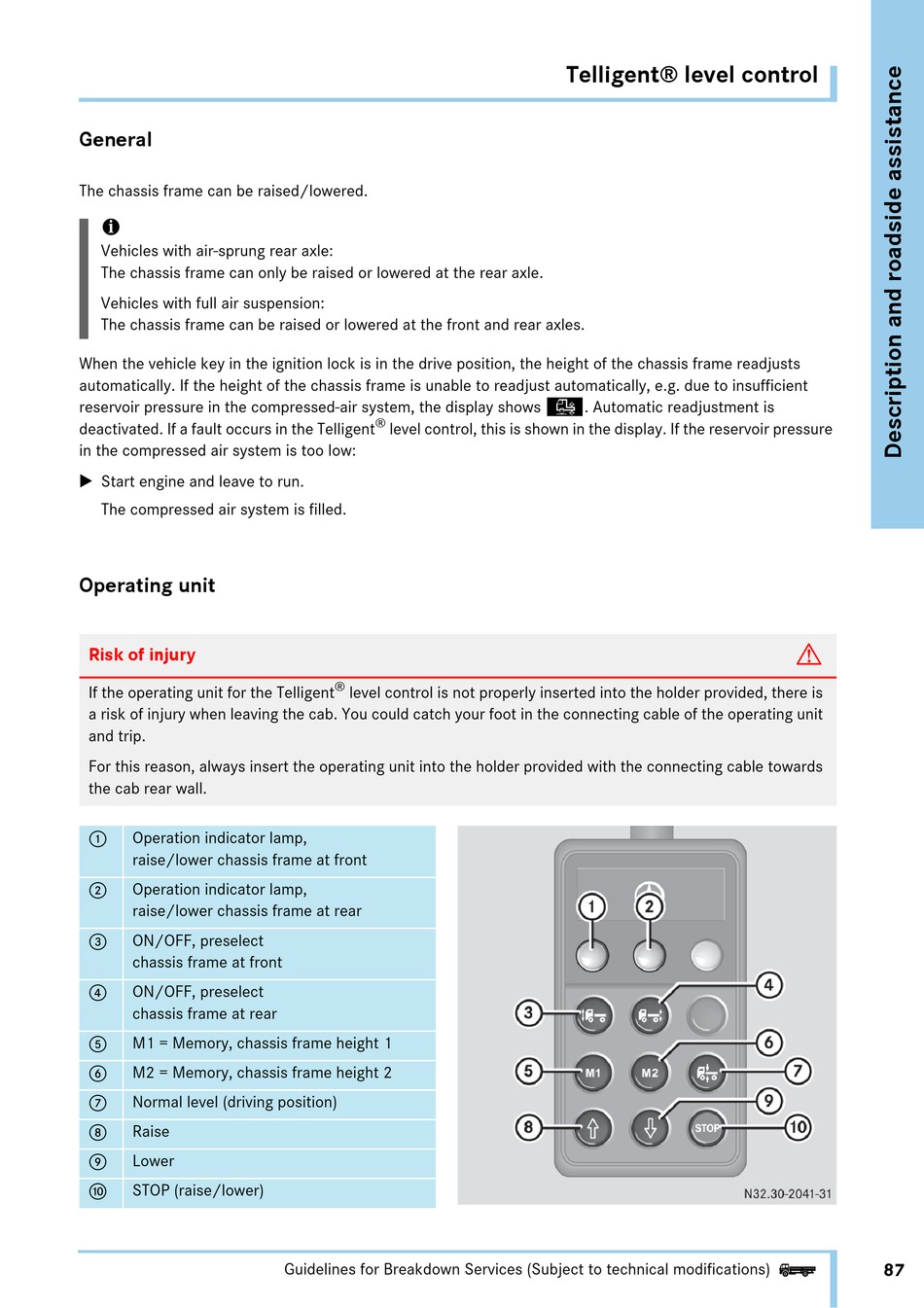

Operating unit
Risk of injury
If the operating unit for the Telligent
a risk of injury when leaving the cab. You could catch your foot in the connecting cable of the operating unit
and trip.
For this reason, always insert the operating unit into the holder provided with the connecting cable towards
the cab rear wall.
1
Operation indicator lamp,
raise/lower chassis frame at front
2
Operation indicator lamp,
raise/lower chassis frame at rear
3
ON/OFF, preselect
chassis frame at front
4
ON/OFF, preselect
chassis frame at rear
5
M1 = Memory, chassis frame height 1
6
M2 = Memory, chassis frame height 2
7
Normal level (driving position)
8
Raise
9
Lower
a
STOP (raise/lower)
®
level control, this is shown in the display. If the reservoir pressure
®
level control is not properly inserted into the holder provided, there is
Guidelines for Breakdown Services (Subject to technical modifications)
Telligent® level control
E
. Automatic readjustment is
G
87
i
