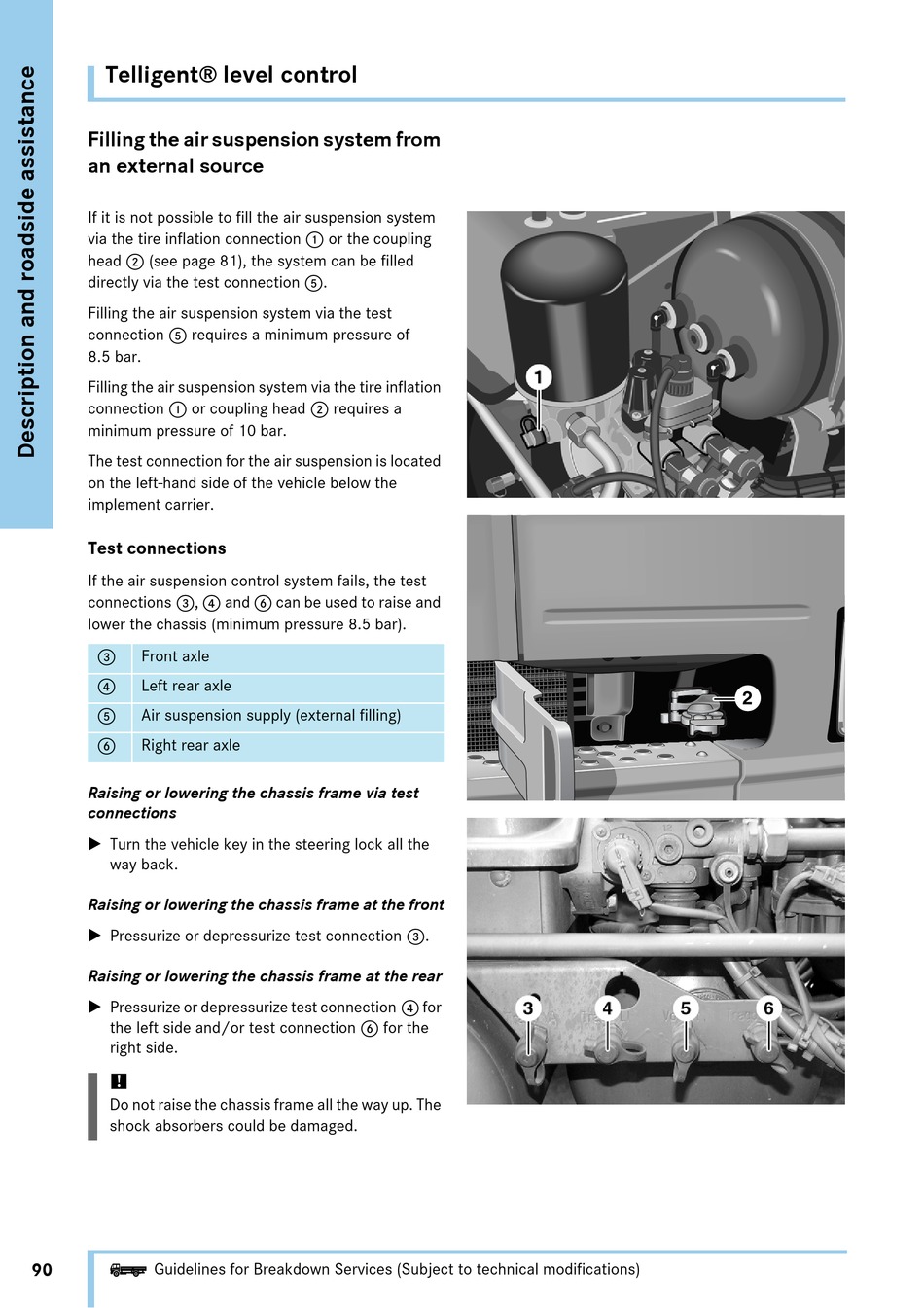

Telligent® level control
Filling the air suspension system from
an external source
If it is not possible to fill the air suspension system
via the tire inflation connection 1 or the coupling
head 2 (see page 81), the system can be filled
directly via the test connection 5.
Filling the air suspension system via the test
connection 5 requires a minimum pressure of
8.5 bar.
Filling the air suspension system via the tire inflation
connection 1 or coupling head 2 requires a
minimum pressure of 10 bar.
The test connection for the air suspension is located
on the left-hand side of the vehicle below the
implement carrier.
Test connections
If the air suspension control system fails, the test
connections 3, 4 and 6 can be used to raise and
lower the chassis (minimum pressure 8.5 bar).
3
Front axle
4
Left rear axle
5
Air suspension supply (external filling)
6
Right rear axle
Raising or lowering the chassis frame via test
connections
Turn the vehicle key in the steering lock all the
way back.
Raising or lowering the chassis frame at the front
Pressurize or depressurize test connection 3.
Raising or lowering the chassis frame at the rear
Pressurize or depressurize test connection 4 for
the left side and/or test connection 6 for the
right side.
!
Do not raise the chassis frame all the way up. The
shock absorbers could be damaged.
