Aplex FABS-107P User Manual

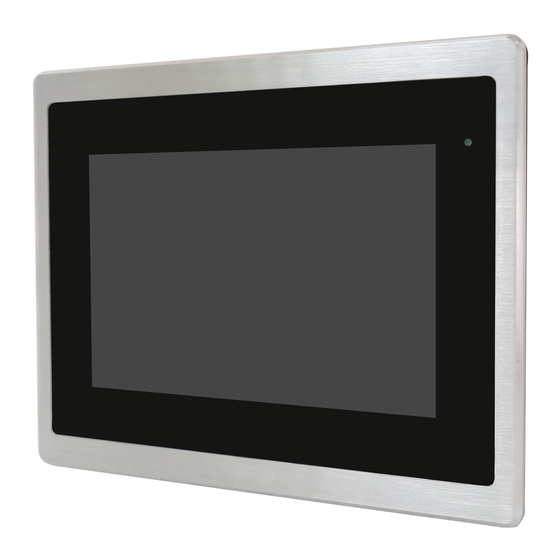

Flat front panel ip66 / ip69k stainless steel chassis display
Hide thumbs Also See for FABS-107P:
Table of Contents

Advertisement

Quick Links

Download this manual
Electronic
Design
Why choose DSL?
• Over 25 Years
Industry Experience
• 5 Years Warranty
on all Products
• Evaluation Products Available
• Lifetime Technical Support
Call us on +44(0)1462 675330
Email us at sales@dsl-ltd.co.uk
Panel
Single Board
PC / HMI
Computer
Our Services
• Electronic Design
• Production Management
• Assembly and Test
• Bespoke BIOS Creation
• Industrial Embedded
PC Solutions
www.dsl-ltd.co.uk
Industrial
PC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FABS-107P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aplex FABS-107P

Summary of Contents for Aplex FABS-107P

  • Page 1 Electronic Panel Single Board Industrial Design PC / HMI Computer Why choose DSL? Our Services • Over 25 Years • Electronic Design Industry Experience • Production Management • 5 Years Warranty • Assembly and Test on all Products • Bespoke BIOS Creation •...

  • Page 2: User Manual

    Stainless Steel Chassis Display User Manual Release Date Revision Aug. 2019 V1.0 ®2019 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan Aplex Technology, Inc. 15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan Tel: 886-2-82262881 Fax: 886-2-82262883 URL: http://www.aplextec.com/zh/home.php...

  • Page 3: Revision History

    Revision History Reversion Date Description 2019/08/28 Official Version FABS-1XXP/G(H) User Manual...

  • Page 4: Warning

    This information in this document is subject to change without notice. In no event shall Aplex Technology Inc. be liable for damages of any kind, whether incidental or consequential, arising from either the use or misuse of information in this document or in any related materials.

  • Page 5: Table Of Contents

    Table of Contents Revision History………………………………………………………………………………….1 Warning!……………………..………………………………………………………….……..….2 Chapter 1 Getting Started 1.1 Features…………………………………….……………..……..……………………….5 1.2 Specifications…………………………….………………………………….…………………5 1.3 Dimensions…………………...………………...…..……………………………..……..…9 1.4 Brief Description of FABS-1XXPG(H) Series.………..………………………...12 Chapter 2 AD BOARD INFORMATION 2.1 AD Board Specifications..………….…...………..….…..……………………….….20 2.2 Board Dimensions.……………………..…………….………………………..…...……21 2.3 Jumpers and Connectors Location…..…….………………………..…...……22 2.4 Jumper Settings and Connectors.…………..……………………..……...33 Chapter 3 3.1 AD Board OSD Functions………….…...………..….…..……………………….….32 3.2 OSD Controls……………………………..…………….………………………..…...……33...
  • Page 6 Figure 1.7: Dimensions of FABS-121PG(H)..............12 Figure 1.8: Front View of FABS-107PG(H)….............….13 Figure 1.9: Rear View of FABS-107PG(H)..…………………………………..…..………………..13 Figure 1.10: Front View of FABS-110PG(H)…........…………………….14 Figure 1.11: Rear View of FABS-110PG(H)…………………………………………………..…..14 Figure 1.12: Front View of FABS-112PG(H)……………………...…………………………………….15 Figure 1.13: Rear View of FABS-112PG(H)............……..15 Figure 1.14: Front View of FABS-115PG(H)…………………….……………………..……………….16 Figure 1.15: Rear View of FABS-115PG(H)…………………….………….……………….……………16 Figure 1.16: Front View of FABS-117PG(H)..............17...

  • Page 7: Getting Started

    Chapter 1 Getting Started 1.1 Features  Stainless Steel front bezel display  Flat front panel touch screen  IP66 / IP69K(option) compliant front panel  VGA, DVI-D/HDMI, and DP input  Wide range DC 9~36V power input  High Brightness LCD and Auto dimming for option ...

  • Page 8: Power Consumption

    1G / 5~500Hz (Random) / Operation Shock 15G peak acceleration (11 msec. duration) / Operation Certification CE / FCC Class A, design ready to meet EN1672-2 standard  Power Consumption Model Name FABS-107P/G(H) FABS-110P/G(H) FABS-112P/G(H) FABS-115P/G(H) FABS-117P/G(H) FABS-119P/G(H) FABS-121P/G(H) Power 5.63W (STD LCD)
  • Page 9 Standard LCD  FABS-107P FABS-110P FABS-112P Display Type 7” color TFT LCD 10.1” color TFT LCD 12.1” color TFT LCD Max. Resolution 800 x 480 1280 x 800 800 x 600 1024 x 768 Max. Colors 262K 16.7M 16.2M 16.2M...
  • Page 10 High Brightness LCD (Option)  FABS-107PH FABS-110PH FABS-112PH Display Type 7” color TFT LCD 10.1” color TFT LCD 12.1” color TFT LCD Max. Resolution 800 x 480 1280 x 800 800 x 600 1024 x 768 Max. Colors 262K 16.7M 262K/16.2M 262K/16.2M Contrast Ratio...

  • Page 11: Dimensions

    1.3 Dimensions Figure 1.1: Dimensions of FABS-107PG(H) Figure 1.2: Dimensions of FABS-110PG(H) FABS-1XXP/G(H) User Manual...

  • Page 12: Figure 1.3: Dimensions Of Fabs-112Pg(H)

    Figure 1.3: Dimensions of FABS-112PG(H) Figure 1.4: Dimensions of FABS-115PG(H) FABS-1XXP/G(H) User Manual...

  • Page 13: Figure 1.5: Dimensions Of Fabs-117Pg(H)

    Figure 1.5: Dimensions of FABS-117PG(H) Figure 1.6: Dimensions of FABS-119PG(H) FABS-1XXP/G(H) User Manual...

  • Page 14: Brief Description Of Fabs-1Xxpg(H) Series

    Figure 1.7: Dimensions of FABS-121PG(H) 1.4 Brief Description of FABS-1XXPG(H) FABS-1XXPG(H) is an IP66 / IP69K(option) compliant front bezel 304/316(option) stainless steel chassis display, which comes with 7” to 21.5” color TFT LCD. The optional high brightness LCD is ideal for sunlight readable semi-outdoor applications. Furthermore, 12.1”...

  • Page 15: Figure 1.8: Front View Of Fabs-107Pg(H)

    Figure 1.8: Front View of FABS-107PG(H) Figure 1.9: Rear View of FABS-107PG(H) FABS-1XXP/G(H) User Manual...

  • Page 16: Figure 1.10: Front View Of Fabs-110Pg(H)

    Figure 1.10: Front View of FABS-110PG(H) Figure 1.11: Rear View of FABS-110PG(H) FABS-1XXP/G(H) User Manual...

  • Page 17: Figure 1.12: Front View Of Fabs-112Pg(H)

    Figure 1.12: Front View of FABS-112PG(H) Figure 1.13: Rear View of FABS-112PG(H) FABS-1XXP/G(H) User Manual...

  • Page 18: Figure 1.14: Front View Of Fabs-115Pg(H)

    Figure 1.14: Front View of FABS-115PG(H) Figure 1.15: Rear View of FABS-115PG(H) FABS-1XXP/G(H) User Manual...

  • Page 19: Figure 1.16: Front View Of Fabs-117Pg(H)

    Figure 1.16: Front View of FABS-117PG(H) Figure 1.17: Rear View of FABS-117PG(H) FABS-1XXP/G(H) User Manual...

  • Page 20: Figure 1.18: Front View Of Fabs-119Pg(H)

    Figure 1.18: Front View of FABS-119PG(H) Figure 1.19: Rear View of FABS-119PG(H) FABS-1XXP/G(H) User Manual...

  • Page 21: Figure 1.20: Front View Of Fabs-121Pg(H)

    Figure 1.20: Front View of FABS-121PG(H) Figure 1.21: Rear View of FABS-121PG(H) FABS-1XXP/G(H) User Manual...

  • Page 22: Chapter 2 Ad Board Information

    Chapter 2 AD BOARD INFORMATION 2.1 AD Board Specification Specifications Board Size 170 x 113 mm Scalar IC Realtek RTD2556T-CG Input 1 x HDMI Input (Share with DVI-D) 1 x DisplayPort(DP) 1 x USB2.0(Type-B) 1 x DVI-D (Share with HDMI) 1 x VGA 1 x Supports up to 24-bit LVDS FULL HD panel interface Output...

  • Page 23: Board Dimensions

    2.2 Board Dimensions Figure 2.1: Dimension of TB-6802(Top) Figure 2.2: Dimension of TB-6802(Bottom) FABS-1XXP/G(H) User Manual...

  • Page 24: Jumpers And Connectors Location

    2.3 Jumpers and Connectors Location Board Top JP4/NC SPKR1/SKPL1 INVT1 External I/O HDMI CN1(DVI-D) VGA1 FABS-1XXP/G(H) User Manual...

  • Page 25: Jumper Settings And Connectors

    2.4 Jumpers Settings and Connectors 1. PW1: (5.08mm Pitch 1x3 Pin Connector),DC24V power input connector。 Pin# Power Input DC+24V Ground Model Connector Type TB-6802 2EHDVM-03P TB-6802P ELK508S-03P 2. PW2（Option）: DC Jack 3. HDMI1（HDMI Input） : (HDMI Connector), High Definition Multimedia Interface connector, provide high-quality video and audio input.
  • Page 26 4.DP1（DisplayPort Input） : (DisplayPort Connector), DisplayPort Interface connector, provide high-quality video and audio input. Signal Name Pin# Pin# Signal Name LANE3- LANE3+ LANE2- LANE2+ LANE1- LANE1+ LANE0- LANE0+ AUX_CHP DP CAB DET AUX_CHN DP HPD RETURN DP 3.3V 5.CN1（DVI-D Iutput）: (DVI-D Connector), Digital Visual Interface-Integrated input connector.
  • Page 27 CRT_BLUE Ground Ground VGA_5V DET_VGA Ground DDCA-SDA HSYNC VSYNC DDCA-SCL 7. CN2（IR Connect）: Reserved (2.0mm 1x4 Pin wafer connector), Reserved for IR receiver. Pin# Signal Name 3.3V 8. CN3（eDP Output）: (1.25mm Pitch 2x15 Connector) eDP output connector. Signal Name Pin# Pin# Signal Name LVDS_12V...
  • Page 28 TXB0N TXB0P TXB1N TXB1P DPTX_AUX_N DPTX_AUX_P AB_IICSCL AB_IICSDA TX2_HPD_2 9. CN4（LVDS Output）: (1.25mm Pitch 2x20 Connector),For 24-bit LVDS output connector, the interface features dual channel 18/24-bit output. Signal Name Pin# Pin# Signal Name LVDS_12V LVDS_12V BKLT_CTRL BKLT_EN LVDS_VCC5 LVDS_VCC5 LVDS_VCC3 LVDS_VCC3 TXA0N TXA0P...
  • Page 29 10. CN5（Line Out）: (Diameter 3.5mm Jack), Audio port, provide high quality audio I/O ports. Line Out can be connected to a headphone or amplifier. 11. CN6（USB2.0）: (USB Type-B), For external USB2.0 signal input. Pin# Signal Name USB 5V USB- USB+ 12.
  • Page 30 14. INVT1: (2.0mm Pitch 1x6 wafer Pin Header), Backlight control connector for LVDS. Pin# Signal Name LVDS_DC12V LVDS_DC12V Ground Ground BKLT_EN BKLT_CTRL 15. JP1（OSD）: (2.0mm 1x9 Pin wafer connector), menu connector. On Screen Display Control Pin# Signal Name Power Key R_LED G_LED MENU Key...
  • Page 31 17. JP3 : (2.0mm Pitch 1x3 Pin Header), Backlight control setting. JP3 Pin# Function Close 1-2 For PWM Mode Close 2-3 For DC Mode 18. JP4/NC（Debug Interface & Off Page） : (2.0mm Pitch 2x5 Pin Header) Pin# Signal Name VCC3 TICEDAT TICECLK UART0_TX...
  • Page 32 HSYNC CRT_RED CRT_GREEN CRT_BLUE DDCA-SDA DDCA-SCL 21. J2: (2.0mm Pitch 2X3 Pin Header), RS232 or USB input for PM6000 Touch Controller Signal jumper setting. PM6000 input CN4/USB Signal output ● Close（3-5,4-6） USB(CN6) Close（1-3,2-4） Close（1-3,2-4） RS232(CN7) Close（1-3,2-4） RS232(CN7) 22. J3: (2.0mm Pitch 1X6 Pin Wafer),Touch Screen connecting Lines. Pin# 4-Wire 5-Wire...
  • Page 33 24. SPKL1（Audio output）: (2.0mm 1x2 Pin wafer connector),Amplifier left channel output. Pin# Signal Name L+ (output) L- (output) 25.SPKR1（Audio output）: (2.0mm 1x2 Pin wafer connector), Amplifier right channel output. Pin# Signal Name R+ (output) R- (output) FABS-1XXP/G(H) User Manual...

  • Page 34: Chapter 3 Osd

    Chapter 3 3.1 AD Board OSD Functions Auto Adjust Up/Left Down/Right Power Menu/Entry Power Indicator Power switch: To turn ON or OFF the power Shift the icon to the right side or shift it up Shift the icon to the left side or shift it down Menu: To enter OSD menu for related icon and item.

  • Page 35: Osd Controls

    When the Burn-in Mode is Unable to Eradicate… If the “RGB” is still on the top left corner of the screen, press to enter “Miscellaneous” and choose “Reset”, and then Yes, and press . When the screen goes black, disconnect power and repeat the above steps. If the “RGB”...

  • Page 36: Main Menu

    3.3 Main Menu In the PICTURE, there are the following items:  AutoBacklight  Backlight  Brightness:  Contrast  Sharpness  Exit In the DISPLAY, there are the following items:  AutoAdjust  H Position  V Position  Disp Rotate ...
  • Page 37 In the INPUT, there are the following items:  A0:VGA  D1:DP  D3:HDMI  Exit In the AUDIO, there are the following items:  Volume  Mute  Audio Source  Exit In the OTHER, there are the following items: ...
  • Page 38 Information part. FABS-1XXP/G(H) User Manual...

  • Page 39: Appendix A: Panel Mounting And Vesa Mounting

    *Tighten the mounting clips to the specified torque to provide a proper seal and to prevent damage to the product. Aplex assumes no responsibility for water or chemical damage to the product or other equipment within the enclosure due to improper installation.
