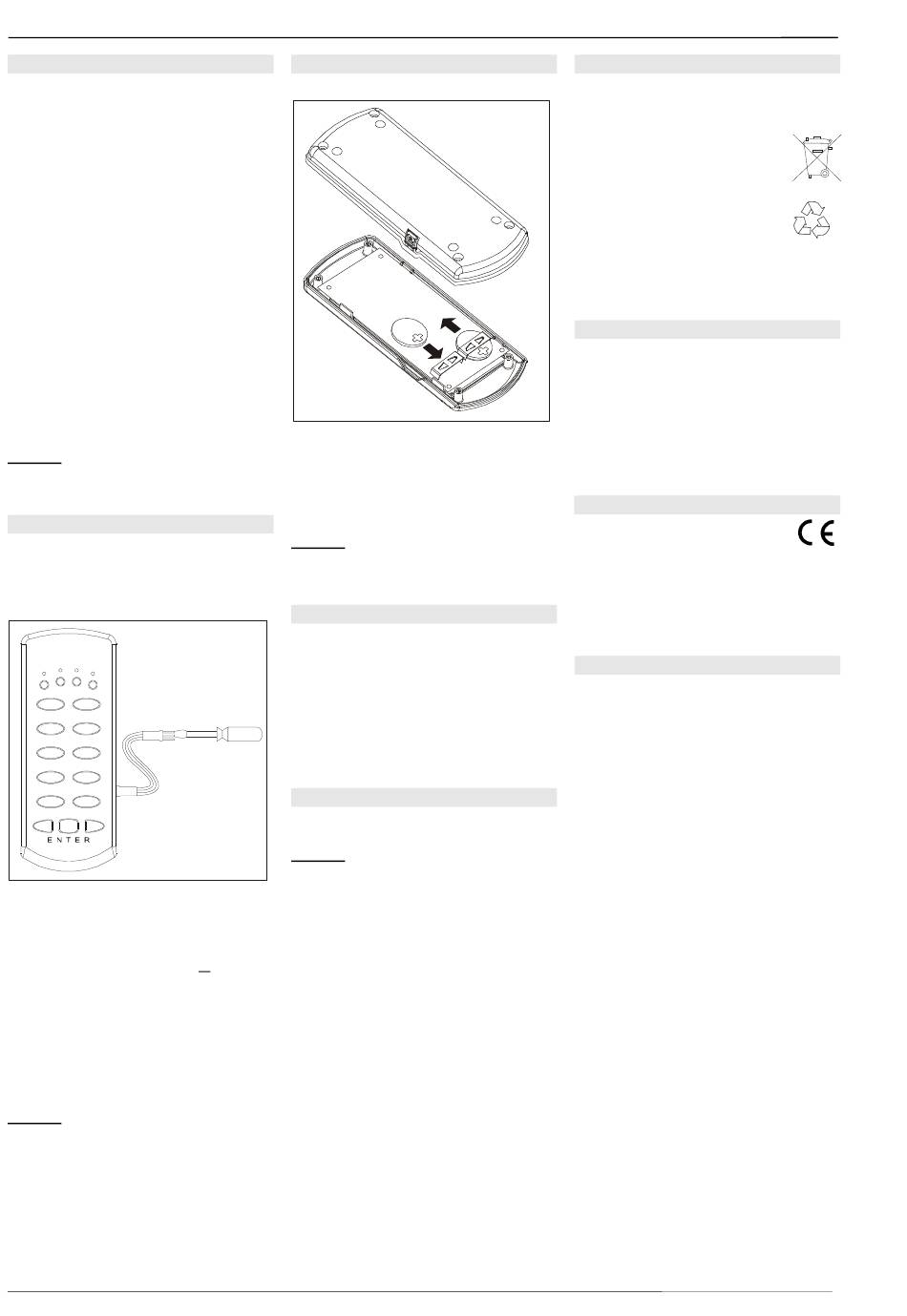

Duplicate
1. Connect both Multi Channel Transmit-
ters using the programming cable.
2. Keep the button 0 on the target trans-
mitter pressed (approx. 5 sec.) until the
LED C lights up.
3. Press and hold the middle ENTER
button on the target transmitter until the
duplication process is completed (see
step 5).
The LED C flashes slowly.
4. Press the button 0 and then the middle
ENTER button on the source transmitter
within 10 seconds. The coding is trans-
ferred and the LED D on the target
transmitter flashes rapidly for approx. 70
seconds. The LED C on the source
transmitter flashes slowly.
5. When the LED C on the target trans-
mitter lights up for approx. 3 seconds,
the duplication process is completed.
Aborting the duplicating process
•
Press the left or right ENTER button.
Caution!
Please note that all transferred data has
been stored on the target transmitter!
Random coding
1. Insert the programming cable into the
socket on the Multi Channel Transmit-
ter, and at the other end of the cable
short-circuit one of the outer pins with
the middle pin.
B C
A D
1 2
3 4
5 6
7 8
9 0
2. Press and hold button 1 until LED B
lights up.
3. Briefly press the ENTER button. LED B
flashes slowly.
4. Press the preference button or enter the
channel number at this point for which a
new random code is to be set.
5. Press and hold the ENTER button. LED
B flashes rapidly.
If LED B stays lit up then the coding
process has been completed and the
ENTER button can be released.
6. Remove the programming cable.
Caution!
The new code must be transferred to the
radio control!
Replacing Batteries
1. Unscrew the battery housing cover.
2. Remove the old batteries.
3. Insert two new 3 V batteries. Use only
batteries of type CR2032.
Make sure the polarity is correct!
4. Screw the battery housing cover back
on.
Caution!
Keep batteries out of reach of children!
Troubleshooting
•
The LEDs are only faint when lit up:
Change the batteries.
•
The LEDs do not light up at all:
Check the polarity of the batteries.
•
Move closer to the radio control or
teach-in the multi-channel transmitter
channels to the radio control(s) again.
Cleaning
Wipe the housing carefully with a damp lint-
free cloth.
Caution!
Do not use solvent-based cleaning agents.
These can damage your health and destroy
the surface of the housing.
Disposal
Waste electrical products and batteries
should not be disposed of with house-
hold waste!
Dispose of the waste product via a
collection point for electronic scrap
or via your specialist dealer.
Dispose of used batteries in a
recycling bin for batteries or via the
specialist trade.
Put the packaging material into the
recycling bins for cardboard, paper
and plastics.
Warranty
Within the statutory warranty period we
undertake to rectify free of charge by repair
or replacement any product defects arising
from material or production faults.
Any unauthorized tampering with, or modifi-
cations to, the product shall render this
warranty null and void.
Conformity
This product conforms to the basic
requirements of the R&TTE Direc-
tive 1999/5/EC.
For use in: EU/CH/FL/N/IS
The Declaration of Conformity can be found
on the Internet at: www.eldat.de.
Customer Service
If, despite correct handling, faults or mal-
functions occur or if the product was dam-
aged, please contact the company at the
address below:
ELDAT GmbH
Im Gewerbepark 14
D-15711 Zeesen
Germany
Phone: + 49 (0) 33 75 / 90 37-0
Telefax: + 49 (0) 33 75 / 90 37-90
Internet: www.eldat.de
e-Mail: info@eldat.de
75475 0106 GB
