Attaching Flame Weeder Implement
PARTS NE E DE D
•
1
×
Tool Cart (from Step 4)
•
1
×
Flame Weeder Implement
(from Step 6)
•
2
×
3⁄8"-16, 3" Carriage Bolts
•
2
×
3⁄8"-16 Nuts
•
2
×
3⁄8" Washers
3⁄8"-16 Nut
3⁄8" Washer
3⁄8"-16, 3" Carriage Bolt
Tank Brace
(Flame Weeder Implement)
12
Well-designed, quality tools and equipment

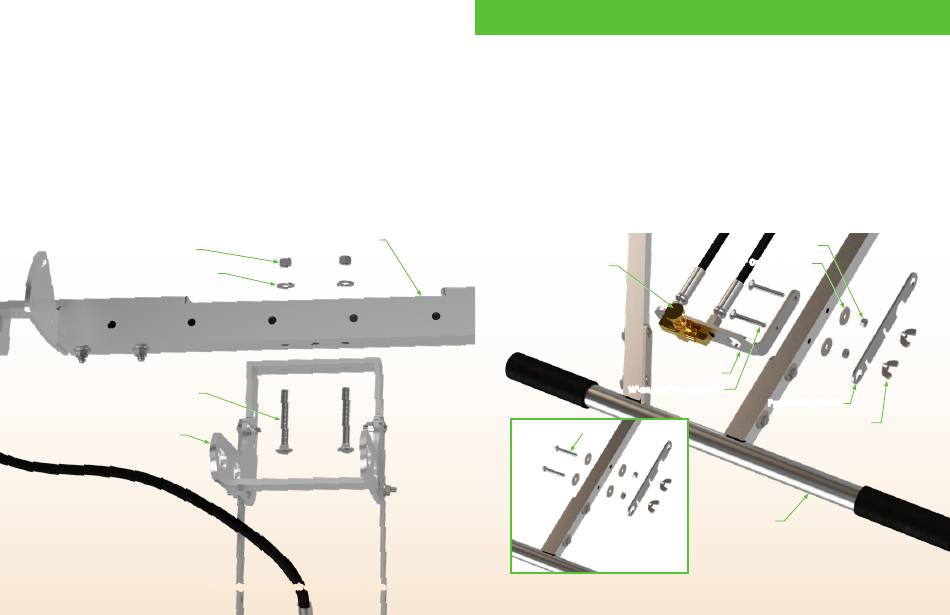

S T E P 7
1.
Attach the Flame Weeder Implement to
the front of the Tool Bar as shown.
Tool Bar (Tool Cart)
| farmersfriendllc.com
H A N D L E - M O U N T E D V A LV E V E R S I O N
Attaching Valve Assembly
PARTS NE E DE D
•
1
×
Tool Cart (from Step 4)
•
1
×
Valve Assembly (Flame Weeder
Implement, from Step 6)
•
2
×
1⁄4"-20, 13⁄4" Carriage Bolts
•
2
×
1⁄4" Oversize Washers
•
2
×
1⁄4"-20 Nuts
•
2
×
1⁄4"-20 Wing Nuts
•
1
×
Pyroweeder Wrench
Control Valve
Valve Assembly
1⁄4"-20, 1 3⁄4" Carriage Bolt
1⁄4"-20, 13⁄4" Hex Bolt
Attaching
wrench without a
handle-mounted valve.
(931) 583-0397
| support@farmersfriendllc.com
S T E P 8
1.
Attach the Valve Assembly to the Handle
Assembly as shown, placing the Pyroweeder
Wrench under the 1⁄4"-20 Wing Nuts.
2.
You may occasionally need to adjust or tighten nuts
as you work with your Pyroweeder. The Pyroweeder
Wrench is attached near the handle so that it is
available at any time. For in-field adjustments,
loosen the wing nuts and temporarily remove the
Pyroweeder Wrench.
1⁄4"-20 Nut
1⁄4" Oversize Washer
Pyroweeder Wrench
1⁄4"-20 Wing Nut
Handle Assembly
(Tool Cart)
13
