Upper Handle Assembly - Farmers Friend Pyroweeder Assembly And Instruction Manual

Upper Handle Assembly

PARTS NE E DE D
•
1 × Handle
•
1 × Short Bar
•
1 × Long Bar
•
4 × 1⁄4"-20, 11⁄2" Carriage Bolts
•
4 × 1⁄4" Oversize Washers
•
4 × 1⁄4"-20 Nuts
1⁄4"-20 Nut
1⁄4" Oversize Washer
Short Bar
6

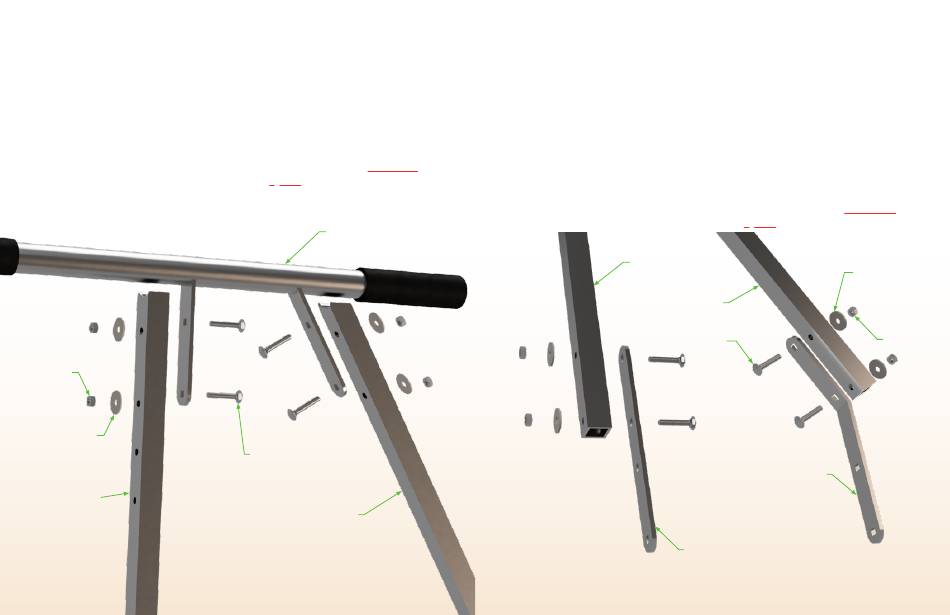

S T E P 1
1.
Attach the concave ends of the rectangu-
lar bars to the handle as shown. (Attach
the longer bar to the angled handle tie.)
2.
Tighten the bolts just enough so that the
bars are firmly attached. Do not over
tighten.
Handle
1⁄4"-20, 11⁄2" Carriage Bolt
Long Bar
Well-designed, quality tools and equipment | farmersfriendllc.com
Handle Assembly
PARTS NE E DE D
•
1 × Upper Handle Assembly
(from Step 1)
•
1 × Straight Lower Handle Tie
•
1 × Angled Lower Handle Tie
•
4 × 1⁄4"-20, 11⁄2" Carriage Bolts
•
4 × 1⁄4" Oversize Washers
•
4 × 1⁄4"-20 Nuts
Short Bar
Long Bar
1⁄4"-20, 11⁄2" Carriage Bolt
Straight Lower Handle Tie
(931) 583-0397 | support@farmersfriendllc.com
S T E P 2
1.
Attach the Straight Lower Handle Tie
and the Angled Lower Handle Tie to the
square ends of the rectangular bars as
shown. (Attach the straight handle tie to
the short bar and the angled handle tie to
the long bar.)
2.
Tighten the bolts just enough so that the
bars are firmly attached. Do not over
tighten.
1⁄4" Oversize Washer
Angled Lower Handle Tie
1⁄4"-20 Nut
7
