Farmers Friend Pyroweeder Assembly And Instruction Manual page 11

O P T I O N A L T W O - T A N K B R A C E S
Attaching Auxiliary Tank Braces
PARTS NE E DE D
•
2 × Auxiliary Tank Braces
•
4 × 3⁄8"-16, 3 1⁄2" Carriage Bolts
TOOLS NE E DE D
•
9⁄16" wrench or Pyroweeder wrench

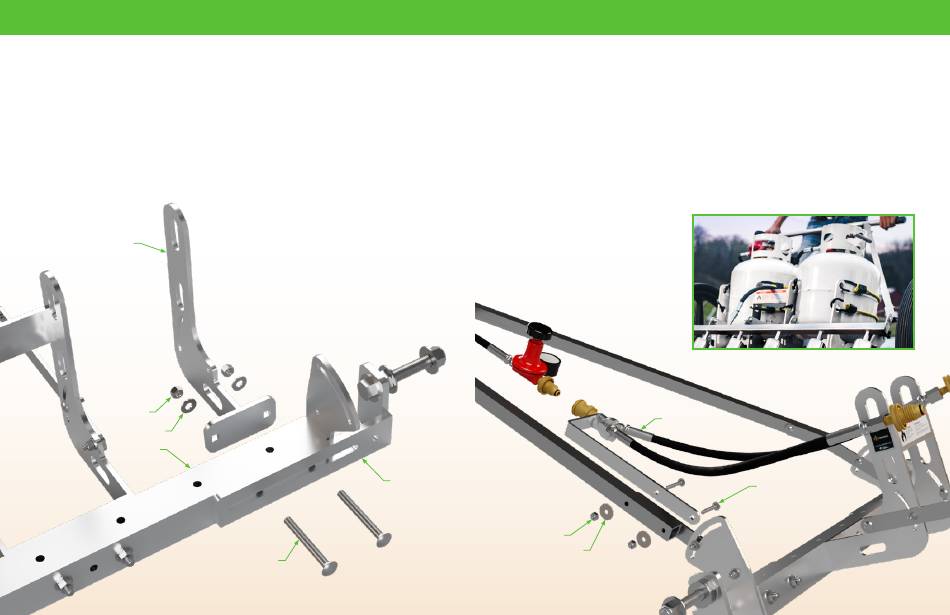

Auxiliary Tank Brace
3/8"-16 Nut
3/8" Washer
Main Bar
(Tool Bar)
3/8"-16, 3 1/2" Carriage Bolt
18
Well-designed, quality tools and equipment
1.
Remove the four 3⁄8"-16, 3" Carriage Bolts
that attach the axle bars to the Main Bar of
the Tool Cart. Save the nuts and washers
to re-attach the the axle bars. The Axle
Bars are temporarily detached at this point.
2.
Place the two Auxiliary Tank Braces on the
front side of the Main Bar as shown.
3.
Attach the Auxiliary Tank Braces using the
four 3⁄8"-16, 3 1⁄2" Carriage Bolts (replacing
the bolts that you removed). Use the nuts
and washers saved earlier to re-attach the
Axle Bars and the Auxiliary Tank Braces.
4.
Tighten the four nuts just enough so that
the Auxiliary Tank Braces are secure and
the Axle Bars remain fixed in alignment
with the Main Bar.
Axle Bar
| farmersfriendllc.com
O P T I O N A L T W O - T A N K A D A P T E R
Attaching Two-Tank Adapter
PARTS NE E DE D
•
1 × Two-Tank Adapter
•
2 × 1⁄4"-20, 1 3⁄4" Carriage Bolts
TOOLS NE E DE D
•
7⁄16" wrench or Pyroweeder wrench
Two-Tank Adapter
1/4"-20 Nut
1/4" Oversize Washer
(931) 583-0397 | support@farmersfriendllc.com
1.
Remove the two 1⁄ 4 "-20, 1 1⁄2" Carriage
Bolts connecting the straight-side bar to
the lower handle tie. Replace them with
the supplied 1⁄ 4 "-20, 1 3⁄ 4 " Carriage Bolts,
connecting the Two-Tank Adapter to the
Pyroweeder as shown.
1/4"-20, 1 3/4" Carriage Bolt
19
