Parts List - Signature Hardware Freestanding Tub Faucet Set Installation Instructions

7. Close the shut-off valves and briefly turn on the main water supply to check for leaks. If leakage occurs, tighten
the connections with an adjustable wrench as necessary. If problems persist, contact Customer Service.
8. Apply thread sealant to the outlets on the back of the faucet body. Attach the faucet to the upper riser pipes and
tighten the slips nuts to secure. Allow sealant to cure for 24 hours before use.
9. Attach the hand shower hose and rubber washers to the shower cradle outlet and hand-held shower. Place the
hand-held shower in the cradle.
10. Turn on the main water supply and open the shut-off valves.
11. To remove debris, turn the faucet on and allow the water to run through the spout for approximately 60 seconds.
Divert the water to the hand shower hose and allow the water to flow for approximately 60 seconds. Check to
make sure that all connections are tight.

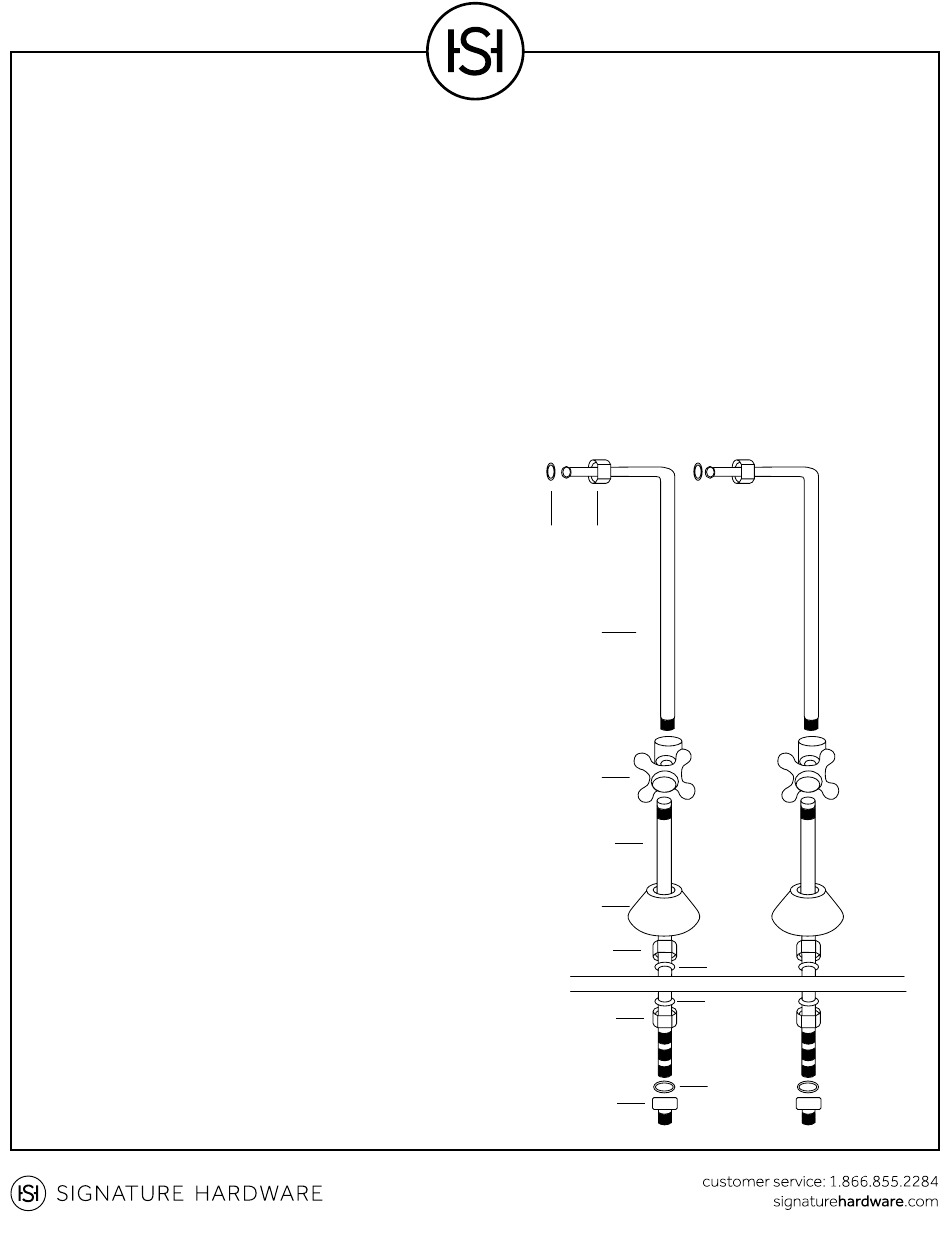

PARTS LIST:

A. (2) Rubber Washer
B. (2) Slip Nut
C. (2) Upper Riser Pipe
D. (2) Straight Stop Valve
E. (2) Lower Riser Pipe
F. (2) Bell Flange
G. (2) Lock Nut
H. (2) Rubber Washer
I. (2) Metal Washer
J. (2) Lock Nut
K. (2) Rubber Washer
L. (2) NPT Adapter
A B
C
D
H
E
F
G
J
L
Freestanding Tub Faucet Set Installation Instructions
C
H
Floor
I
K
2
