TUB WALL-MOUNT FAUCET SET
INSTALLATION INSTRUCTIONS
Before installing, read entire installation instructions. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install. Contact Customer
Service at 1-866-855-2284. If you need assistance or have questions while installing your faucet set, contact Customer
Service.
We recommend consulting a professional if you are unfamiliar with installing bathroom fixtures and plumbing. Signature
Hardware accepts no liability for any damages to the floor, walls, plumbing or for personal injury during installation.
TOOLS AND MATERIALS:
Adjustable Wrench
Damp Cloth
Pipe Wrench
WATER SUPPLY INSTALLATION
1. Slide the bell flanges (I) over the copper pipes at the finished floor.
2. Place thread sealant or plumber's tape on the copper pipes. Attach the
straight stop valves (F) with the provided compression nuts (H) and
ferrules (G).
3. Slide the remaining compression nuts (D) onto the supply tubes.
4. Place the supply tubes (C) and ferrules (E) into the straight stop valves
and tighten the compression nuts.
5. Close the straight stop valves and briefly turn on the main water supply to
check for leaks. If leakage occurs, tighten the connections with an adjust-
able wrench as necessary. If problems persist, contact Customer Service.
6. Install the tub faucet according to the Faucet Installation section.

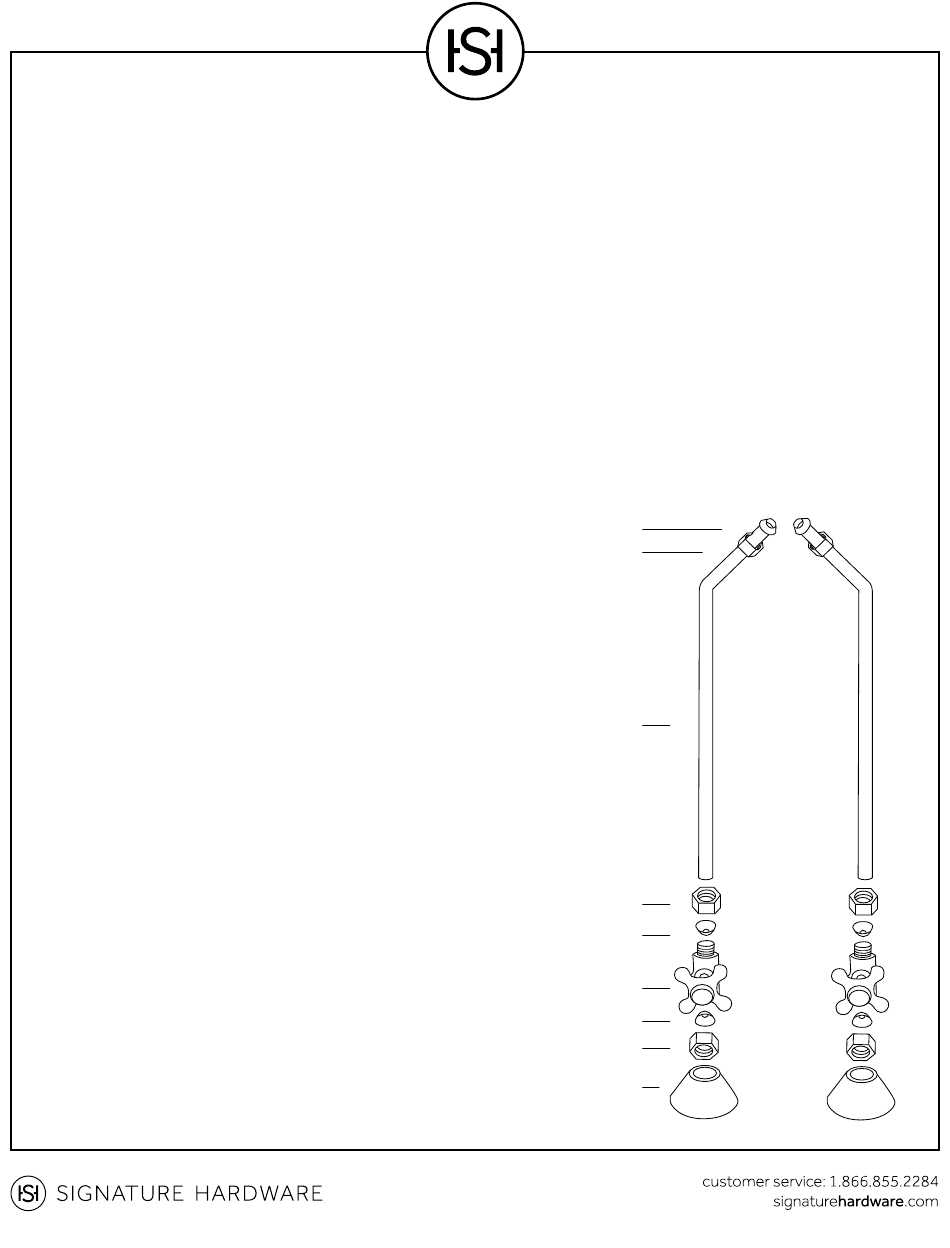

PARTS LIST
A. (2) Rubber Cone Washer
B. (2) Slip Nut
C. (2) Supply Tube
D. (2) Compression Nut
E. (2) Ferrule
Basin Wrench
Pliers
Hacksaw
F. (2) Straight Stop Valve
G. (2) Ferrule
H. (2) Compression Nut
I.
(2) Bell Flange
Plumber's Tape or Thread Sealant
Screwdrivers (Phillips and Flat Head)
A
B
C
D
E
F
G
H
I
Tub Wall-Mount Faucet Set Installation Instructions
1
