P E N D L E T O N

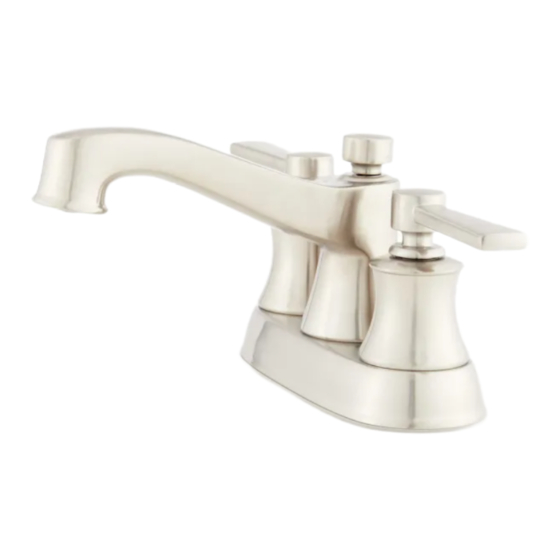

CENTERSET BATHROOM FAUCET
GRIFO DE BAÑO CENTERSET PENDLETON
SKU: 948568
BEFORE YOU BEGIN
We recommend consulting a professional if you are
unfamiliar with installing plumbing fixtures. Signature
Hardware accepts no liability for any damage to the
faucet, plumbing, sink, counter top, or for personal
injury during installation.
Observe all local plumbing and building codes.
Unpack and inspect the faucet for shipping damage.
If any damage is found, contact our Customer
Relations team at 1-800-221-3379.
ANTES DE COMENZAR
Le recomendamos que consulte a un profesional si no
sabe cómo instalar accesorios de plomería. Signature
Hardware no asume ninguna responsabilidad con
respecto a los daños causados al inodoro, sistema de
plomería, suelo o daños personales durante
la instalación.
Cumpla con todas las normas locales de plomería y
construcción.
Retire el inodoro del empaque y verifique si se
produjeron daños durante el envío. Si encuentra algún
daño, comuníquese con nuestro equipo de Servicio al
cliente al 1-800-221-3379.
GETTING STARTED
Ensure that you have gathered all the required
materials that are needed for the installation.
CÓMO COMENZAR
Asegúrese de haber reunido todos los materiales
necesarios para la instalación.
TOOLS AND MATERIALS:
HERRAMIENTAS Y MATERIALES:
Basin Wrench
Adjustable Wrench
Llave de grifo
Llave Ajustable
Safety Glasses
Gafas de seguridad
suministro flexible
1
Plumbers Tape
Cinta Selladora
Para Rosca
2 Flexible
Silicone Sealant
Supply Line
(100% Neutral Cure)
2 Línea de
Sellador de silicona
(100% curado neutro)
REVISED 12/12/2019
CODES: SHWSCPT400
1.800.221.3379
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Signature Hardware Pendleton 948568
Summary of Contents for Signature Hardware Pendleton 948568
- Page 1 P E N D L E T O N CENTERSET BATHROOM FAUCET GRIFO DE BAÑO CENTERSET PENDLETON SKU: 948568 BEFORE YOU BEGIN TOOLS AND MATERIALS: HERRAMIENTAS Y MATERIALES: We recommend consulting a professional if you are unfamiliar with installing plumbing fixtures. Signature Hardware accepts no liability for any damage to the faucet, plumbing, sink, counter top, or for personal injury during installation.
- Page 2 P E N D L E T O N CENTERSET BATHROOM FAUCET GRIFO DE BAÑO CENTERSET PENDLETON SKU: 948568 INSTALLATION 3. Make connections to water lines. Use 1/2" IPS faucet connections (2) or use supply line coupling nuts INSTALACIÓN (3) with 3/8" O.D. ball-nose riser (1). Use wrenches to tighten connections.
- Page 3 P E N D L E T O N CENTERSET BATHROOM FAUCET GRIFO DE BAÑO CENTERSET PENDLETON SKU: 948568 4. To install the drain, remove stopper (1) and flange 5. Apply silicone to underside of flange (2). Insert body (2). Screw brass nut (3) all the way down. Push plastic (1) into drain hole from below sink.
- Page 4 P E N D L E T O N CENTERSET BATHROOM FAUCET GRIFO DE BAÑO CENTERSET PENDLETON SKU: 948568 6. Install horizontal rod (2) and stopper (3) as 8. After installation is complete, remove the aerator non-removable (4). Hand tighten pivot nut (1). (1) with a coin (2) to flush the water lines.
- Page 5 P E N D L E T O N CENTERSET BATHROOM FAUCET GRIFO DE BAÑO CENTERSET PENDLETON SKU: 948568 9. If faucet leaks from spout, shut off the water supplies and replace the cartridge. Note: Install cartridge correctly for proper handle rotation.
