Sealing - MERLYN MB3 2 Panel Curved Bath Screen Installation Manual

7. Fit shelf glass bracket to glass, level shelf in both directions and mark fixing point on wall.Use 6mm masonry bit and then insert
the 2 wall plugs 2SP12 and fix the shelf wall brackets MOBY006 to the wall with screws 2SY51.
MOBY005 onto the glass.Insert the perspex shelf
grubscrews.Fig 6.
FIG 6
8. Fix the towel rail BSYS025C. Fig 7
FIG 7
8. Fix the wall profile cover MOBY002L/R.

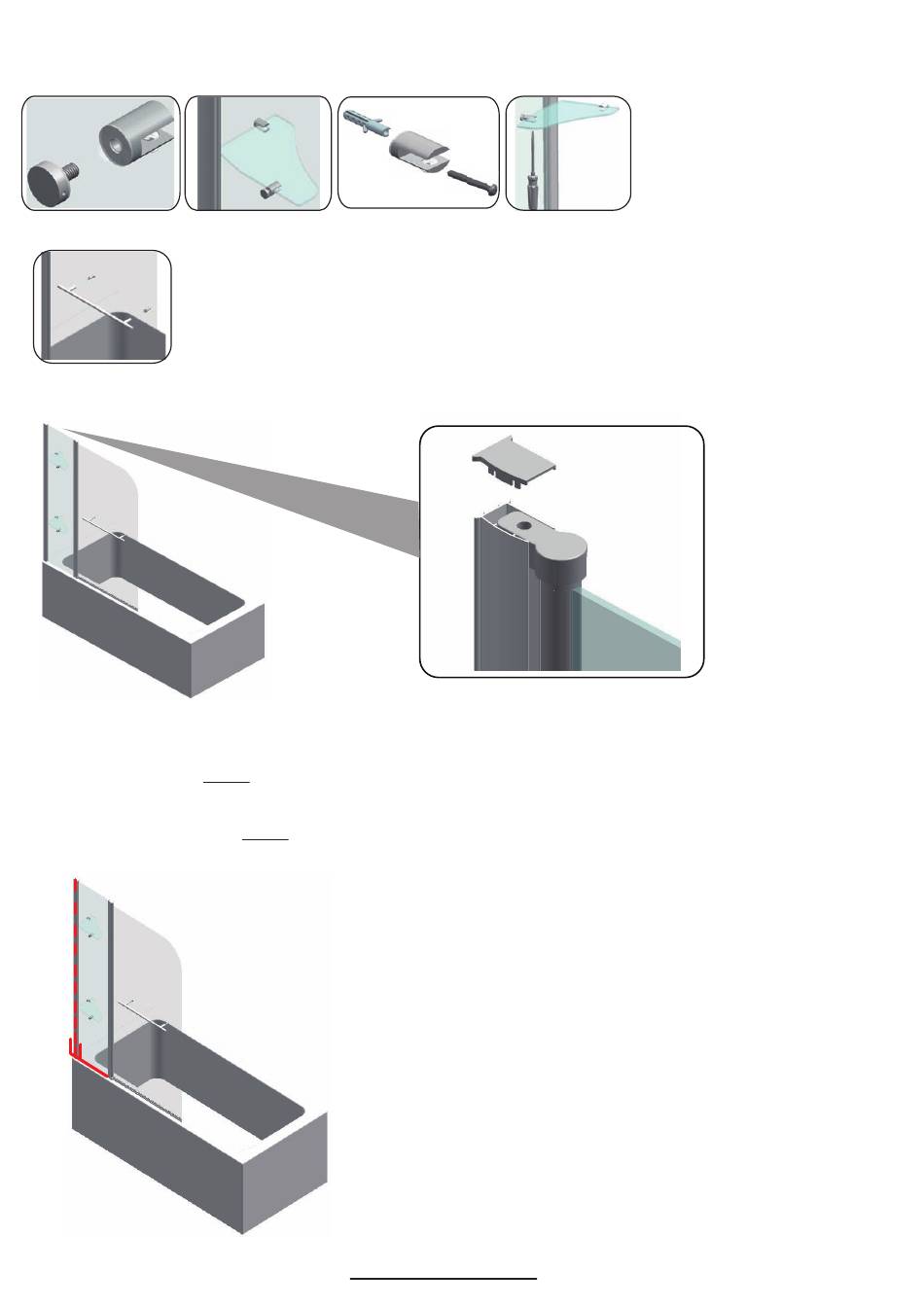

Sealing. Fig 6
Inside :
(dashed line)
When installation is complete seal the joint between the wall profile and the wall, top to bottom on the
inside only. DO NOT SEAL where the wall profile sits on the Bath.
Outside
(full line)
From outside the screen, SEAL where the wall profile and hinge bracket sit on the bath. Seal 50mm up
where the wall profile meets the wall and where the hinge upright and the wall profile over lap.
MOBY004 into the shelf wall bracket and shelf glass bracket.Then tighten
FIG 6
FIG 8
www.merlynshowering.com
Tighten shelf glass bracket
Top view
FIG 8
