TECHNICAL LITERATURE

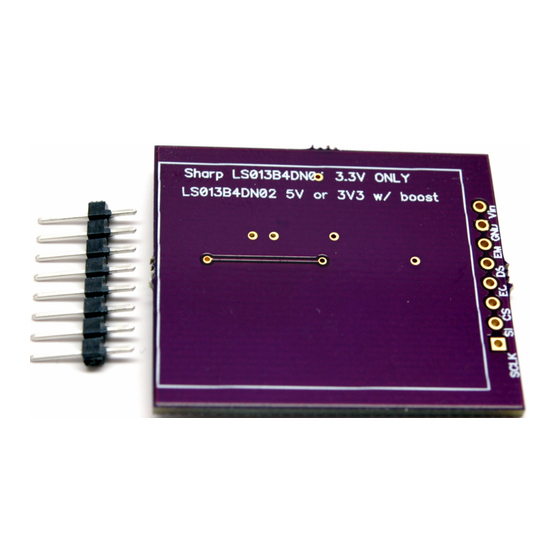

TFT-LCD Module
Model No. LS013B4DN02
The technical Literature is subject to change without any prior
notice for the purpose of product improvement.
Please contact Sharp or its representative before designing your
product based on this literature.
Mobile Liquid Crystal Display Group
SHARP CORPORATION
For
Notice
No.
LCY-12T09303B
July. 21
Date
st
2009

Advertisement

Table of Contents
loading

Related Manuals for Sharp LS013B4DN02

Summary of Contents for Sharp LS013B4DN02

  • Page 1 Model No. LS013B4DN02 Notice The technical Literature is subject to change without any prior notice for the purpose of product improvement. Please contact Sharp or its representative before designing your product based on this literature. Mobile Liquid Crystal Display Group SHARP CORPORATION...
  • Page 2 ○ These specification sheets are the proprietary product of SHARP CORPORATION ("SHARP") and include materials protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in any form or by any means, electronic or mechanical, for any purpose, in whole or in part, without the express written permission of SHARP.
  • Page 3 SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 [For handling and system design] (1) Handle with care as glass is used in this LCD panel. Dropping or contact against hard object may cause cracks or chips. (2) Do not scratch the surface of the UV protection film as it is easily damaged. ...
  • Page 4 SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 Humidity Humidity in work area relates to surface resistance of the persons or objects that generate electrostatics, and it can be manipulated to prevent electrostatic charge. Humidity of 40% or lower increases electrostatic earth resistance and promotes electrostatic charging. Therefore, the humidity in the work area should be kept above 40%.
  • Page 5 MODEL No. PAGE LCY-12T09303B LS013B4DN02 [For operating LCD module] (1) Do not operate the LCD panel under outside of electrical specification. Otherwise LCD panel may be damaged. (2) Do not use the LCD panel under outside of specified driving timing chart. Otherwise LCD panel may not have proper picture quality.
  • Page 6 SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 [Other Notice] (1) Operation outside specified environmental conditions cannot be guaranteed. (2) As power supply (VDD-GND、VDDA-GND) impedance is lowered during use, bus controller should be inserted near LCD module as much as possible.

  • Page 7: Table Of Contents

    SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 Contents 1. Outline ....................................7 2. Characteristics ..................................7 3. Mechanical Specification ..............................7 4. Input terminal names and functions ...........................8 5. Absolute Maximum Rating ..............................9 6. Electrical characteristics..............................10 7. Optical characteristics................................21 8. Module outline ..................................23 9.

  • Page 8: Outline

    SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 1. Outline This TFT-LCD module is a reflective active matrix memory liquid crystal display module with CG silicone thin film transistor. Module outline is indicated in fig 8-1. 2. Characteristics ・  Reflective panel of white and black with aspect ratio of 1:1 ・ ...

  • Page 9: Input Terminal Names And Functions

    SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 4. Input terminal names and functions     Table4-1                          Terminal symbol I／O Function Remark Serial clock signal SCLK INPUT Serial data input signal...

  • Page 10: Absolute Maximum Rating

    SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 5. Absolute Maximum Rating Table5-1  ( GND＝0V ) Item Symbol MIN. MAX. Unit Remark Power Analog VDDA -0.3 ＋5.8 supply Logic -0.3 [Remark5-1] ＋5.8 voltage Input signal voltage(high) [Remark5-2] Input signal voltage(low) -0.3 ℃...

  • Page 11: Electrical Characteristics

    SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 6. Electrical characteristics 6-1) TFT LCD panel drive Table6-1  Recommended operating Condition       VSS(GND)＝0V、Ta＝＋25℃ Item symbol MIN. TYP. MAX. Unit Remark Power supply Analog VDDA ＋4.8 ＋5.0 ＋5.5 ＋4.8 ＋5.0 ＋5.5...
  • Page 12 SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 6-2) Power supply sequence On Sequence Normal operation Off sequence ③※1 ④※1 ① ② ⑤ ⑥ ⑦ VDD/VDDA（5V） DISP Normal operation EXTCOMIN Normal operation ※2 ※2 Normal operation ※2 ※2 Others ※Refer to timing chart and AC timing characteristics for detail ※1 ③...
  • Page 13 SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 6-3) Input signal characteristics Table6-3-1 VDDA=＋5.0V、VDD=＋5.0V、GND=0V、Ta=25℃ Item Symbol Unit Remark Frame frequency fSCS Clock frequency fSCLK Vertical Interval 16.66 1000 COM Frequency fCOM Table 6-3-2 VDDA=＋5.0V、VDD=＋5.0V、GND=0V、Ta=25℃ Item Symbol Unit Remark SCS Rising time...
  • Page 14 SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 SCS, SI, SCLK signal twSCSH twSCSL trSCS tsSCS thSCS tfSCS trSI tfSI tsSI thSI twSCLKH twSCLKL SCLK trSCLK tfSCLK EXTCOMIN signal fEXTCOMIN EXTCOMIN twEXTCOMINH trEXTCOMIN tfEXTCOMIN DISP signal DISP trDISP tfDISP ※SCS,SI,SCLK、DISP、EXTCOMIN: 3V input voltage...
  • Page 15 SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 6-4) Power consumption (Average) Table6-4                                                    Ta＝25℃ Item Symbol...
  • Page 16 SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 6-5) Input Signal Timing Chart 6-5-1 Data update mode (1 line)     Updates data of only one specified line. (M0=”H”、M2＝”L”) twSCSL twSCSH thSCS tsSCS M0 M1 M2 DMYDMYDMYDMYDMYAG0 AG1 AG2 AG3 AG4 AG5 AG6 DMY D1 D2 D3 D4...
  • Page 17 SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 6-5-2 Data Update Mode (Multiple Lines)     Updates arbitrary multiple lines data. (M0=”H”、M2＝”L”) twSCSH tsSCS DUMMY DATA(don't care) tsSI thSI twSCLKL twSCLKH SCLK Mode selection period Gate line address period Data transfer period...
  • Page 18 SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 6-5-3 Display Mode   Maintains memory internal data (maintains current display). (M0=”L”、M2＝”L”) twSCSH twSCSL tsSCS thSCS DUMMY DATA(don't care) DUMMY DATA(don't care) thSI tsSI SCLK Mode selection Data transfer period period (More than 13ck) (3ck) M0: Mode flag.
  • Page 19 SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 6-5-4 All Clear Mode   Clears memory internal data and writes white. (M0=”L”、M2＝”H”) twSCSH twSCSL tsSCS thSCS DUMMY DATA(don't care) DUMMY DATA(don't care) tsSI thSI SCLK Mode selection Data transfer period period (More than 13ck) (3ck) M0: Mode flag.
  • Page 20 SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 6-5-5 COM Inversion   There are two types of inputs, COM signal serial input (EXTMODE=”L”) and external COM signal input (EXTMODE=”H”). EXTMODE=“L” ※1 ※1 ※1 fCOM ※2 ※2 M1：LC polarity inversion flag: If M1is "H" then VCOM="H" is output. If M1 is "L" then VCOM="L" is output.
  • Page 21 SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 6-6) Input Signal and Display, Gate address(Line) Setting Data position in display〔H,V〕 P96,L1 P1,L1 P2,L1 P3,L1 P1,L2 P2,L2 P1,L3 Display side up P1,L96 P96,L96 ゲートラインアドレス設定 Gate line address setting ライン Line ・ ・...

  • Page 22: Optical Characteristics

    SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 7. Optical characteristics   Table 7-1 Ta=25℃ Item Symbol MIN. TYP. MAX. unit Remark Viewing angle θ21,θ22 °(degree) [Remark7-1] CR≧3 θ11 °(degree) θ12 °(degree) Contrast ratio [Remark7-2､3] Reflecivity ratio [Remark7-3] Response time Rise τr...
  • Page 23 SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 [Remark7-1] Defintion of Viewint Angle Normal Line 法線 Δθ22 Δθ11 Δθ12 Δθ21 ６時方向 6 o’clock direction [Remark7-2] Defintion of Contrast Retio Reflection intensity in white display Contrast ratio(CR) ＝ Reflection intensity in black display [Remark7-4] Respons time (Change in reflection ratio) It’s difined by the time change of optical receiver output when signal is input to display white or black...

  • Page 24: Module Outline

    SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 8. Module outline 8-1) Outline dimention of the 1.3” （96×96）  panel with FPC type                 fig.8-1 fig. 8-2       ＜Recommended Connector＞    SMK (Bottom Contact) FP12 Series: CFP-4610-0150F...

  • Page 25: External Capacitors

    SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 9. External capacitors     Fig. 9-1  External capacitor recommendation capacity value               ＜Recommended capacity value＞ C1：DISP- VSS: rank B   0.1uF Ceramic capacitor C2：VDDA- VSS: rank B  1uF Ceramic capacitor C3：VDD- VSS: rank B ...

  • Page 26: External Power Supply Circuit

    SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 10. External Power Supply Circuit An external power supply circuit is necessary to drive the Pixel Memory LCD with the 3V battery. Table 1-1 shows power supply IC of the recommendation. Table 1-1...

  • Page 27: Packaging

    SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 11. Packaging 11-1) Serial number (Ink-jet print) Will be indicated on serial number label as indicated in Figure 11-1 outline dimension figure. Model number LS013B4DN02 Print structure 9312AD00001FA Back Display side up side up  ...
  • Page 28 SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 11-3) Packaging       Fig. 12-2 Packaging Form...

  • Page 29: Reliability Test Conditions

    SPEC No. MODEL No. PAGE LCY-12T09303B LS013B4DN02 12. Reliability Test Conditions 12-1) Reliability test items Table12-1 Test Item Test condition Remark High temperature storage test Ta=80degrees Celsius              240h Ta=35degrees Celsius 240h Low temperature storage test High temperature and high humidity Tp=40degrees Celsius/95%RH ...
