4.4.2.10.

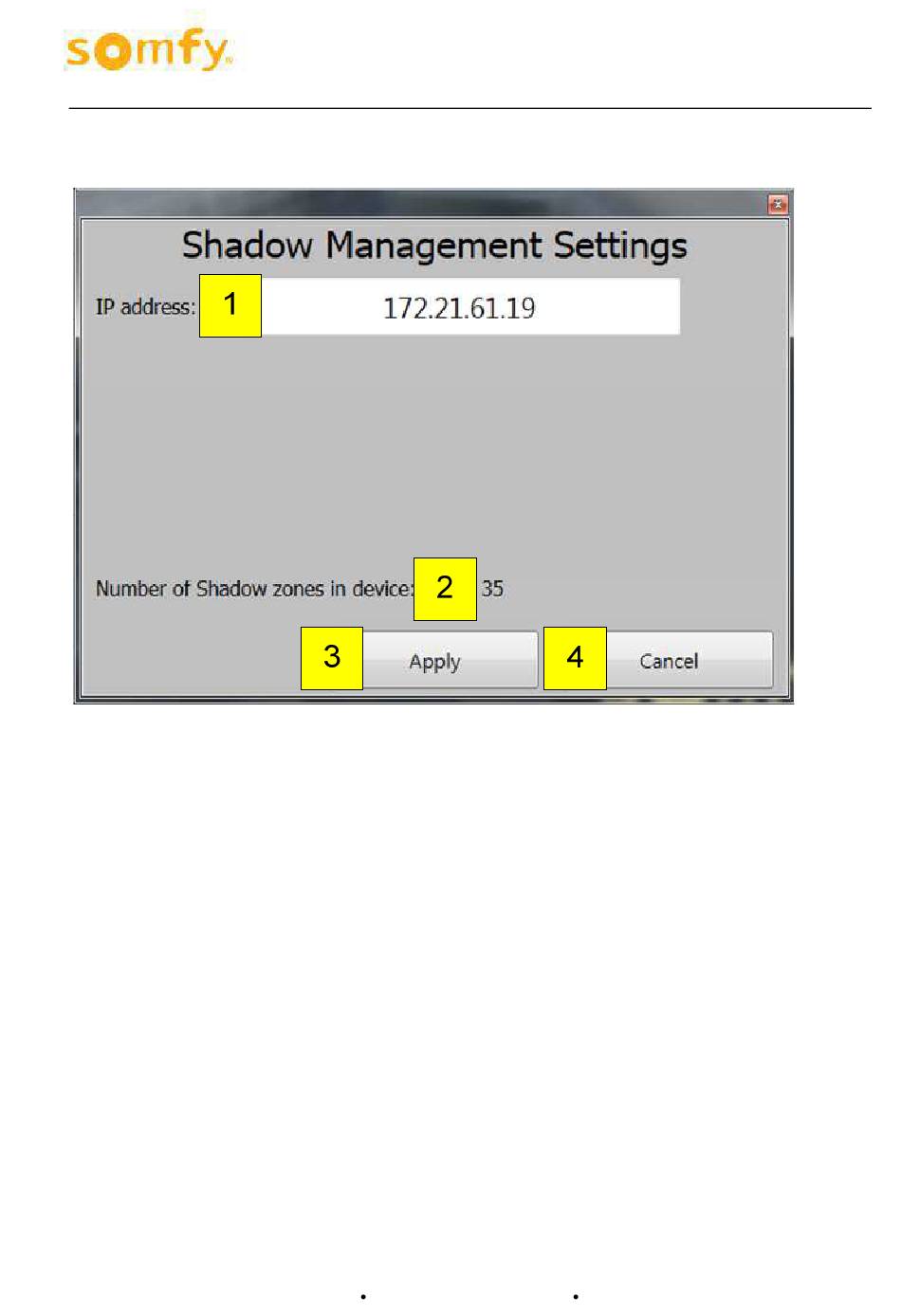

Shadow Management

Define the following sensor parameters:

1. Select "IP Address of the Shadow Device"

a. Background colour white: IP connection between KNX and Master Control and "Shadow

Device" in order

b. Background colour red: no IP connection between KNX Master Control and "Shadow De-

vice", e.g.with incorrect entry of IP address

2. Display of the active shadow area in "Shadow Device"

3. "Apply" to take on the setting

4. "Cancel" without taking on the setting

The KNX Master Control and the "Shadow Device" synchronize themselves once per minute based on

date and time of the KNX Master Control.

For further details see the operating instructions of the "Shadow Device"

animeo KNX Master Control W2/W8

Manual

31. March 2017

41/109
