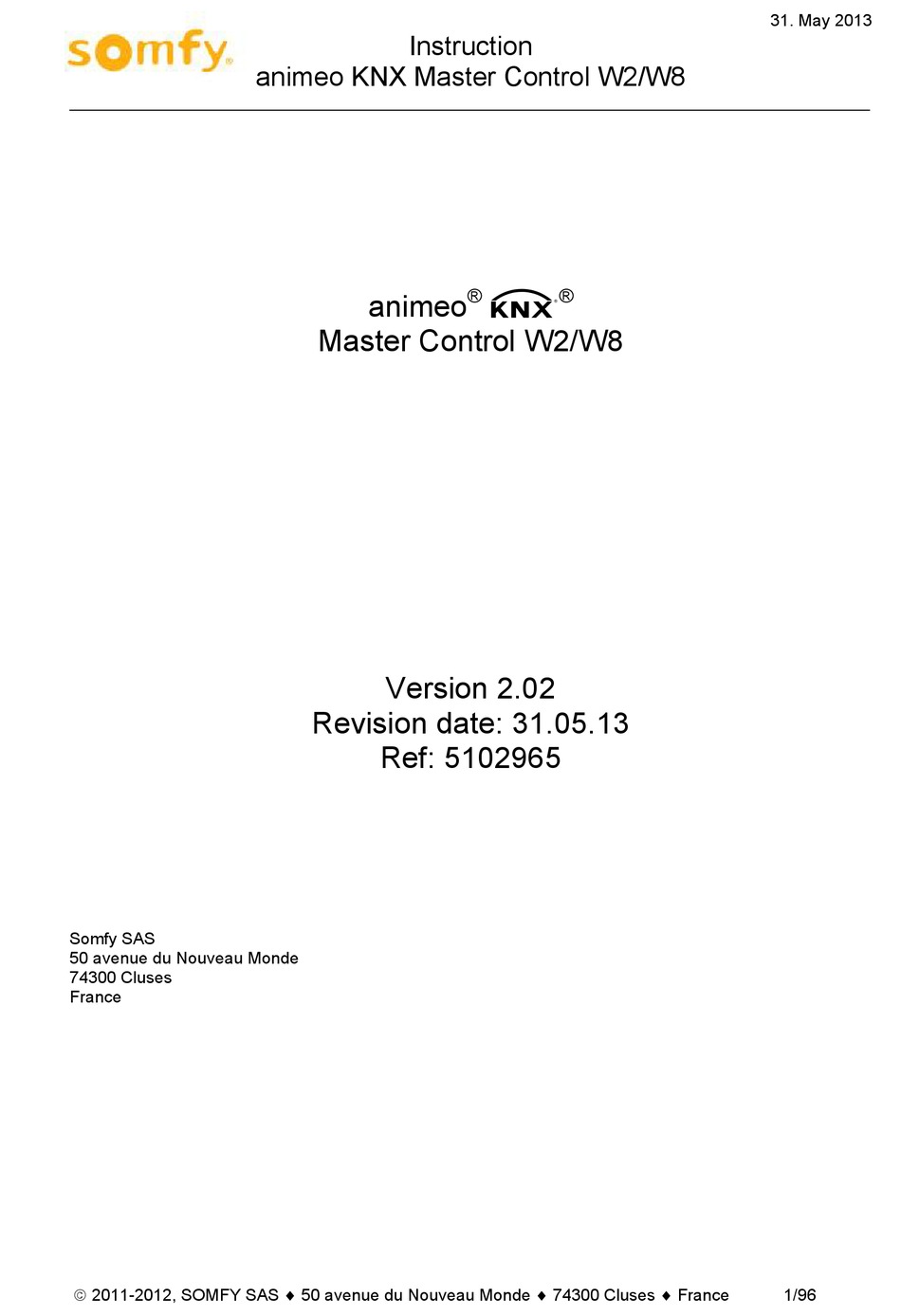

Instruction
animeo KNX Master Control W2/W8
®
®
animeo
D
Master Control W2/W8
Version 2.02
Revision date: 31.05.13
Ref: 5102965
Somfy SAS
50 avenue du Nouveau Monde
74300 Cluses
France
© 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France
1/96

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the animeo Master Control W2 and is the answer not in the manual?

Questions and answers

Related Manuals for SOMFY animeo Master Control W2

Summary of Contents for SOMFY animeo Master Control W2

  • Page 1 KNX Master Control W2/W8 ® ® animeo Master Control W2/W8 Version 2.02 Revision date: 31.05.13 Ref: 5102965 Somfy SAS 50 avenue du Nouveau Monde 74300 Cluses France © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 1/96...

  • Page 2: Table Of Contents

    5.5. Importing the symbol data ........................ 69 5.6. Operational elements of the ETS3 plug-in ..................71 5.6.1. Main menu ..........................71 5.6.2. Toolbar ............................ 73 © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 2/96...
  • Page 3 7.4. New start ............................91 Operating Switch ..........................92 Technical data ..........................93 10. Contact ............................. 94 10.1. Internet............................94 10.2. Addresses ............................ 94 © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 3/96...
  • Page 4 Before starting up it is necessary to follow the safety instructions in these instruction. SOMFY cannot be held liable for defects and damages when these have been caused as a result of not following instructions (wrong installation, incorrect service etc.). Establishing, testing and starting up of the equipment is permitted only by a qualified person (in accordance with VDE 0100).

  • Page 5: Description Of Functions

    (PDF format) KNX product data base and symbols file • A cross-over cable for direct communication between PC and animeo KNX Master Control. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 5/96...

  • Page 6: Connection Diagrams

    31. May 2013 Instruction animeo KNX Master Control W2/W8 1.3. Connection diagrams 1.3.1. Connection diagram animeo KNX Master Control W2 version with Compact Sensor © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 6/96...

  • Page 7: Connection Diagram Animeo Knx Master Control W2 Version With Outside Sensor Box

    31. May 2013 Instruction animeo KNX Master Control W2/W8 1.3.2. Connection diagram animeo KNX Master Control W2 version with Outside Sensor Box © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 7/96...

  • Page 8: Connection Diagram Animeo Knx Master Control W8 Version

    Max.: 4 x 2.5 mm²/13 AWG Wind Sensor Min.: 2 x 0.6 mm/22 AWG 500 m/1650 ft unheated Max.: 2 x 2.5 mm²/13 AWG © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 8/96...

  • Page 9: Checking The Connections

    LED state in the table. If they do not match, the connection must be checked. 1.4.1. Checking the KNX Master Control connections *Module 2 only available with animeo KNX Master Control W8, ref. 1860193. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 9/96...
  • Page 10 Module 3: RS485 connection A: green (If Outside Sensor Box or Compact Sensor B: green is connected to network) C: OFF D: green, blinking © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 10/96...

  • Page 11: Checking The Outside Sensor Box Connection

    H: green 1.4.2. Checking the Outside Sensor Box connection 1.4.2.1. COMM LED (RS 485 sensor bus) Connection LED State Outside Sensor Box COM: yellow, blinking © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 11/96...

  • Page 12: Software Installation

    . May 2013 nstructio anime eo KNX M Master C Control W2/W8 Soft tware e Insta allatio 2.1. Requ uired s softwa Before y you start with h the configur ration of the project, you must install the following g software on n your compute •...
  • Page 13 . May 2013 nstructio anime eo KNX M Master C Control W2/W8 Enter an n IP address (e.g. 192.16 68.0.11) and the subnet m mask 255,255 5.0.0. Confirm your entry w with “OK” and d close the re emaining win ndows.

  • Page 14: Animeo Knx Operating Software

    Click on “connect” to start the communication with animeo KNX Master Control and to carry out the parameter settings online. Click on “close” to carry out the parameter settings off-line. 4.2. Input serial number in the Operating software © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 14/96...
  • Page 15 Should the animeo KNX Operating Software not be connected with the animeo KNX Master Control, the serial number can be also entered by hand in the software and saved. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 15/96...

  • Page 16: Software Overview

    File Project open Project save Project print Exit • Setting TCP/IP setting Languages Time format Units Set time Set password Set position Zones Sensors © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 16/96...

  • Page 17: Sensor Bar

    System data: Display of the sensor data, function data and user data (chapter 4.8.1) h. Error: Error message in the system (chapter 4.8.2) © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 17/96...

  • Page 18: Data Transfer

    Here, the application is closed. When exiting the program asks, provided that updates were carried out, whether these should be saved; this prevents data getting lost. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 18/96...

  • Page 19: Setting

    3. Manual selection of time zone, e.g. Germany is GMT+01:00h 4. “OK” for taking over of the setting; ”Cancel” without taking over the setting. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 19/96...
  • Page 20 Change or define new passwords. 4.4.2.7. Position Enter the position of the building (degree of longitude and degree of latitude) either as a number or in degrees. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 20/96...
  • Page 21 4.4.2.8.1. Special end product „Generic Venetian blind“ The special end product „Generic Venetian blind“ enables the optimal use of Venetian blinds even on slanted façades . © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 21/96...
  • Page 22 – 90° is the value 0, 90° is the value 255). If the definition is reversed, please choose the option „change slats orientation“. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 22/96...
  • Page 23 Upon activating Outside Sensor Box, the number of individual sensors has to be set in each sensor sub menu e.g wind, wind direction. 2. “Apply“ for taking on the setting. 3. “Cancel” for quitting without setting. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 23/96...
  • Page 24 A combination of heated and unheated sensors is not permitted. 4. Alias of wind sensor. 5. “Apply“ for taking on the setting. 6. “Cancel” for quitting without setting. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 24/96...
  • Page 25 Wind direction sensor is connected to the Outside Sensor Box. 3. Alias of wind direction sensor. 4. “Apply“ for taking on the setting. 5. “Cancel” for quitting without setting. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 25/96...
  • Page 26 Sun sensors are connected to the Outside Sensor Box. 3. Alias of sun sensor. 4. “Apply“ for taking on the setting. 5. “Cancel” for quitting without setting. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 26/96...
  • Page 27 Rain sensor is connected to the Outside Sensor Box. 3. Alias of rain sensor. 4. “Apply“ for taking on the setting. 5. “Cancel” for quitting without setting. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 27/96...

  • Page 28: Help

    F1. 4.4.3.2. Homepage In this sub point a browser is automatically started and opens the corresponding Somfy internet address automatically for further information. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France...
  • Page 29 2. Firmware version of the connected KNX Master Control W2 or KNX Master Control W8 3. Through “System info” you receive access to the system information of your computer. 4. “OK” to close the window. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 29/96...

  • Page 30: Status

    The state of the individual function is defined by its colour. The arrows appear during the delay time of the function to be performed. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 30/96...
  • Page 31 Frost/ice: The Frost alarm is triggered at temperatures below the threshold value. All carrier products in a zone go to the safety position (chapter 4.7.1.5). © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 31/96...

  • Page 32: Sensor Status

    In the register “sensors: wind, sun, rain” the sensor values are indicated which are directly in the KNX Master Control or are connected via the Outside Sensor Box. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 32/96...
  • Page 33 5. Details of the sensor function. When the sensor functions interference-free, “OK” appears in the LED display (green). With an interference “error” (red) will appear. 6. Eventual details of errors with sensor interference. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 33/96...

  • Page 34: Control

    10. Selection of desired angle which will be moved to after activating; “move to position” (not available with all end products). 11. Click to carry out the previously set value under position (point 9) or angle (point 10). © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 34/96...

  • Page 35: Locking Command

    Parameter: 1. Locking interface for the individual zones. 2. Selected zone names. 3. Locking interface for the whole building (all zones). © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 35/96...

  • Page 36: Setting

    8. Select rain, snow and frost/ice function (chapter 4.7.1.7), 9. Select zone timer function (chapter 4.7.1.8). 10. Select reset control to automatic (chapter 4.7.1.9.). © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 36/96...
  • Page 37 (4), before the wind function is deactivated. 7. Use KNX Object Low Prio only active in use with wind direction (chapter 4.7.1.2.1.). © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 37/96...
  • Page 38 6. The function wind direction uses the response times and delay times (5 and 6) of the wind function. 4.7.1.2.1. Use Of KNX Object Low Prio With “Use KNX Object Low Prio” will be two KNX objects (KNX.MC.Zone_Security_Low_Prio_Bit_OUT) and (KNX.MC.Zone_Security_High_Prio_Bit_OUT) active. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 38/96...
  • Page 39 In parallel a „1“ is sent to the KNX object KNX.MC.Zone_Sun-Function_Bit_OUT as soon as the sun function is active and a „0“ when the function is inactive. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 39/96...
  • Page 40 11. Position which is moved to with exceeding the on set value (4). 12. Angle, which is moved to with exceeding the on set value (4). Not available with all end products. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 40/96...
  • Page 41 10. “Apply” for taking on the setting. 11. “Cancel” for quitting without settings. 12. Graphic display of the end product. Setting is done under settings - zones (chapter 4.4.2.8). © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 41/96...
  • Page 42 13. Graphic display of the end product. Setting is done under settings – zones (chapter 4.4.2.8). 4.7.1.4.3. Suntracking with exterior vertical Venition blind (tilt only) © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 42/96...
  • Page 43 This function is only carried out if no other function with a higher priority is active. The corresponding KNX objects are KNX.MC.Zone_Position_UP_DOWN_1Byte_OUT, KNX.MC.Zone_Slat_Position_1Byte_OUT , and KNX.MC.Zone_Sun-Function_Bit_OUT. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 43/96...
  • Page 44 Angle: the angle which is moved to by not reaching the set points. Not in all carrier products available. 4. “Apply” for taking on the setting. 5. “Cancel” for quitting without settings. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 44/96...
  • Page 45 5. Delay time time span, during rain or snow is not detected any more, before the rain function or snow function is deactivated. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 45/96...
  • Page 46 Generally, the protective angle is 180 ° and the direction will be measured according to the orientation of the façade center. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 46/96...
  • Page 47 (2), click and drag this in the desired direction. Release the mouse button. The set time is displayed on the right beside the bar. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 47/96...
  • Page 48 KNX.MC.Zone_Position_UP_DOWN_1Byte_OUT “0-255”, the current calculated position. e. KNX.MC.Zone_Slat_Position_1Byte_OUT “0-255”, the current calculated angle. Not available in all end products. 4. Enable/disable time 1-3. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 48/96...
  • Page 49 7. “Copy”, activated parameters (4) are copied from the source to the destination. After successfully copying, these are displayed in green. 8. “Close”, to close the current window. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 49/96...

  • Page 50: Setting Of The Functions - Timer Via Knx Object

    2. Select “year timer (bit)” (chapter 4.7.2.1.). 3. Select “week timer (bit)” (chapter 4.7.2.2.). 4. Select “week timer (byte)” (chapter 4.7.2.3.). 5. Enable/disable timer. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 50/96...
  • Page 51 6. “Clear” to delete all set time intervals in this zone. 7. “OK” for taking on the setting. 8. “Cancel” for quitting without settings. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 51/96...
  • Page 52 1. 20 possible exception days. 2. Key with explanation. 3. “Apply” for taking on the setting. 4. “Cancel” for quitting without taking on settings. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 52/96...
  • Page 53 5. Displays the exception period under 3 and 4 6. “Apply” for taking on the setting. 7. “Cancel” for quitting without taking on settings. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 53/96...
  • Page 54 4. “Clear” to delete all set time intervals in this zone. 5. “OK” for taking on the setting. 6. “Cancel” for quitting without settings. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 54/96...
  • Page 55 4. Angle to which is moved after colour change white to green in the time line (1). Not available with all end products. 5. Angle 0° 90°. 6. Key with explanation. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 55/96...

  • Page 56: Energy Mode

    4. Select “sensor allocation“. 5. Activate/deactivate inside temperature sensor. 6. Activate/deactivate outside temperature sensor. 7. Display sun sensors activated under sun function 3.6.3.3 for this zone. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 56/96...
  • Page 57 7. Position, to which is moved to with activating the function (2). 8. Angle, to which is moved to with activating the function (2). © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 57/96...
  • Page 58 The corresponding KNX objects are KNX.MC.Zone_Energy_Saving_Bit_OUT[n], KNX.MC.Zone_Position_UP_DOWN_1Byte_OUT[n] and KNX.MC.Zone_Slat_Position_1Byte_OUT[n] whereby n stands for the corresponding zones 1-16. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 58/96...
  • Page 59 This function is only carried out if no other function with a higher priority is active. The corresponding KNX objects are KNX.MC.Zone_Energy_Saving_Bit_OUT[n], KNX.MC.Zone_Position_UP_DOWN_1Byte_OUT[n] and KNX.MC.Zone_Slat_Position_1Byte_OUT[n], whereby n stands for the respective selected zone 1-16. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 59/96...
  • Page 60 This function is only carried out if no other function with a higher priority is active. The corresponding KNX objects are KNX.MC.Zone_Energy_Saving_Bit_OUT[n] and KNX.MC.Zone_Position_UP_DOWN_1Byte_OUT[n], whereby n stands for the respective selected zone 1-16. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 60/96...
  • Page 61 8. Position, to which is moved to with activating the function. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 61/96...

  • Page 62: Log

    Current values of individual sensors, parameter updates and function states (active or inactive) are saved since the start of the project and are displayed here. 4.8.1.1. Protocolling sensors © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 62/96...
  • Page 63 2. Select month for the protocol to be displayed. 3. Date/time. 4. Name of function. 5. Details of zone. 6. Value (true = active, false = inactive). © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France 63/96...

  • Page 64: Log Errors

    1. Select month for the protocol to be displayed. 2. Date/time. 3. Type of error. 4. Error information. 5. Error. 6. Delete current protocol. 7. Update current protocol. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 64/96...

  • Page 65: Ets Programming

    “animeo KNX Master Control Operating Software” in the subdirectory: \KNX\Product Database KNX Master Control\. Select the file “KNXTP1-Terminal.vd4” and click on “open”. Select the database (TP1-module) and click on “import”. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 65/96...

  • Page 66: Paste Animeo Knx Master Control In Ets Project

    “find”. Now select the “TP1 modules” and click on “insert” to paste it into the project. After successfully inserting you can close the product finder. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 66/96...

  • Page 67: Programming Physical Addresses Of The Knx Terminal

    KNX terminal In the topology window, click with the right mouse button on the device “TP1 terminal” and you select the option “Download…“. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 67/96...
  • Page 68 Shortly afterwards, the green LED’s “C“, “H“ and “E“ will blink. The physical address of the KNX termi- nal has been programmed successfully when the green LED’s “E” and “H” are continuously lit. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 68/96...

  • Page 69: Importing The Symbol Data

    You will find the required symbol data file “KNX_Master_Control. SYM_XML” on the provided CD “animeo KNX Master Control Operating Software” in the subdirectory: \ETS\SYM-XML\ Select the file “KNX_Master_Control .SYM_XML” and click on “open”. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 69/96...
  • Page 70 The list of the communication objects and the properties of each object appear in the window. The following graphic interface shows all relevant data which are needed for the configuration. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 70/96...

  • Page 71: Operational Elements Of The Ets3 Plug-In

    ETS3 plug-in, e.g. defining new groups, are saved in the ETS3. These settings are relevant primar- ily for the ETS3. The menu point is only activated when updates are carried out. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 71/96...
  • Page 72 Print This prints out the current configuration. You can select between two options: Print based on group addresses: Print based on network variables: © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 72/96...

  • Page 73: Toolbar

    6. Exports a configuration (no SYM_XML file). 7. Imports the current configuration as an XML file (no SYM_XML file). 8. Activates the online help. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 73/96...

  • Page 74: Knx Data Types

    Tip: Only one data type can be given as a filter. Multiple selection in the data type window is not possible. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 74/96...

  • Page 75: Network Variables

    0 … 255 which can be set in this dialog. When the set address has already been assigned, you will be informed by the ETS3 plug-in. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 75/96...

  • Page 76: Selected Group Properties

    Per main group a maximum of 8 middle groups are available, per middle group up to 256 group addresses can be assigned. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 76/96...

  • Page 77: Functions Of The Ets3 Plug-In

    In the dialog box “link to group addresses”, the source network variables will be shown to the target group addresses. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 77/96...

  • Page 78: Configuring Network Variables And Communication Objects

    ETS, and a software reset of the IEC application. 5.7.2.1.2. Read on Reset The device is programmed to read the current value of the bus after the reset. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 78/96...
  • Page 79 ETS3 assigns the first assigned group address as a “sending group”. All available group addresses are displayed in the combo box and can be selected. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 79/96...

  • Page 80: Communication Objects

    Outside Sensor Box. Wind sensors 3 to 8 are connected to the KNX Master Control W8 (chapter 1.4). KNX.MC.Info_Wind_Speed_1Byte_OUT[2] KNX.MC.Info_Wind_Speed_1Byte_OUT[3] KNX.MC.Info_Wind_Speed_1Byte_OUT[4] KNX.MC.Info_Wind_Speed_1Byte_OUT[5] © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 80/96...
  • Page 81 “timer weekly byte” becomes OUT[1] active. They send “0” if the function becomes inactive (chapter 3.6.3.5). KNX.MC.Timer_Weekly_Slat_Position_1Byte_ OUT[2] KNX.MC.Timer_Weekly_Slat_Position_1Byte_ OUT[3] KNX.MC.Timer_Weekly_Slat_Position_1Byte_ OUT[4] © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 81/96...
  • Page 82 KNX Master Control understands it as KNX.MC.Zone_Key_Switch_Bit_IN[2] a locking command and sends "1" on the KNX.MC.Zone_Key_Switch_Bit_IN[3] object KNX.MC.Zone_Security_High_Prio _Bit_OUT (chapter 4.6.2). KNX.MC.Zone_Key_Switch_Bit_IN[4] KNX.MC.Zone_Key_Switch_Bit_IN[5] KNX.MC.Zone_Key_Switch_Bit_IN[6] © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 82/96...
  • Page 83 0 to 255 (e.g. posi- KNX.MC.Zone_Position_UP_DOWN_1Byte_O tion). UT[2] KNX.MC.Zone_Position_UP_DOWN_1Byte_O UT[3] KNX.MC.Zone_Position_UP_DOWN_1Byte_O UT[4] KNX.MC.Zone_Position_UP_DOWN_1Byte_O UT[5] KNX.MC.Zone_Position_UP_DOWN_1Byte_O UT[6] KNX.MC.Zone_Position_UP_DOWN_1Byte_O UT[7] KNX.MC.Zone_Position_UP_DOWN_1Byte_O UT[8] KNX.MC.Zone_Position_UP_DOWN_1Byte_O UT[9] KNX.MC.Zone_Position_UP_DOWN_1Byte_O UT[10] KNX.MC.Zone_Position_UP_DOWN_1Byte_O UT[11] © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 83/96...
  • Page 84 Per zone: when a low alarm function (e.g. KNX.MC.Zone_Security_Low_Prio_Bit_OUT[1 1 bit wind direction) is active, the objects send “1”. KNX.MC.Zone_Security_Low_Prio_Bit_OUT[2 KNX.MC.Zone_Security_Low_Prio_Bit_OUT[3 KNX.MC.Zone_Security_Low_Prio_Bit_OUT[4 KNX.MC.Zone_Security_Low_Prio_Bit_OUT[5 KNX.MC.Zone_Security_Low_Prio_Bit_OUT[6 KNX.MC.Zone_Security_Low_Prio_Bit_OUT[7 © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 84/96...
  • Page 85 If the object KNX.MC.Zone_Sun_Automatic_Bit_IN[1] 1 Bit receives “0”, the sun function is deacti- vated. KNX.MC.Zone_Sun_Automatic_Bit_IN[2] KNX.MC.Zone_Sun_Automatic_Bit_IN[3] KNX.MC.Zone_Sun_Automatic_Bit_IN[4] KNX.MC.Zone_Sun_Automatic_Bit_IN[5] KNX.MC.Zone_Sun_Automatic_Bit_IN[6] KNX.MC.Zone_Sun_Automatic_Bit_IN[7] KNX.MC.Zone_Sun_Automatic_Bit_IN[8] © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 85/96...
  • Page 86 If the function KNX.MC.Zone_Sun_Function_Bit_OUT[2] becomes inactive, "0" is sent (chapter KNX.MC.Zone_Sun_Function_Bit_OUT[3] 4.7.1.3). KNX.MC.Zone_Sun_Function_Bit_OUT[4] KNX.MC.Zone_Sun_Function_Bit_OUT[5] KNX.MC.Zone_Sun_Function_Bit_OUT[6] KNX.MC.Zone_Sun_Function_Bit_OUT[7] KNX.MC.Zone_Sun_Function_Bit_OUT[8] KNX.MC.Zone_Sun_Function_Bit_OUT[9] KNX.MC.Zone_Sun_Function_Bit_OUT[10] KNX.MC.Zone_Sun_Function_Bit_OUT[11] KNX.MC.Zone_Sun_Function_Bit_OUT[12] KNX.MC.Zone_Sun_Function_Bit_OUT[13] KNX.MC.Zone_Sun_Function_Bit_OUT[14] KNX.MC.Zone_Sun_Function_Bit_OUT[15] KNX.MC.Zone_Sun_Function_Bit_OUT[16] © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 86/96...

  • Page 87: Changing The Ip Address

    Open your web browser and enter the corresponding IP address of the animeo KNX Master Control (factory setting 192.168.0.2). Now change to “TCP/IP” in the left hand navigation bar. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 87/96...
  • Page 88 31. M May 2013 nstructio animeo o KNX M Master C Control W W2/W8 After clic cking, a new menu windo ow appears w which reques sts you to ent ter a user na ame and pas ssword. Please e enter as user r name admi in (small lette...

  • Page 89: Assigning Ip Address Via Address Selection Switch

    31. M May 2013 nstructio animeo o KNX M Master C Control W W2/W8 Now ent ter in the field d “Configurat tion Data“ un nder IP Addr ess, the new w desired IP a address and likewise the subn net mask and d confirm the e entry with “S...
  • Page 90 (configurable and 192.168.1 by default) and the value set for the DIP switch. The DHCP protocol is used to configure the IP parameters. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 90/96...

  • Page 91: New Start

    LED’s, “LINK”, “MS”, “NS”, “TXD/RXD” and “I/O” light up green (see also chapter 1.5.1.1). The animeo KNX Master Control has been successfully started and has taken on the new IP address. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 91/96...

  • Page 92: Operating Switch

    STOP or at RUN at any position of the mode selector switch. Restart the fieldbus controller. The operating mode is changed internally at the end of a PFC cycle. © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 92/96...

  • Page 93: Technical Data

    • Class A control function • Type 1 action • Pollution degree: 2 • Type X attachment • Method of attachment for non-detachable cords: screwless spring terminal © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 93/96...

  • Page 94: Contact

    Tel.: +86 (0) 2 162 809 660 www.somfy.com Tel.: +30 (0) 2 106 146 768 CYPRUS SOMFY Middle East Co. Ltd. www.somfy.com Tel.: +357 (0) 25 345 540 © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 94/96...
  • Page 95 Tel.: +965 (0) 9 889 467 SWEDEN LEBANON SOMFY Nordic AB SOMFY Lebanon www.somfy.se www.somfy.com.lb Tel.: +46 (0) 40 165 900 Tel.: +961 (0) 1 427 888 © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 95/96...
  • Page 96 UNITED KINGDOM SOMFY Ltd. www.somfy.co.uk Tel.: +44 (0) 1 133 913 030 SOMFY Systems Inc. www.somfysystems.com Tel.: +1 (0) 6 093 951 300 © 2011-2012, SOMFY SAS ♦ 50 avenue du Nouveau Monde ♦ 74300 Cluses ♦ France ♦ 96/96...

This manual is also suitable for:
