Clas Ohlson 98202 GB BS Instruction Manual

Wireless Doorbell
Art.no 18-5086 Model 98202 GB BS
36-7286 98202 EU
Please read the entire instruction manual before use and then save it for future
reference. We reserve the right for any errors in text or images and any necessary
changes made to technical data. In the event of technical problems or other
queries, please contact our Customer Services.
Safety
• Never subject the product to high temperatures, damp or dusty environments,
heavy vibrations or impacts.
• The indoor unit must not be exposed to rain or moisture.
• Never try to repair the product, dismantle or modify it in any way.

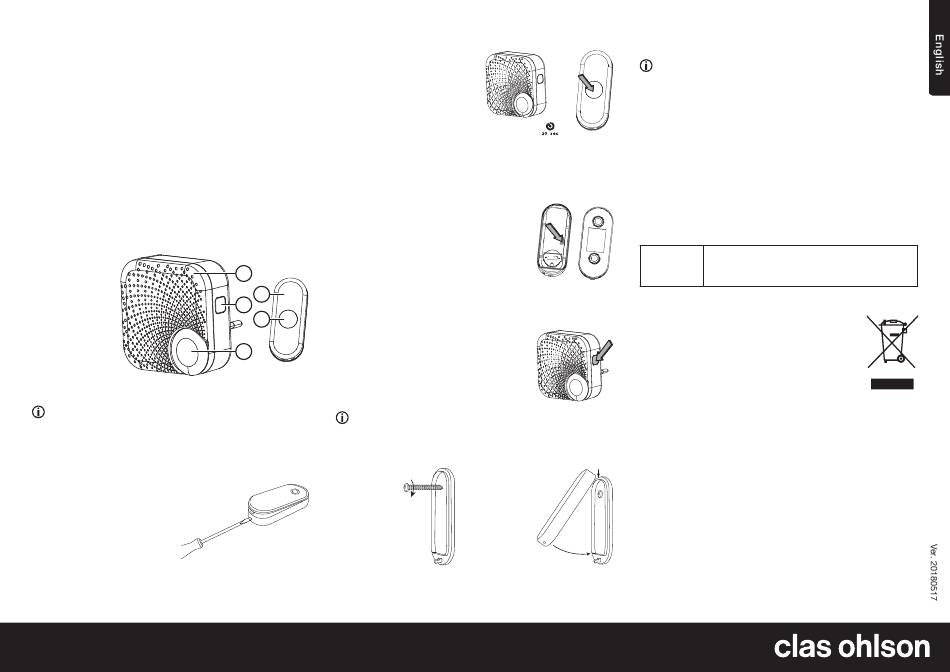

Buttons and functions

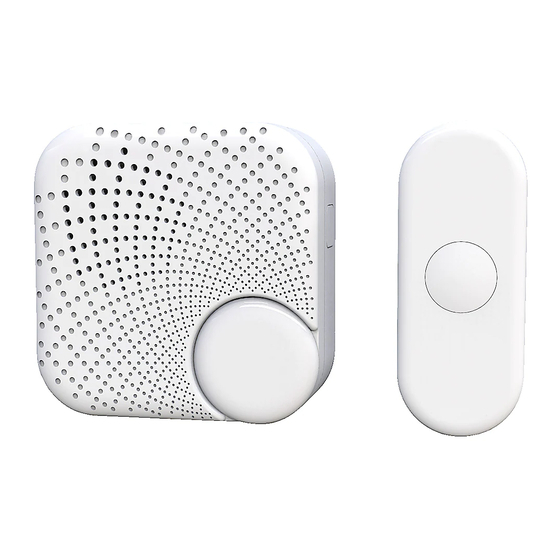

1. Doorbell/receiver
2. Button to select
the volume
3. LED indicator
4. Transmitter
5. Push Button Ring
Signal
Installation
Handy tip:
• 1 transmitter is included but you may connect an additional 7 transmitters
(sold separately).
• If you are connecting several transmitters to the doorbell, set different signals
for each transmitter so you know at which door the signal is coming from.
Battery/pairing the units
1. Open the transmitter carefully
by pressing the latch with
a screwdriver.
2. Remove the plastic tab from
the battery holder to activate
the battery in the remote control.
GREAT BRITAIN • customer service tel: 020 8247 9300 e-mail customerservice@clasohlson.co.uk internet www.clasohlson.co.uk postal 10 – 13 Market Place, Kingston Upon Thames, Surrey, KT1 1JZ
3. Plug the doorbell into a 230 V wall
socket. The doorbell will sound
twice and the LED indicator (3)
starts to flash which indicates that
the doorbell is ready to be paired
with the transmitter.
4. Within 30 seconds, press
the transmitter that you want to
connect the doorbell to. The doorbell
will sound when the pairing has
been successful. If you wish to
pair additional transmitters: Cut off
the power supply to the doorbell,
then repeat steps 3–4.
Choosing the ring signal
Once the pairing has been successful, choose the ring
signal by pressing repeatedly on the button inside
the transmitter. You can choose between a total of
16 different melodies and sounds:
1. Dingdong
2. Für Elise
3. Westminster Chimes
1
4. The Butterfly Lovers
5. Swan Lake
4
6. Red River Valley
2
7. My heart will go on
8. Turkish March
5
Selecting the volume
Press the button to select the volume. You can choose
3
between high and low volume.
Assembly
Information
• Avoid placing the units next to metal objects such as metal window frames as
this may cause interference with reception.
• Test the doorbell's functionality/location before final mounting.
1. Screw on
or glue (with
double-sided
adhesive
tape) the
backplate
of the
transmitter to
the wall.
9. Menuet
10. Congratulations
11. William Tell Overture
12. Romance of love
13. Memory
14. The Little Mermaid
15. Greensleeves
16. Romeo & Juliet
2. Fit the
transmitter
onto the
backplate,
making
sure that
the gasket
is in place.
Press the
latch on the
transmitter
until it clicks
into place.
Remove the paired transmitter
Information
If you follow the following steps, it will remove all the paired transmitters from
the doorbell's memory.
1. Dismantle one of the transmitters.
2. Remove the power supply to the doorbell by disconnecting it from the wall
socket. Wait a few seconds and then plug it in again so that the doorbell is in
pairing mode. The doorbell will sound twice.
3. While the doorbell is in pairing mode, press the button inside the transmitter.
The doorbell will sound to confirm that all the transmitters have been removed
from the doorbell's memory.
Care and maintenance
Clean the product using a damp cloth. Use only mild cleaning agents, never
solvents or corrosive chemicals.
Troubleshooting
No sound when • Check that the batteries are inserted correctly and that
the push button they are not flat.
is pressed. • Excessive distance between the transmitter and
the doorbell.
Responsible disposal
This symbol indicates that this product should not be
disposed of with general household waste. This applies
throughout the entire EU. In order to prevent any harm to
the environment or health hazards caused by incorrect waste
disposal, the product must be handed in for recycling so that
the material can be disposed of in a responsible manner.
When recycling the product, take it to your local collection
facility or contact the place of purchase. They will ensure
that the product is disposed of in an environmentally sound
manner.
Specifications
Doorbell (receiver)
Rated voltage 230 V AC
Power consumption ≤ 0.5 W
Range Up to 100 m (clear line of sight)
78 dB (at a distance of 1 m)
Noise level
16 different melodies and sounds
Signals
Size 70 × 70 × 64 mm
Push button (transmitter)
Transmission frequency 433.92 MHz
Battery CR2032 lithium (3 V)
Size 35 × 17 × 85 mm
