Clas Ohlson RP560A Manual

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details).

Safety

Do not touch the nozzle of the pen as it will become very hot during use.

• This product is not a toy.
• The product must only be used by persons over the age of 14 years.
• Never leave the product unattended while it is switched on, especially within reach of children.
• Only use materials that have been recommended in this instruction manual.
• Never use the product if it has been damaged in any way.
• Never try to open the product, repair, dismantle or modify it in any way.
• Repairs must only be carried out by qualified service technicians and only using original spare parts.

Product description

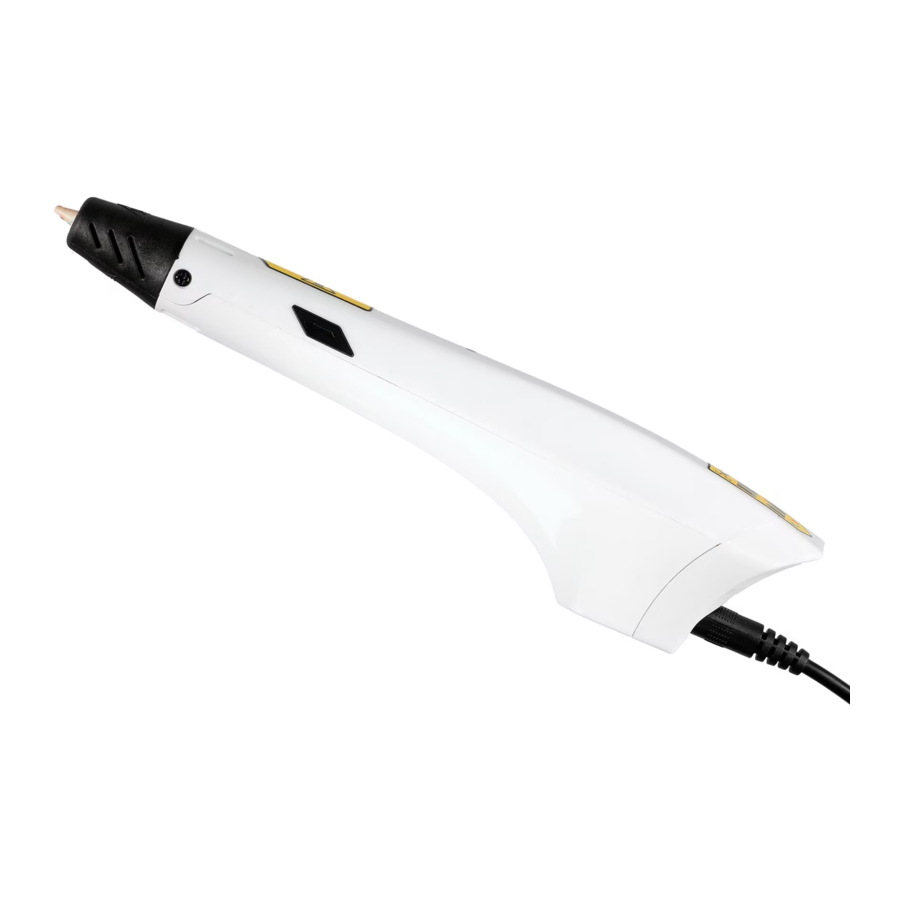

1. Nozzle
2. [+//-] Feed speed selector
3. [ON/OFF, ] On/off, reverse – hold in for at least 3 seconds to reverse the filament feed.
4. Filament input port
5. Indicator light: Orange: The pen is in warm-up mode Green: The pen is ready for use
6. [] Forward filament feed
7. USB cable

Instructions for use

The end of the filament must be cut square before it is fed into the pen.

1. Connect the USB cable (7) to the pen and then to a 5 V, 2 A USB power adapter (sold separately).
2. Press [ON/OFF] (3). The indicator light (5) will shine orange and the pen will begin to warm up.
3. When the indicator light (5) shines green, the pen is ready for use.
4. Push the filament into the input port (4) as far as it will go and then press [] (6) once to feed the filament forwards. It will take a few seconds for the filament to start coming out of the nozzle.
5. Press [] (6) to stop the filament feed.

Automatic standby mode

If the Forward filament feed button has not been pressed for 2 minutes, the pen will automatically switch off and the indicator light will go out. Pressing the ON/OFF button will switch the pen back on again.

Changing filament

1. Press and hold in [ON/OFF, ] (3) for at least 3 seconds to reverse feed the filament out of the pen. The filament will be feed back up and out of the pen and the pen will shut off.
2. Repeat steps 2 to 5 above. Let all of the previous filament feed out before feeding in a new colour.

Care and maintenance

• Always feed any remaining filament out of the pen before you switch it off.
• If the pen is dirty, let it cool and wipe it clean with a soft dry cloth. Never use solvents or abrasive cleaning agents.

Troubleshooting guide

Responsible disposal

This symbol indicates that the product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Specifications
