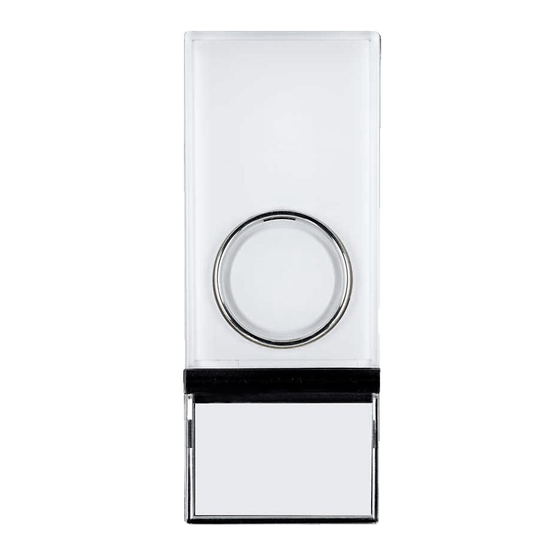

Extra Push-Button for 36-4832
Art.no 36-4832-1
Model WA PUSH WHITE
Please read the entire instruction manual before use and save it for future reference. We reserve
the right for any errors in text or images and for making any necessary technical changes to this
document. If you should have any questions concerning technical problems please contact our
Customer Services.

Buttons and functions

1
4
2
5
3
6
Carefully pry open the battery compartment
using a small screwdriver.
1. LED indicator
2. Push button
3. Name plate
4. Battery compartment

Assembly

1. Carefully open the battery compartment using a screwdriver or similar (see diagram).
Insert the included 12 V, V23GA battery. Note the polarity markings at the bottom
of the battery compartment to ensure correct insertion.
2. Set the push-button's channel selector (6) to the same channel as the doorbell.
3. Check for correct functioning.
4. Select the desired chime by setting the push-button's selector (5).
5. Remove the clear plastic cover over the nameplate and write in your name, if so desired.
6. Mount the push-button in a desired location.
GREAT BRITAIN • customer service tel: 08545 300 9799 e-mail: customerservice@clasohlson.co.uk internet: www.clasohlson.com/uk
7
5. Chime selector
6. Channel selector
7. Retaining screws

Care and maintenance

Clean the product using a lightly moistened cloth.
Only use mild cleaning agents, never solvents or corrosive chemicals.

Troubleshooting guide

The doorbell is
•
Check the batteries in both the doorbell and push-button.
not working.
•
Make sure both the push-button and doorbell are set to the same
channel (that they are in the same position).
•
Move the doorbell to another location. The signal may be blocked by walls,
other interfering electronics, etc.

Disposal

Follow local ordinances when disposing of this product.
If you are unsure about how to dispose of this product contact your municipality.

Specifications

Battery
12 V, V23GA

Declaration of Conformity

Hereby, Clas Ohlson AB, declares that following product(s):
Wireless doorbell
36-4832, 36-4832-1 / WA-638S, WA-PUSH
is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
Article 3.1a (Safety):
Article 3.1b (EMC):
Article 3.2 (Radio):
Insjön, Sweden, February 2012
Clas Ohlson, 793 85 Insjön, Sweden
EN 60950-1
EN 301 489-1
EN 301 489-3
EN 300 220-2
Klas Balkow
President
