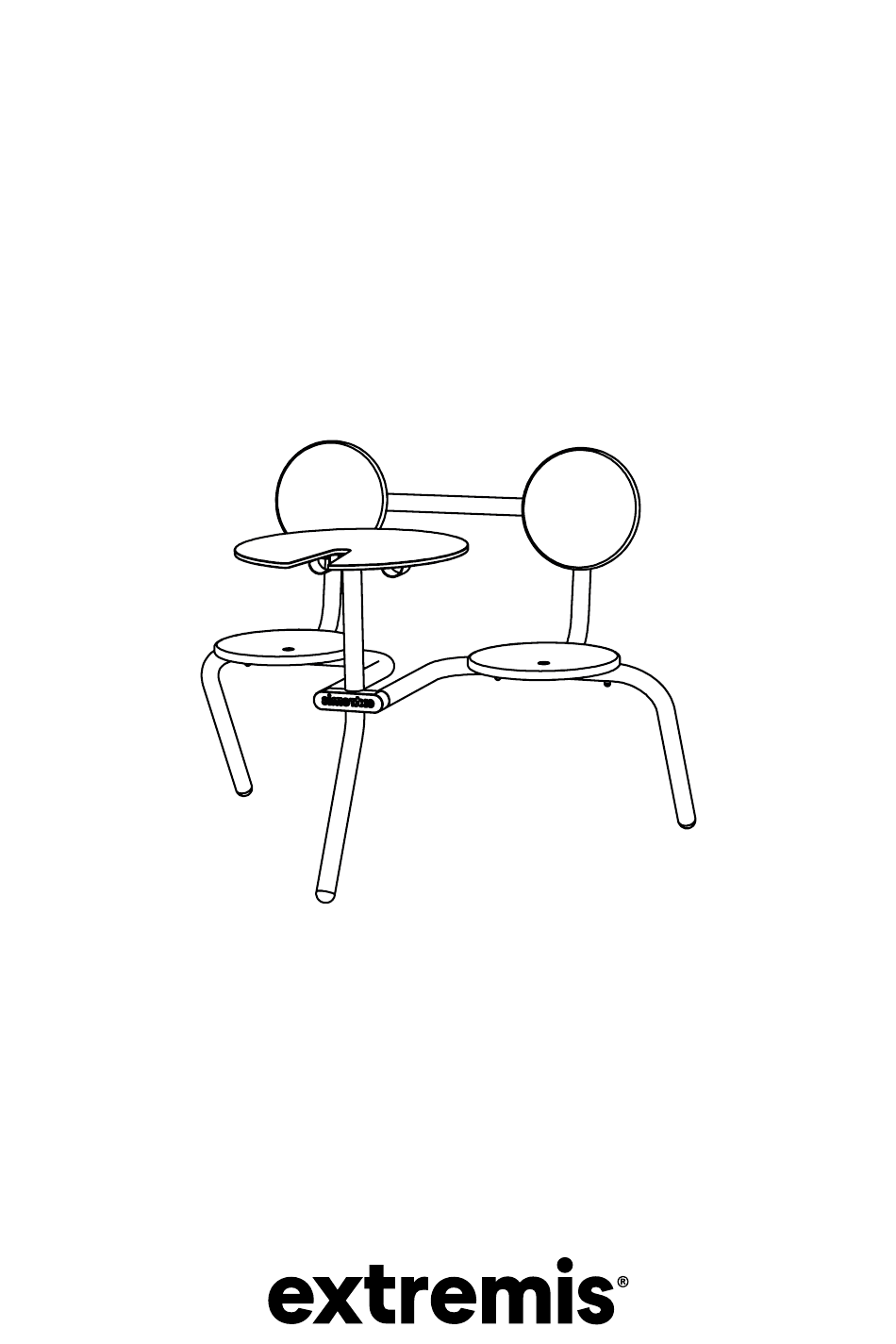

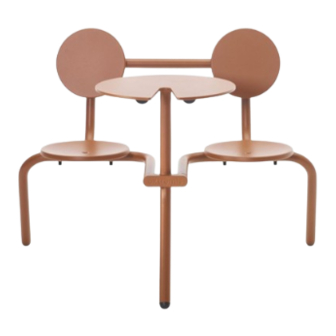

- Page 1 Bistroo...
- Page 2 IMPORTANT! RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
- Page 4 Table of contents Mounting kit Exploded view Assembly Bistroo Table tray This is an interactive PDF You can easily navigate through this manual, allowing you to smoothly jump from one page to the other.
- Page 5 Table of contents Extended tabletop Floor fastening Warnings - Text instructions - Maintenance This is an interactive PDF You can easily navigate through this manual, allowing you to smoothly jump from one page to the other.
- Page 6 Mounting kit 4 x M6 4 x M6x12 BIS345 Mounting kit to fix the tabletop to the center leg 4 x M8x20 BIS344-1 Mounting kit to fix the logo frame to center leg 4 x M6 4 x M6x12 BIS703 Mounting kit to fix a seat 4 x M8...
- Page 7 Exploded view...
- Page 8 Bistroo N° 13 N° 4 - 5 35’ BIS345 4 x M6 4 x M6x12 BIS344-1 4 x M8x20...
- Page 9 Position the backrest on the outside of the logo frame BIS347 Do this for both sides 4 x M8x30...
- Page 10 Slide the left and right leg over the bolts BIS347 Do this for both sides 4 x M8...
- Page 11 8 Nm BIS345 MAX! per seat Tighten carefully! Excessive force may damage the coating! 4 x M6 4 x M6x12...
- Page 12 8 Nm MAX! BIS346 Tighten carefully! Excessive force may damage the coating! 6 x M6 6 x M6x12...
- Page 13 Table tray Position the table tray in the cut-out of the tabletop...
- Page 14 Extended tabletop Position the extended tabletop in the cut-out of the tabletop, make sure the logo on the tabletop is facing away from the Bistroo...
- Page 15 Floor fastening N° 34 10’ Drill a hole in the plastic cap Pull the plastic cap out using a screwdriver...
- Page 16 Do not tighten yet!
- Page 17 Use the most appropriate fasteners for the surface on which the Bistroo is to stand Tighten all bolts by tightening the plastic cap...
- Page 18 Warnings Text instructions Maintenance Warnings Assembly text instructions Maintenance ...
- Page 19 • Stackable up to 4 pieces. • Always stack the tables with 2 people. • Only use Extremis accessories. • Do not sit on the tabletop. • Do not stand or jump on the seat or the tabletop.
- Page 20 significantly contribute to the fire load and fire growth. • Dark colors can get very hot in sunny weather. Sunbrella • Not waterproof, store inside! • Shake or brush off loose dirt immediately. • UV color fasteness: 7/8 (ISO 105-B02).
- Page 21 Assembly text instructions 1 - 2 - 3 - ... Take a look at the drawings, starting from page 8 Bistroo (p8) 1. Lay the tabletop upside down on the ground with the holes facing upwards and use a blanket for protection. Position the center leg on the tabletop so that the holes align and attach it with four M6 wave washers and M6x12 bolts.
- Page 22 Floor fastening (p15) 1. Turn the table upside down. 2. Drill a hole in the plastic cap & now pull the plastic cap out using a screwdriver as shown on the drawing. 3. Assemble the floor fastening set as shown in the drawing. Do not completely tighten the bolt yet.
- Page 23 Powder coating CLEANING Regularly Use Extremis Multicleaner, a 100% biodegradable detergent or common kitchen cleaning products. Avoid using aggressive products. These sur- faces are best cleaned with a neutral cleaning product diluted in water. REPAIRING DAMAGED POWDER COATING When damaged The impact of sharp objects can damage the coating.
- Page 24 REGULAR CLEANING When dirty Make a solution to remove stains on your Sunbrella. MACHINE WASHING Rarely It is also possible to put the blankets and cushion covers in a washing machine (30°). Do not dry clean or tumble dry. The fabric can be cre- ased.
- Page 25 All rights reserved. Unless otherwise specified, all designs and photographs contained in this publication are copyright protected and are the property of Extremis. No part of this publication may be copied or distributed without Extremis’ prior written consent. The names of the authors of photographs to which we do not hold rights are mentioned here. We have done our utmost to provide a...
