Operating Instructions (Included Installation Instruction)
K25DSF2NET
K40DSH2NET
K45DTT2BET

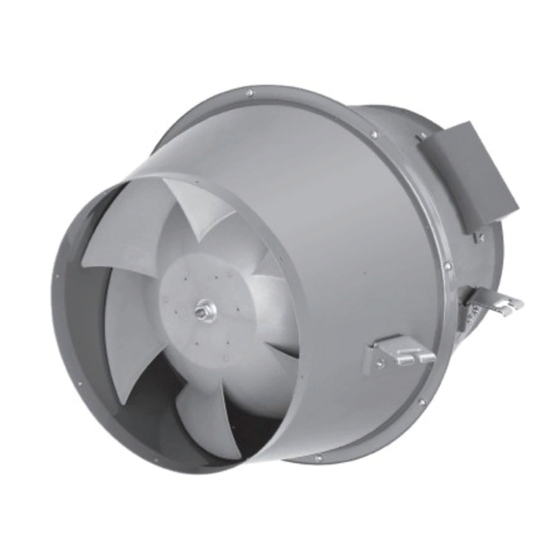

Thank you for purchasing the KDK Compact Axial Flow Fan.
Please read these instructions carefully, before using this product, and retain this instruction
for future use.
Make sure to read "Safety Precautions" (on page 2-4) prior to use.
Compact Axial Flow Fan
K28DSM2NET
K45DST2NET
K45DTH2BET
K35DSM2NET
K40DTL2BET
Table of Contents
Safety Precautions .................................. 2-4
Maintenance and Inspection....................... 6
Periodic Check and Maintenance............... 7
Specifications ............................................. 8
Installation Instructions .................................
...................................... 9-Rear cover page
1. Before installation .............................. 9
2. Installation ....................................... 10
3. Power cord connection ........................
............................. 11-Rear cover page
K40DSL2NET
K40DTH2BET
