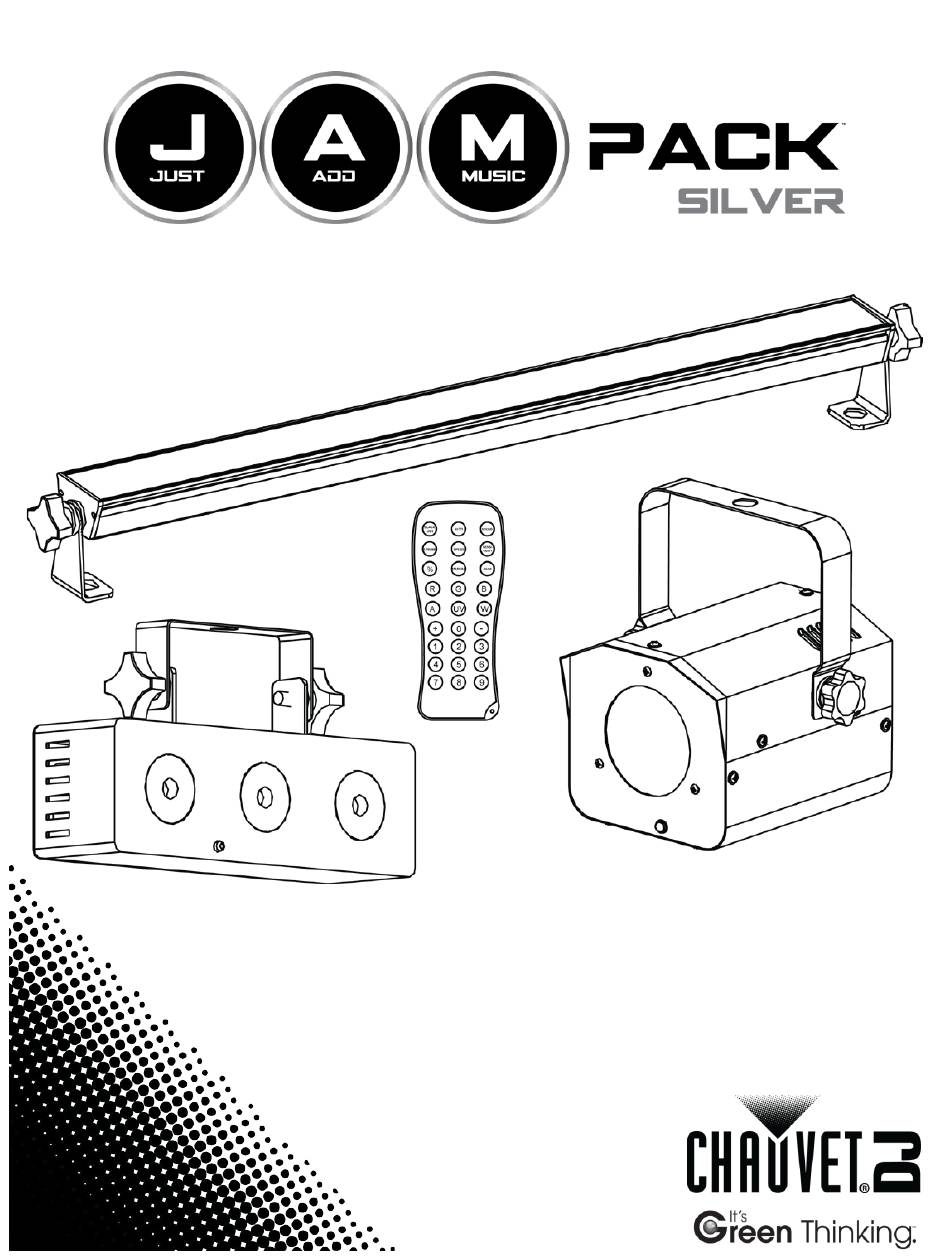

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before You Begin ......................3 What Is Included ..........................3 Unpacking Instructions ........................3 Claims ..............................3 Text Conventions ..........................3 Symbols ............................3 Disclaimer ............................3 Product at a Glance ........................4 Safety Notes ............................ 4 2. -
Page 3: Before You Begin
1. B EFORE EGIN What Is · · Moonflower 3 External Power Supply Units · · Included Three-Color Wash Effect light Warranty Card · · UV Strobe Combo Quick Reference Guide · IRC-6 Remote Control Unpacking Carefully unpack the product immediately and check the container to make sure all the Instructions parts are in the package and are in good condition. -
Page 4: Product At A Glance
Product at a Use on Dimmer Auto Programs Glance Outdoor Use Auto-ranging Power Supply Sound-Active Replaceable Fuse User-Serviceable Master/Slave Safety Notes Please read the following Safety Notes carefully before working with the product. The Notes include important safety information about installation, usage, and maintenance. ·... -
Page 5: Introduction
2. I NTRODUCTION Product Overviews Front Views Back Panel Views Microphone Sound Moonflower Sensitivity DC Power In IR Sensor Three- Color Wash Effect Light Sound LED Lenses DC Power In Microphone Sensitivity IR Sensor Sound Sensitivity Microphone UV Strobe Combo Control Panel Buttons Indicator LED... -
Page 6: Product Dimensions
Product Dimensions 5.8 in 146 mm 6.9 in 175 mm Moonflower 6.3 in 160 mm 7.5 in 2.4 in 190 mm 61 mm Three-Color Wash Effect light 4.3 in 108 mm 21.2 in 537 mm UV Strobe 1.6 in Combo 40 mm 2.2 in 55 mm... -
Page 7: Setup
3. S ETUP AC Power The JAM Pack™ Silver products have an external auto-ranging power supply that can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the power supply’s back panel, or refer to the product’s specifications chart. -
Page 8: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Products in the JAM Pack™ Silver may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging ·... -
Page 9: Operation
4. O PERATION UV Strobe Button Function Control Panel <STROBE Cycles through strobe modes MODE> Operation <UV ON/OFF> Turns the UV blacklight on or off · Indicator LED will blink when Strobe mode is on. · Indicator LED will be static on when in Sound-Active mode. The only product in the JAM Pack™... -
Page 10: Infrared Remote Control
Infrared The JAM Pack™ Silver products are compatible with the IRC-6 infrared remote control from Chauvet. The Moonflower and Three-Color Wash Effect light are always in IR Remote mode. For the UV Strobe Combo, IRC mode will activate at the press of any button on Control the remote. -
Page 11: Maintenance
5. M AINTENANCE Product Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum Maintenance performance and minimize wear, clean your lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency. -
Page 12: Technical Specifications
6. T ECHNICAL PECIFICATIONS Dimensions and Weight Length Width Height Weight Moonflower 6.9 in (175 mm) 5.8 in (146 mm) 6.3 in (160 mm) 1.6 lb (0.7 kg) Wash Effect 7.5 in (190 mm) 2.4 in (61 mm) 4.3 in (108 mm) 1.0 lb (0.4 kg) UV Strobe 21.2 in (537 mm) -
Page 13: Returns
To return a product or request support: · In the U.S., contact Chauvet World Headquarters (See Contact Us). · In the UK or Ireland, contact Chauvet Europe Ltd. (See Contact Us). · In Mexico, contact Chauvet Mexico. (See Contact Us). ·... -
Page 14: Contact Us
ONTACT WORLD HEADQUARTERS - Chauvet General Information Technical Support Address: 5200 NW 108th Avenue Voice: (954) 577-4455 (Press 4) Sunrise, FL 33351 Fax: (954) 756-8015 Voice: (954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 World Wide Web Toll free: (800) 762-1084 www.chauvetlighting.com UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd.
