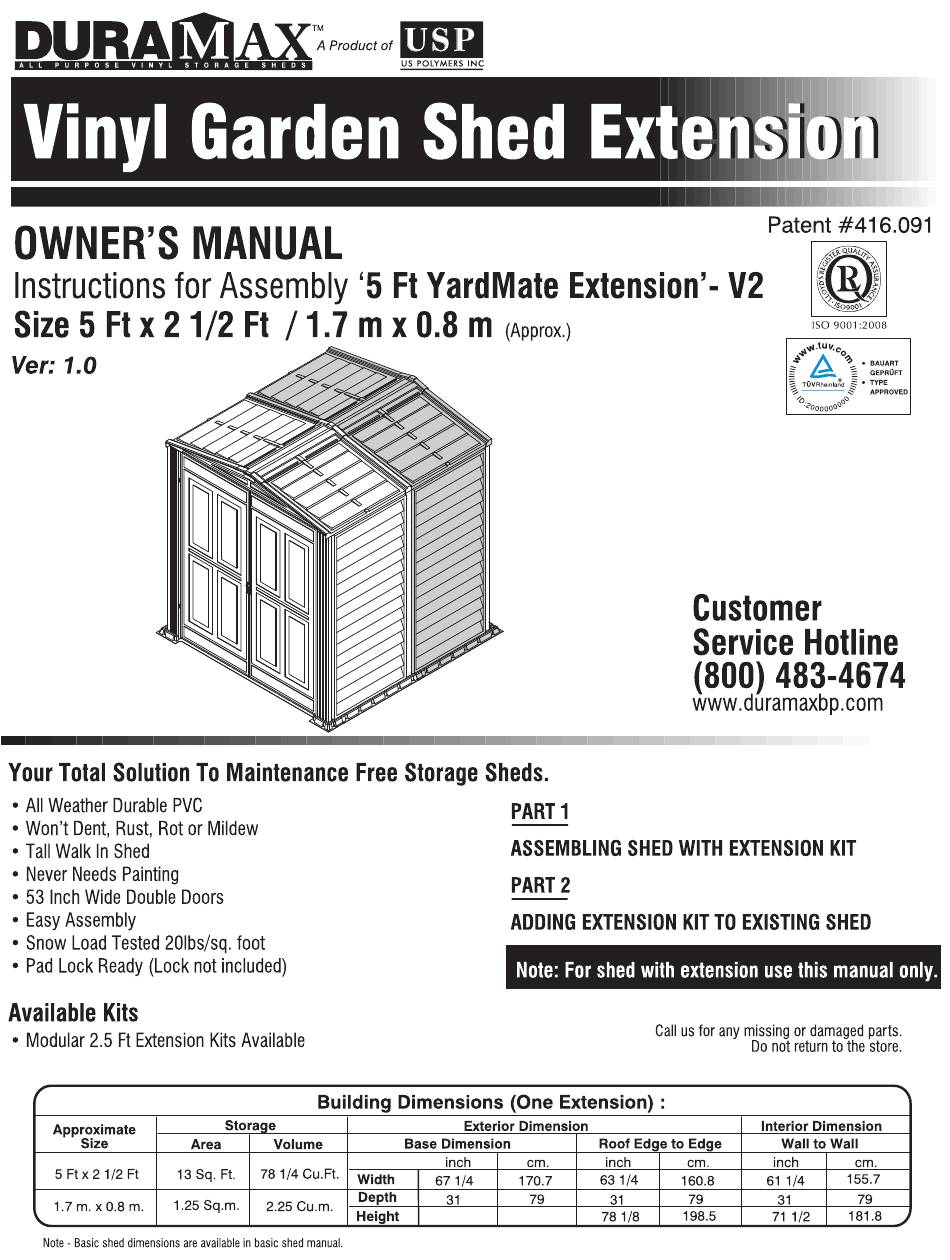

USP DURAMAX 5 Ft YardMate Extension V2 Owner's Manual

Vinyl garden shed extension size 5 ft x 2 1/2 ft /1.7 m x 0.8 m
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the DURAMAX 5 Ft YardMate Extension V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for USP DURAMAX 5 Ft YardMate Extension V2

Summary of Contents for USP DURAMAX 5 Ft YardMate Extension V2

  • Page 2 Duramax Storage Shed Limited Fifteen Year Warranty U.S. Polymer Inc. will send a replacement part free of charge, in the event of material defects and or workmanship for a period of fifteen years from the date of purchase. This warranty is extended only to the original purchaser. A purchase receipt or other proof of date of original purchase will be required before warranty service is rendered.

  • Page 3: Safety And Precautions

    SAFETY & PRECAUTIONS Before You Begin... 1. Check your local building codes regarding footings, location, etc. 2. Select a site that allows enough working space around the shed. 3. Determine building foundation and anchor system. 4. Read and understand the Owner’s manual enclosed in the package. 5.
  • Page 4 SAFETY & PRECAUTIONS For your own safety, please read and follow these instructions during the shed assembly. 1. Always wear work gloves, long sleeves and eye protection during assembly of the shed. Some pieces of the shed contain sharp edges and can cause injury. 2.

  • Page 5: Care And Maintenance

    IMPORTANT Wear eye protection when using any form of power tools. Do not use voltage power tools in a wet or damp enviornment to avoid electric shock. Do not use any part of the shed as a means of personal support while attaching components during assembly. The shed must be constructed on a solid base foundation.

  • Page 6: Parts List

    Parts List PARTS ACCESSORIES CODE CODE CODE FCLE FCLE FDCL FCRE FDCR FCRE CB2E CB2B RS1E RS2E RS3E RS5E RS14E DSHE RS1E, RS3E DSHE CB2B, CB2E RS2E RS14E Note 1. Before starting installation, please refer Safety & Precautions. 2. Maximum no. of Extension can be build upto 5’x8’...
  • Page 7 5’ x 3’ Exploded View RS2E RS3E RS1E RS5E RS2E DSHE RS5E RS2E RS2E RS3E RS1E CB2B CB2E FCLE FCRE CB2E...
  • Page 8 One Extension Parts List ACCESSORIES PARTS CODE CODE CB3SB RS3SB RS4E RS6E RS7E RS3SB & CB3SB RS11E RS14E RS6E & RS7E RS4E & RS11E RS14E...
  • Page 9 Exploded view with one extension RS3SB RS6E RS11E RS4E RS7E RS3SB RS4E CB3SB CB3SB...
  • Page 11 Remove the pin & plug from the Note back side of the base pallet (BPF). Plug 1&2 Fig.2 Fig.1 Fig.3 Fig.1 1,2,3&4 Fig.2 Fig.4 FCRE Back FCRE FCRE Fig.1 Fig.2 FCRE FCRE 2,3&4 Front Fig.3 Fig.4...
  • Page 12 Note Check the stamped label on top of all panels inside. FCRE Front FCRE Fig.1 Fig.1 Fig.2 1&3 Fig.3 Note Do not tighten the screw. Leave it loose FCRE FCRE Fig.2...
  • Page 13 CB2E CB2E CB2E FCRE CB3SB CB3SB Fig.2 Fig.1 Fig.1 Fig.2 Back Fig.1 Fig.2 2&3 Back Fig.3...
  • Page 14 Note Do not tighten the screw. Leave it loose CB3SB Back CB2E Fig.1 CB3SB CB3SB CB2E Back Fig.1 Fig.2 Fig.1 Back...
  • Page 15 Fig.2 1&3 1&2 CB2B CB3SB CB2B CB3SB CB2B Fig.1 Fig.2 CB2B Back Fig.3 Fig.1...
  • Page 16 Fig.1 Fig.2 2&3 Fig.3 Note Do not tighten the screw. Leave it loose Fig.1 CB2B CB2B Fig.1...
  • Page 17 Fig.1 Fig.2 Fig.1 Fig.2 1&3 Fig.3 1&2 CB3SB CB2B CB3SB CB2B CB3SB Fig.1 Fig.2 CB2E CB3SB CB2E Fig.3...
  • Page 18 Fig.1 FCLE FCLE FCLE Fig.1 Fig.2 FCLE FCLE Front 1,3&4 Fig.3 Fig.4 FCLE Note Do not tighten the screw. Leave it loose. FCLE Fig.1...

  • Page 19: Parts Needed

    FCLE CB2E CB2E Fig.1 Note After completing the center band assembly, fully tighten the four center band fittings (FCB) to the corner column. Fig.2 Fig.1 Front B. Roof Structures Parts Needed For Parts Needed Each Extension Code Code RS1E RS3SB RS2E RS4E RS3E...
  • Page 20 Fig.1 Fig.2 Fig.2 Fig.1 1&2 FCRE 3&4 FCLE FCLE FCLE Fig.3 Fig.4 FDCR 1&2 FDCR Front FCRE FCRE FCRE 3&4 FCLE Fig.1 Fig.2 FDCL FDCL FCLE FCLE Fig.3 Fig.4...
  • Page 21 5’ x 3’ Roof Structure Exploded View RS2E RS3E RS1E RS2E RS2E RS5E RS5E RS1E RS2E DSHE RS3E Roof Structure Exploded View With One Extension RS3SB RS4E RS6E RS11E RS7E RS4E RS3SB...
  • Page 22 Note Make Two Sets RS3SB RS3SB RS3E RS3E RS3E RS3SB RS3E Fig.2 Fig.1 RS3E RS3SB 1&2 RS3E RS3E 1&2 RS3E Fig.1 Fig.2...
  • Page 23 RS6E RS5E RS7E RS5E 1&2 RS1E RS1E Front FDCR RS1E FCRE FCRE Fig.1 Fig.2 3&4 RS1E RS1E FCLE FCLE FDCL Fig.3 Fig.4...
  • Page 24 RS1E RS1E Front DSHE DSHE DSHE 1&2 Fig.1 Fig.2 DSHE Fig.3 RS1E RS1E Back RS1E...
  • Page 25 RS1E RS3SB RS1E Back RS3E Fig.1 Fig.2 1,2&3 RS3SB RS3E Fig.3 Back RS3SB Back RS5E RS6E RS5E RS7E RS1E RS1E RS5E RS5E Fig.1 Fig.2...
  • Page 26 RS2E RS2E RS2E RS5E RS2E RS6E RS2E Fig.1 Fig.2 RS2E RS2E RS2E RS3E RS3SB Fig.4 Fig.3 RS6E RS4E RS4E RS5E RS4E RS7E RS4E Fig.1 RS4E RS4E RS3SB RS3E Fig.2 Fig.3...
  • Page 27 RS11E RS6E RS11E RS5E RS7E...
  • Page 28 C. Roof Panels Insert roof plugs into Facia Panel Note Parts Needed only as indicated. Code RS14E Parts Needed For Each Extension Code Apply silicone around the roof Note plugs and the pin holes before RS14E fixing the pins. Front...
  • Page 29 Back Note Use a screw driver to align the holes. Insert roof plugs into roof panels only as indicated. Back...
  • Page 30 Note Apply silicone around the roof plugs.

  • Page 31: Outside View

    RS5E RS5E RS14E RS14E RS3E Outside View RS3E Inside View D. Door Parts Needed Code Fig.1 Fig.2...

  • Page 32: Ventilation Kit

    E. Ventilation Kit Parts Needed: TOOLS YOU WILL NEED CODE Power Drill Dia 3/16” (5mm) drill bit Dia 1/2” (12.5mm) drill bit Note Optional ventilation kits can be installed on any of the wall panels. However, we recomend mounting them on the top of the shed’s back wall. Outside Outside...
  • Page 33 PART 2: Adding Extension Kit to Existing Shed Back Front Back Note Remove this Ridge cover. Remove the ridge cover (RRE) from the shed . See the figure. Use a drilling machine to remove the pins and plugs from the ridge cover, roof panel and facia panel.
  • Page 34 Remove the roof plugs and pins from backside facia panel and detach it from the shed. Back Support the roof structure (RS5E) by using an appropriate support to avoid the roof Back structure from collapsing. Support Note Support not included. RS5E Detach back side (RS2E) from (RS5E).
  • Page 35 Detach (RS5E) from (RS1E). Back RS1E RS5E RS5E RS1E RS5E Fig.1 Detach 90 degree joint (RJ) from corner column fitting (FCC) from both corners. See fig.1. Back Detach 90 degree joint (RJ) from (RS3E) from both corners. See fig.2 RS1E 1&2 RS3E RS3E...
  • Page 36 Pull back the roof structure (RS1E) with 90 degree joint (RJ). See fig. Back RS1E Detach the center band (CB2B) from the back wall of the shed. Follow the fig. Fig.1 Detach (CB2B) from (CB2E). Then detach (CB2B) & (CB2E) from (FCB). 1&2 CB2B CB2E...
  • Page 37 From outside back of the shed detach the corner column (CCE) from the base pallet (BPF) at both corners and remove the corner column. See fig.1 Fig.1 Then detach the middle column (CME) from the base pallet (BPF). See fig.2 Fig.2 Remove the back side panel and column from the base pallet.
  • Page 38 ADDITIONAL ACCESSORIES AVAILABLE These accessories are required in case of heavy snow or high wind areas. Please choose relevant accessories according to your needs. ANCHOR KIT (Soil) Wire rope with twist augers for sheds installed with foundation (Wood / Metal) on soil. For heavy wind area.
  • Page 39 U.S. Polymers, Inc. 1057 S. Vail Ave Montebello, CA 90640, United States of America...
