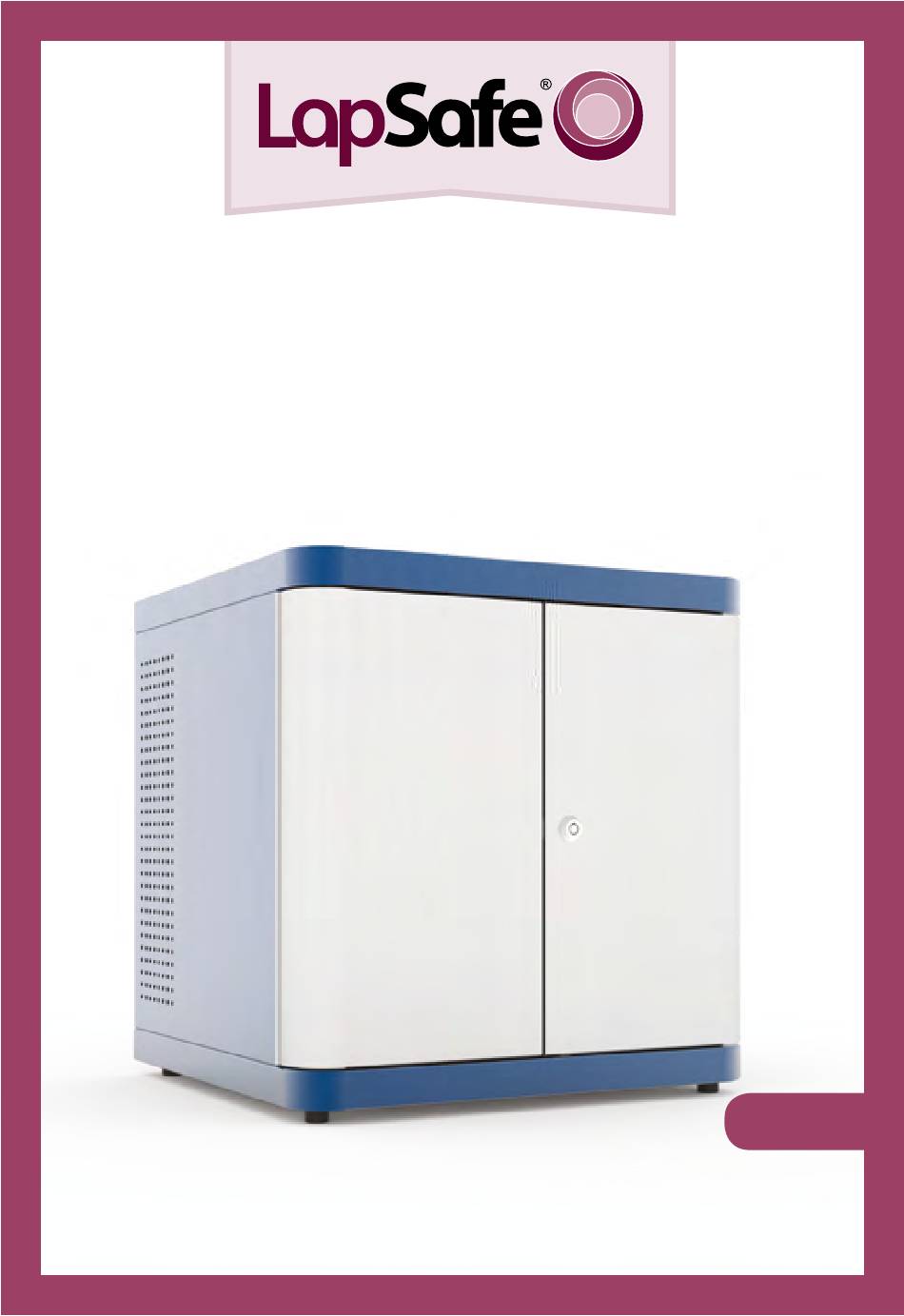

- Page 1 The ClassBuddy Desk ™ Installation Guide 1 of 2 Date: December 2017 Version: LPL17_V1_02...
- Page 2 The ClassBuddy Desk - Installation Guide Copyright LapSafe® Self-Service Solutions...
-
Page 3: Tools Required
The ClassBuddy Desk - Installation Guide Tools required • Screwdriver/Power Driver Weight 20kg Step 1: Stand Up Once unpacked, stand the unit up and ensure you have a clear working space around all sides. Copyright LapSafe® Self-Service Solutions... - Page 4 The ClassBuddy Desk - Installation Guide Step 2: Unscrew rear panel On the rear of the ClassBuddy desk there are 10 screws, unscrew all of these and store the screws and washers in a safe place. Copyright LapSafe® Self-Service Solutions...
- Page 5 The ClassBuddy Desk - Installation Guide Step 3: Disconnect earth cable Slowly start to remove the rear panel to gain access to the connected earth cable. The cable should pull off of the rear panel. Step 4: Load your devices...
- Page 6 The ClassBuddy Desk - Installation Guide Securing to desk (Optional) It is possible to secure your ClassBuddy Desk down to the Desk. To do so you will require 4 x M4 bolts (not included). The drilling pattern is 392mm x 338mm but please allow at least 40mm from the rear of the desk.
- Page 7 Complete Your new ClassBuddy Desk should now be successfully installed and ready to use. Please refer to your user guide that supplied with your ClassBuddy Desk for further information and read our health and safety guidance on page 9. If you have any problems please do not hesitate to contact our support team: support.lapsafe.com...
- Page 8 The ClassBuddy Desk - Installation Guide If you have any questions or problems Contact us today Copyright LapSafe® Self-Service Solutions...
