HEAVY OIL BURNERS
techniques for energy saving
MODEL

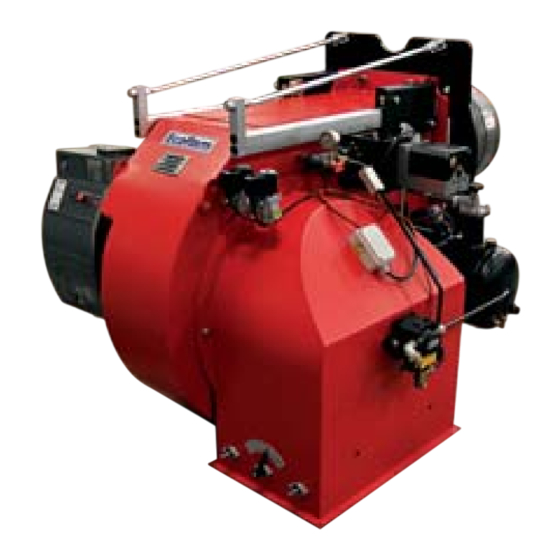

OILFLAM 700.1 PR/MD
OILFLAM 800.1 PR/MD
AIR DAMPER MOTOR
230 / 400 V 50 Hz
LB 1312
03.02.2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OILFLAM 700.1 PR/MD and is the answer not in the manual?

Questions and answers

Summary of Contents for Ecoflam OILFLAM 700.1 PR/MD

  • Page 1 HEAVY OIL BURNERS techniques for energy saving MODEL OILFLAM 700.1 PR/MD OILFLAM 800.1 PR/MD AIR DAMPER MOTOR 230 / 400 V 50 Hz LB 1312 03.02.2005...
  • Page 2: Working Fields

    LB1312 Oilflam 700.1-800.1 PR/MD TECHNICAL DATA MODELS OILFLAM 700.1 PR/MD OILFLAM 800.1 PR/MD Thermal power max. kcal/h 6.250.000 7.327.500 7.250 8.500 Thermal power min. kcal/h 2.096.270 2.385.100 2.417 2.750 Oil capacity max. kg/h Oil capacity min. kg/h Max. viscosity 50° E a 50 °C...
  • Page 3: Overall Dimensions

    LB1312 Oilflam 700.1-800.1 PR/MD OVERALL DIMENSIONS D - D1 MODELS OILFLAM 700.1 PR 1480 660 820 455 1240 425 800 460 460 M20 OILFLAM 800.1 PR 1480 660 820 455 1240 425 800 460 460 M20 D= Short head ; D1= Long head BURNER INSTALLATION - BURNER - NUT...
  • Page 4 LB1312 Oilflam 700.1-800.1 PR/MD PUMP’S PRESSURE / OIL TEMPERATURE DIAGRAM Pump inlet pressure:the vaporisation of light fraction of heated heavy oil causes premature pump wear, to avoid this, use the inlet pressures shown in the graph. C° Oil temperature CHECKS TO BE MADE TO ENSURE A PROPER INSTALLATION: Before proceeding with the filling of the fuel system and subsequent burner start up, it is advisable to carry out the following checks: - Power line must be adequate to system’s adsorbed load...
  • Page 5: Type Of Installation

    LB1312 Oilflam 700.1-800.1 PR/MD TYPE OF INSTALLATION The burner must be supplied with oil heaving a min. temperature at the pump ( 50° C ). Drawing for fluid fuel oil up to 50°E at 50°C 1 - Burner 2 - Tank 3 - Heater 4 - Safety/operation thermostat 5 - Level switch...
  • Page 6: Modulating Operation

    LB1312 Oilflam 700.1-800.1 PR/MD MODULATING OPERATION With the bumer in the start position and the appliance thermostats enabled, power is delivered to the resistances (G) of the preheater and heating cartridges for the pumps and the fuel supply line to the head (O).
  • Page 7 LB1312 Oilflam 700.1-800.1 PR/MD - pag.7 -...
  • Page 8 LB1312 Oilflam 700.1-800.1 PR/MD FLUIDICS NOZZLE - pag.8 -...
  • Page 9 LB1312 Oilflam 700.1-800.1 PR/MD - pag.9 -...
  • Page 10 LB1312 Oilflam 700.1-800.1 PR/MD COMBUSTION AIR FLOW ADJUSTMENT LANDIS SQM 50.481A2 Remove cover to gain access to the adjusting cams. The cams are to be adjusted through the suitable key provided . Description: - Limit switch for air damper “High Flame” position adjustment. - Limit switch for ignition flame “Min power”...
  • Page 11: Burner Maintenance

    LB1312 Oilflam 700.1-800.1 PR/MD Out 1(90°)- Out 2(115°)- Out 3(118°)- Out 4(120°). - To modify factory temperature setting act as follows: - press key “F” - the led Out 1 starts to flash, if You need to modify minimum oil temperature press increase or decrease button, after confirm the new value pressing again “F”...
  • Page 12 LB1312 Oilflam 700.1-800.1 PR/MD RWF 40 MICROPROCESSOR REGULATOR Description of display and keys on the RWF 40 microprocessor regulator The figure shows the normal display indicating Display: the actual value and the programmed set analog input 1 point, and equally important, (actual value) gives the meaning of the single keys and indicator Leds.
  • Page 13: Setting Parameters

    LB1312 Oilflam 700.1-800.1 PR/MD SETTING PARAMETERS When the burner is ignited all displays of the regulator light up. The set point display will blink for about 10 seconds. The value in the upper field of the display (red) indicates the actual value. The value in the lower field of the display (green) indicates the set point currently programmed.
  • Page 14 LB1312 Oilflam 700.1-800.1 PR/MD PARAMETERIZATION 17.5 12.5 -2.5 -7.5 -12.5 -17.5 External temperature (iC) PROBE CONNECTION DIAGRAMS Connection for probe Cod. S721 Cod. RWF 40 Cod. QAE2..(passive probe) S720/1 S731 Water probe S731/1 Configuration code S731/2 C111 = 9XXX 1 2 3 4 S731/3 S731/4 OBE620-P..
  • Page 15 LB1312 Oilflam 700.1-800.1 PR/MD C111 – C112 INPUT CONFIGURATION INDICATIONS Analog input 1 (actual value) Analog Input 3 (external temperature) Pt1000, 2-wire, Landis & Staefa IEC 751 No function (probe not active) FT-TP/… (passive probe) External probe Pt 1000, 2-wire, QAC22 (passive probe) Ni1000, 2-wire, Landis &...
  • Page 16 LB1312 Oilflam 700.1-800.1 PR/MD WHEN REPLACEMENT IS NECESSARY, PROCEED AS SHOWN IN FIGURES A-B-C BELOW Insert the RWF 40 regulator through the relative opening in the electrical panel (A). Insert the fixing anchors and screws into the slots, and secure the unit to the panel (B). To open the regulator, squeeze the cover from the ends as shown, and lift out (C).
  • Page 17 LB1312 Oilflam 700.1-800.1 PR/MD PARAMETERS Parameter Display Ecoflam setting Ecoflam setting Ecoflam setting (passive probe) (passive probe) (active probe) QAE22 FT-TP/1000 QBE620-P... Limit value of limit comparator Switching differential for limit comparator HYSt Proportional band Pb.1 Derivative time Integral action time Dead band (neutral zone) Actuator running time (sec.)
  • Page 18 LB1312 Oilflam 700.1-800.1 PR/MD - pag.18 -...
  • Page 19 LB1312 Oilflam 700.1-800.1 PR/MD - pag.19 -...
  • Page 20 LB1312 Oilflam 700.1-800.1 PR/MD - pag.20 -...
  • Page 21 LB1312 Oilflam 700.1-800.1 PR/MD - pag.21 -...
  • Page 22 LB1312 Oilflam 700.1-800.1 PR/MD OILFLAM 700.1 MD N° DESCRIPTION code - PUMP SUNTEC TA5C30106 P148/2 - HEATING ELEMENT PUMP 50 W R110 - HOSES 25 x1500 S901/2 - COIL EL011 V523 - CONETTORE BOBINA EL011 V1119/07 - MANOMETER S601/1 - COVER BFC04262/038 - GLASS BFC02004...
  • Page 23 LB1312 Oilflam 700.1-800.1 PR/MD OILFLAM 700.1 MD N° DESCRIPTION code 59 - ROD BFT05113/001 60 - COUPLING (FAN) BFV10220 61 - UNION (FAN) BFV10203/4 62 - COUPLING BFV10203/3 63 - COUPLING BFV10201/1 64 - UNION (PUMP) BFV10201/6 65 - COUPLING (PUMP) BFV10201/2 66 - GAS VALVE BRAHMA EG12S...
  • Page 24 DESIGN AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE La ECOFLAM S.p.A si riserva il diritto di apportare ai prodotti quelle modifiche che riterrà necessarie o utili, senza pregiudicarne le caratteristiche principali. Ecoflam S.p.A. via Roma, 64 - 31023 RESANA (TV) - Italy - tel. 0423/715345 r.a.
