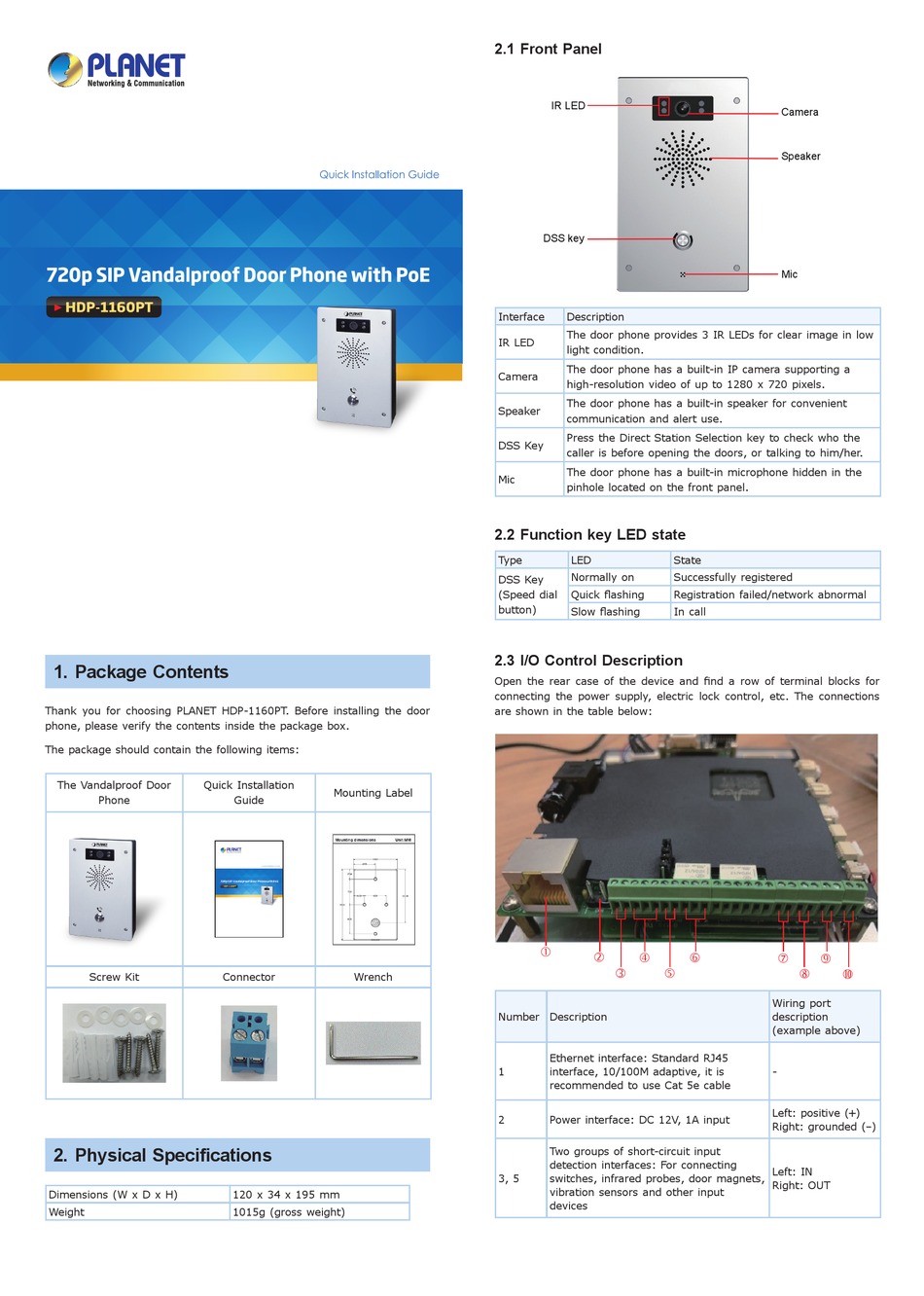

Planet HDP-1160PT Quick Installation Manual

1. Package Contents

Thank you for choosing PLANET HDP-1160PT. Before installing the door
phone, please verify the contents inside the package box.
The package should contain the following items:
The Vandalproof Door Quick Installation
Phone
Screw Kit
2. Physical Specifications
Dimensions (W x D x H)
Weight
Mounting Label
Guide
Connector Wrench
120 x 34 x 195 mm
1015g (gross weight)
– 1 –

2.1 Front Panel

IR LED
DSS key
Interface Description
The door phone provides 3 IR LEDs for clear image in low
IR LED
light condition.
The door phone has a built-in IP camera supporting a
Camera
high-resolution video of up to 1280 x 720 pixels.
The door phone has a built-in speaker for convenient
Speaker
communication and alert use.
Press the Direct Station Selection key to check who the
DSS Key
caller is before opening the doors, or talking to him/her.
The door phone has a built-in microphone hidden in the
Mic
pinhole located on the front panel.

2.2 Function key LED state

Type LED
Normally on
DSS Key
(Speed dial Quick flashing
button)
Slow flashing

2.3 I/O Control Description

Open the rear case of the device and find a row of terminal blocks for
connecting the power supply, electric lock control, etc. The connections
are shown in the table below:



 
Number Description
Ethernet interface: Standard RJ45
1 interface, 10/100M adaptive, it is
recommended to use Cat 5e cable
2 Power interface: DC 12V, 1A input
Two groups of short-circuit input
detection interfaces: For connecting
3, 5 switches, infrared probes, door magnets,
vibration sensors and other input
devices
Camera
Speaker
Mic
State
Successfully registered
Registration failed/network abnormal
In call
 



Wiring port
description
(example above)
-
Left: positive (+)
Right: grounded (–)
Left: IN
Right: OUT
