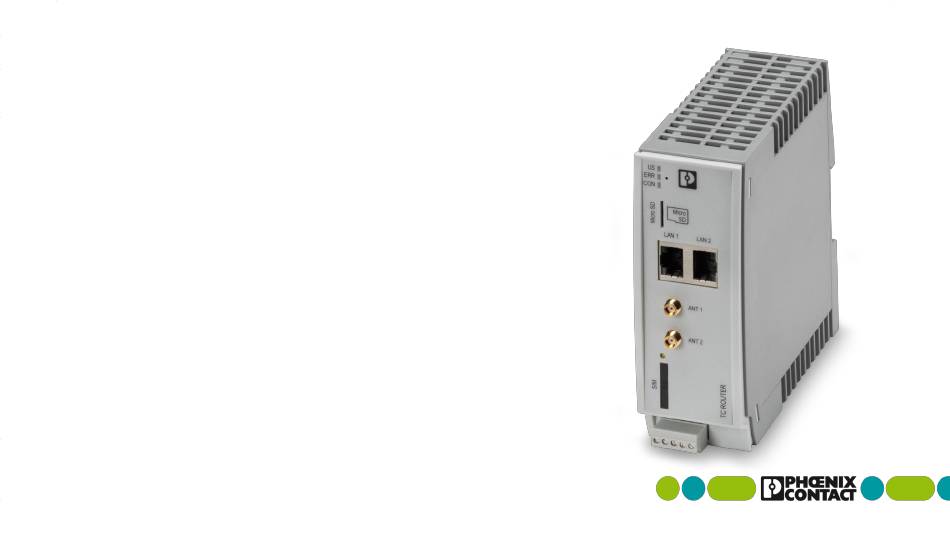

  • Page 1 TC Router Setup Guide...
  • Page 2 TC Router Setup: Connect Power 1. Connect the TC Router to a 24V DC power supply...
  • Page 3 TC Router Setup: Insert SIM Card 1. Remove SIM Card holder with push- pin or paperclip 2. Insert SIM card with valid data plan into SIM Card holder 3. Insert SIM card into TC Router...
  • Page 4 TC Router Setup: Attach Antenna 1. Attach at least one antenna to ANT 1 2. Attach a second antenna to ANT 2 for diversity Antenna Part Numbers: • 2702273 (5m Cable) • 2702274 (0.5m Cable)
  • Page 5 TC Router Setup: Change IP Address 1. Click network icon in bottom right corner 2. Click “Network & Internet Settings...
  • Page 6 TC Router Setup: Change IP Address 1. Select Ethernet...
  • Page 7 TC Router Setup: Change IP Address 1. Select “Change Adapter Options”...
  • Page 8 TC Router Setup: Change IP Address 1. Right click on the Ethernet port connected to the TC Router 2. Select “Properties”...
  • Page 9 TC Router Setup: Change IP Address 1. Double-click “Internet Protocol Version 4 (TCP/IPv4)” ***Alternatively*** 1. Select “Internet Protcol Version 4 (TCP/IPv4)” and click Properties...
  • Page 10 TC Router Setup: Change IP Address 1. Change IP Address to 192.168.0.X (X Can be any number between 0 and 255, EXCEPT 1) 2. Set the Subnet Mask to 255.255.255.0...
  • Page 11 TC Router Setup: Login 1. Open a web browser and enter https://192.168.0.1 2. If you get a security warning, Click “more information”...
  • Page 12 TC Router Setup: Login 1. Ignore the security warning and select “Go on to the webpage (not recommended). Have no fear. This step is necessary and will not put your computer at risk...
  • Page 13 TC Router Setup: Login 1. Click “Login” 2. Enter login credentials. Username: admin Password: admin Click “OK”...
  • Page 14 TC Router SIM Setup 1. Click the Wireless Network dropdown menu 2. Select SIM 3. Change Country to USA (310) and click Set 4. If your cellular provider did not provide you with a custom APN: a) Set the APN to Managed Internet APN.
  • Page 15 TC Router Setup: Enable Packet Data 1. Click the Wireless Network dropdown menu 2. Select Packet data setup 3. Click the “Enabled” radio button across from Packet data 4. Click Apply...
  • Page 16 1. Click the Status dropdown menu, and select Radio 2. Check the signal level. A strong signal is between -50 and -80 dbm 1. Move the TC Router as necessary to achieve a better signal 3. Verify Packet data is online...
  • Page 17 TC Router Setup: Troubleshooting If the TC router is offline or does not have a strong signal after setup, try rebooting the Router 1. Click the System dropdown menu 2. Select Reboot 3. Click Reboot NOW 4. Wait ~2 minutes and...
