Connections

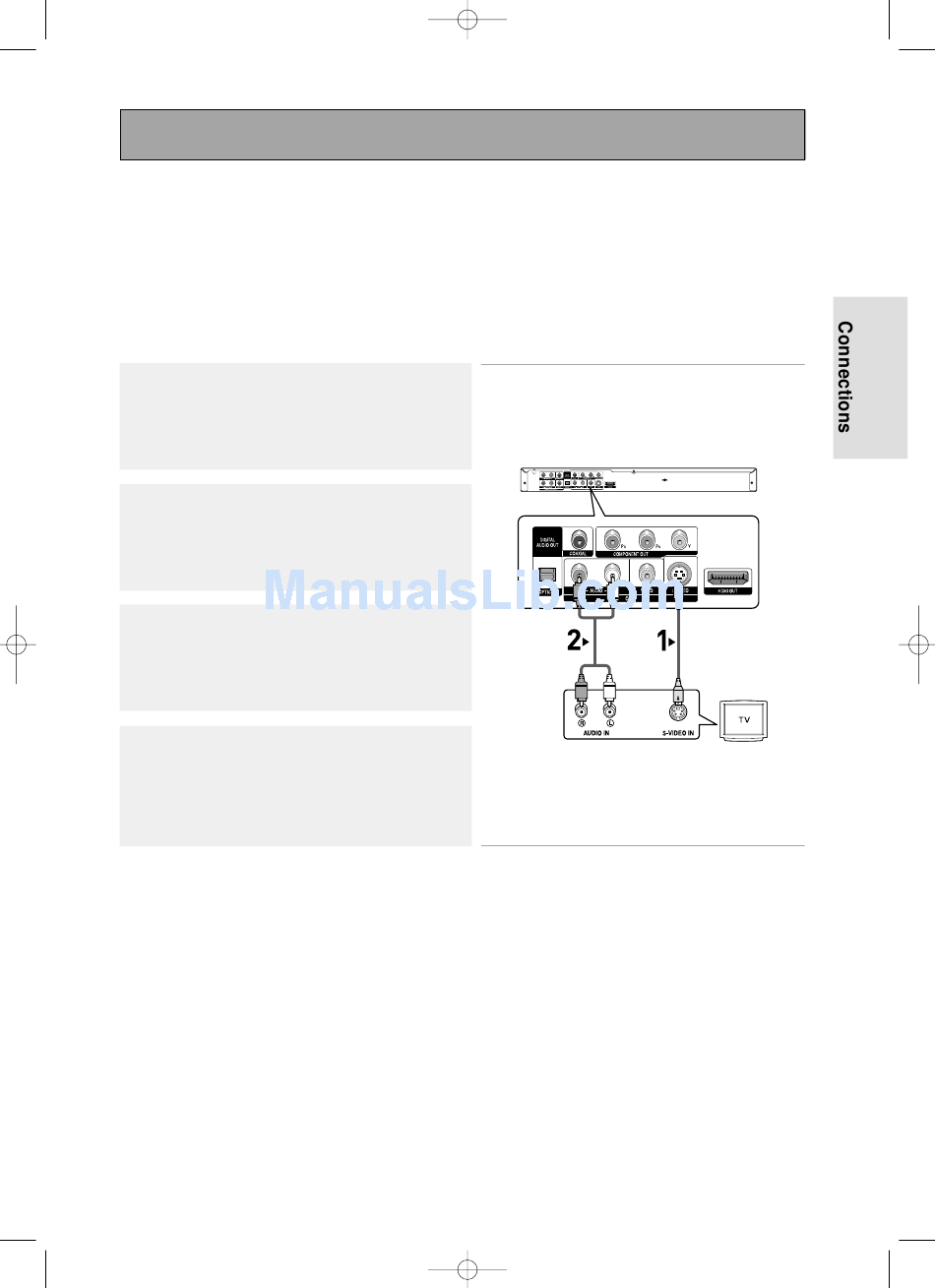

Connection to a TV (S-Video)
- Connecting to your TV using an S-Video cable.
- You will enjoy high quality images. S-Video separates the picture element into black and white(Y)
and colour(C) signals to present clearer images than regular video input mode.
(Audio signals are delivered through the audio output.)
1
Using an S-Video cable (not supplied), connect the S-VIDEO
OUT terminal on the rear of the DVD player to the
S-VIDEO IN terminal of your TV.
2
Using the audio cables, connect the AUDIO (red and white)
OUT terminals on the rear of the DVD player to the AUDIO (red
and white) IN terminals of your TV.
Turn on the DVD player and TV.
3
Press the input selector on your TV remote control until the
S-Video signal from the DVD player appears on your TV screen.
4
Set the Video Output to COMPOSITE/S-VIDEO in the Display
Setup menu. (See pages 64 to 65)
You can use the V.OUT button to change the Video Output
mode. (See page 14)
Note
- If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 20 to 22)
- The number and position of terminals may vary depending on the TV set.
Please refer to the user's manual of your TV.
Page 15
ENG-15
WHITE
RED
S-Video Cable
Audio Cable
(not supplied)
WHITE
RED
