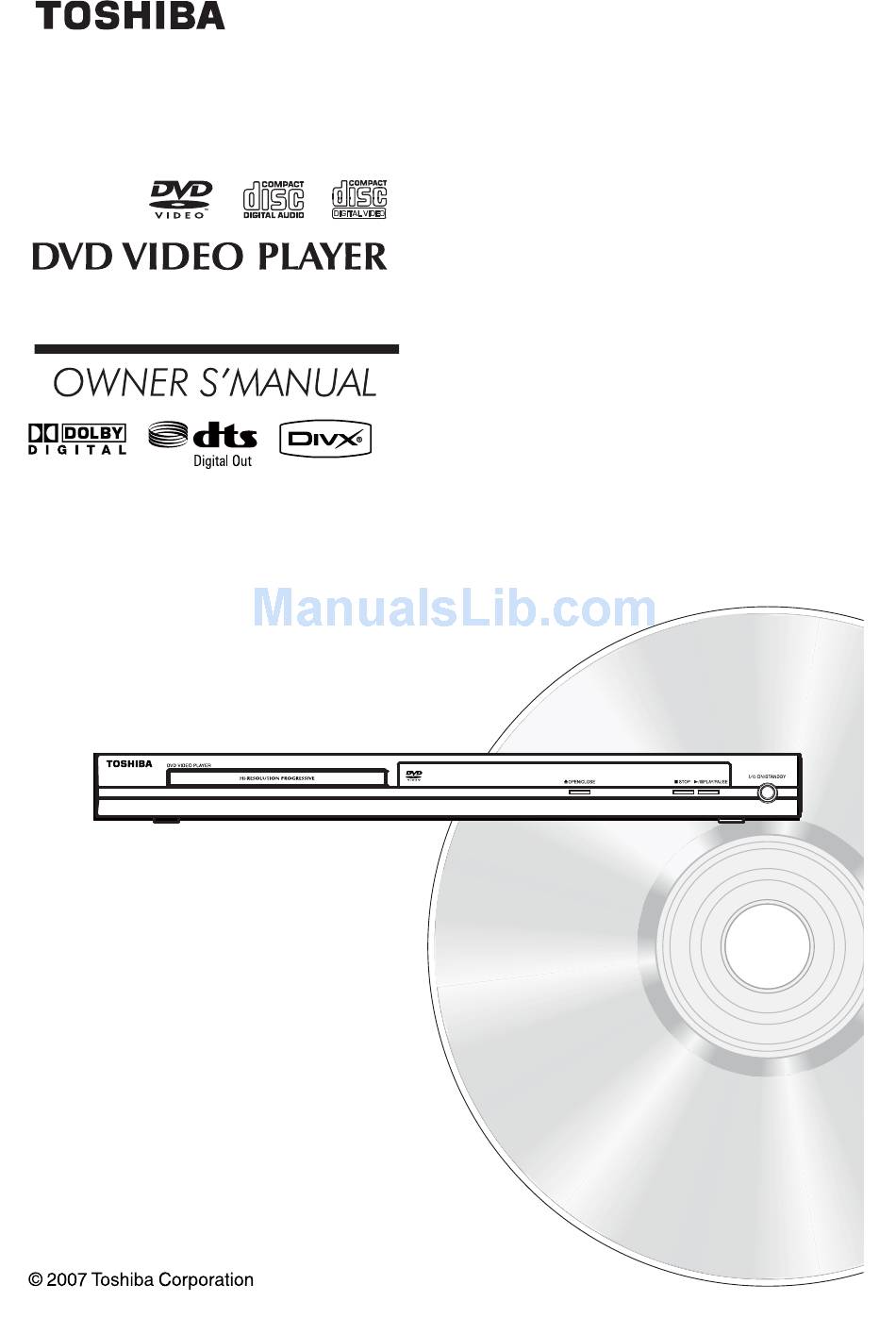

- Page 1 SD-680KY...
-
Page 2: Introduction
Introduction SAFETY PRECAUTIONS The lightning flash with arrowhead symbol,within an equilateral triangle,is intended to alert the user to the presence of uninsulated dangerous voltage” within the product s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 3 Introduction (continued) CAUTION: This Digital Video Disc Player employs a Laser System. To ensure proper use of this product, please read this owner’s manual carefully and retain for future reference. Should the unit require maintenance, contact an authorized service location. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
-
Page 4: Table Of Contents
Introduction (continued) Table of Contents Introduction SAFETY PRECAUTIONS IMPORTANT SAFETY INSTRUCTIONS Table of Contents Region Codes Connections Connecting to television Connecting to a stereo system Connecting to a Digital AV Receiver Connecting the power cord Product Overview Front and Rear panels Remote Control Getting Started Inserting Batteries... -
Page 5: Region Codes
Introduction (continued) DANGER! CAUTION! High voltage! Do not open the device. You run Do not use solvents such as benzene, thinner, com- the risk of getting an electric shock. mercially available cleaners, or anti-static sprays in- tended for analog discs. Since the optical unit (laser) The machine does not contain any user-service- of the DVD system operates at a higher power than able parts. - Page 6 Introduction (continued) Region Discs that can be played A LL A LL A LL A LL A LL A LL Helpful hint: before making or changing any connections, make sure that all the devices are disconnected from the power outlet.
-
Page 7: Connections
Connections IMPORTANT! The progressive scan video quality is only pos- Connecting to television sible when using Y P and a progressive scan TV is required. IMPORTANT! Use the component video cables (red/blue/green) to You only need to make one video connection connect the DVD player s Y P jacks to the Cor- from the following options, depending on the... -
Page 8: Connecting To A Stereo System
Connections (continued) Receiver has a PCM, Dolby Digital or MPEG decoder Connecting to a Stereo System Select one of the video connections (CVBS VIDEO IN or COMPONENT VIDEO IN) depending on the options available on your TV. Connect the COAXIAL jack of the DVD player to the corresponding Digital Audio In jack on your Receiver (cable not supplied). -
Page 9: Product Overview
Product Overview Front and Rear panels ON/STANDBY Turns the player on or switches it to stand- Disc tray by mode Place a disc here PLAY/ PAUSE Display Starts or pauses playback Shows information about the current status of the DVD Player STOP Stops playback IR Sensor... -
Page 10: Remote Control
Product Overview(continued) Remote Control See the page in [ ] for details. REMOTE SIGNAL EMITTER DISPLAY [ 14 ] [ 10 ] -Displays information on -Point remote control to the sensor on TV screen during playback the front panel OPEN/CLOSE [ 12 ] ON / STANDBY -Open/close the disc tray... -
Page 11: Getting Started
Getting Started Turn on the TV and set it to the correct video-in channel. You should see the blue DVD background Inserting Batteries screen. Usually these channels are between the lowest and highest channels and may be called FRONT, A/V IN or VIDEO. See your TV s manual for more details. -
Page 12: Setting The Language
Getting Started (continued)/Playback from Disc Press SETUP. Activating Progressive Scan Press to select { Language } 1.Ensure your TV supports Press to highlight { OSD Language }, then press Progressive Mode 2.If there is a distorted picture on the TV, wait 15 seconds for Press to select a language and press OK. -
Page 13: Starting Disc Playback
Because of problems and errors that can occur during the creation of DVD and CD Software and/or Tips: the manufacture of DVD and CD discs. Toshiba -Do not overturn the DVD player while disc loading, cannot assure that this DVD player will successfully playing or ejecting. -
Page 14: Operations For Video Playback (Dvd/Vcd/Svcd)
Playback Feature(continued) Use Number buttons (0-9) to enter valid chapter / from last chosen track / title / chapter or select "Clear track number directly. For the track/chapter numbers All" to clear all the programmed tracks/titles/chapters. which are greater than 9 , use button. -
Page 15: Viewing The Disc Playback Information
Playback Feature(continued) For Video CD, Audio CD Track Time (desired time of the current track) -Repeat Single (currently playing track) Disc Time (desired time of the disc) -Repeat All (entire disc) PBC ON -Off (cancel) Time (desired time of the current track) For DVD: ®... -
Page 16: Playing A Divx ® Disc
Playback Feature(continued) open the folder. When PREV is pressed after the first 5 Press to select a track/file. seconds of playback, playback will start from the Press OK to confirm. beginning of the current track. If you press the button within the first 5 seconds, playback will start from the Tips: - If you highlight on a jpeg file, a preview will appear. -
Page 17: Dvd Menu Options
DVD Menu Options mode. means the feature is not available or not possible to Program View: To view tracks/files in the Pro- change at the current state. gram View list. It is disabled if the Program View list to select a setting and press OK to con- is empty. -
Page 18: Using The Video Setup Menu
DVD Menu Options (continued) without distortion. to select a setting and press OK to con- Using the Video setup menu firm. Tip: Press SETUP on the remote control. - Depending on the type of discs, you may not be able to view the mode as selected. The system setup menu appears. -
Page 19: Using The Audio Setup Menu
DVD Menu Options (continued) Press to highlight one of the following options. { Off } Brightness To deactivate the digital audio output. For example, if Increase the value to brighten the picture or vice you use the AUDIO OUT jacks to connect to a TV or versa. -
Page 20: Using The Rating Setup Menu
DVD Menu Options (continued) to select a rating level and press OK to confirm. Using the Rating setup menu Select { 8 Adult } to disable parental level and allow virtually all discs to play. Press SETUP on the remote control. DVDs that are rated higher than the level you se- The system setup menu appears. -
Page 21: Tray Lock
DVD Menu Options (continued) Example: { Use Default Settings } The options for the selected item appears. Tray Lock If the selection in the menu is greyed out, that means the feature is not available or not possible to Press SETUP button, then press the number button change at the current state. -
Page 22: Specifications
Specifications DVD Video player/Outputs/Supplied Accessaries DVD Video player Power supply 110 V -240V AC, 50/60 Hz Power Consumption Mass 1.5 kg External dismensions 430 X 43 X 209 mm (W/H/D) Signal System PAL, NTSC Laser Semiconductor laser, wavelength 650/780 nm Frequency range DVD linear sound : 48 kHz sampling 4 Hz to 22 kHz 96 kHz sampling 4 Hz to 44 kHz... -
Page 23: Troubleshooting
Do not open the DVD player as there is a risk of electric shock. If a fault occurs, first check the points listed below before taking the DVD player for repair. If you are unable to remedy a problem by following these guides, consult your dealer or TOSHIBA for help. Problem...
