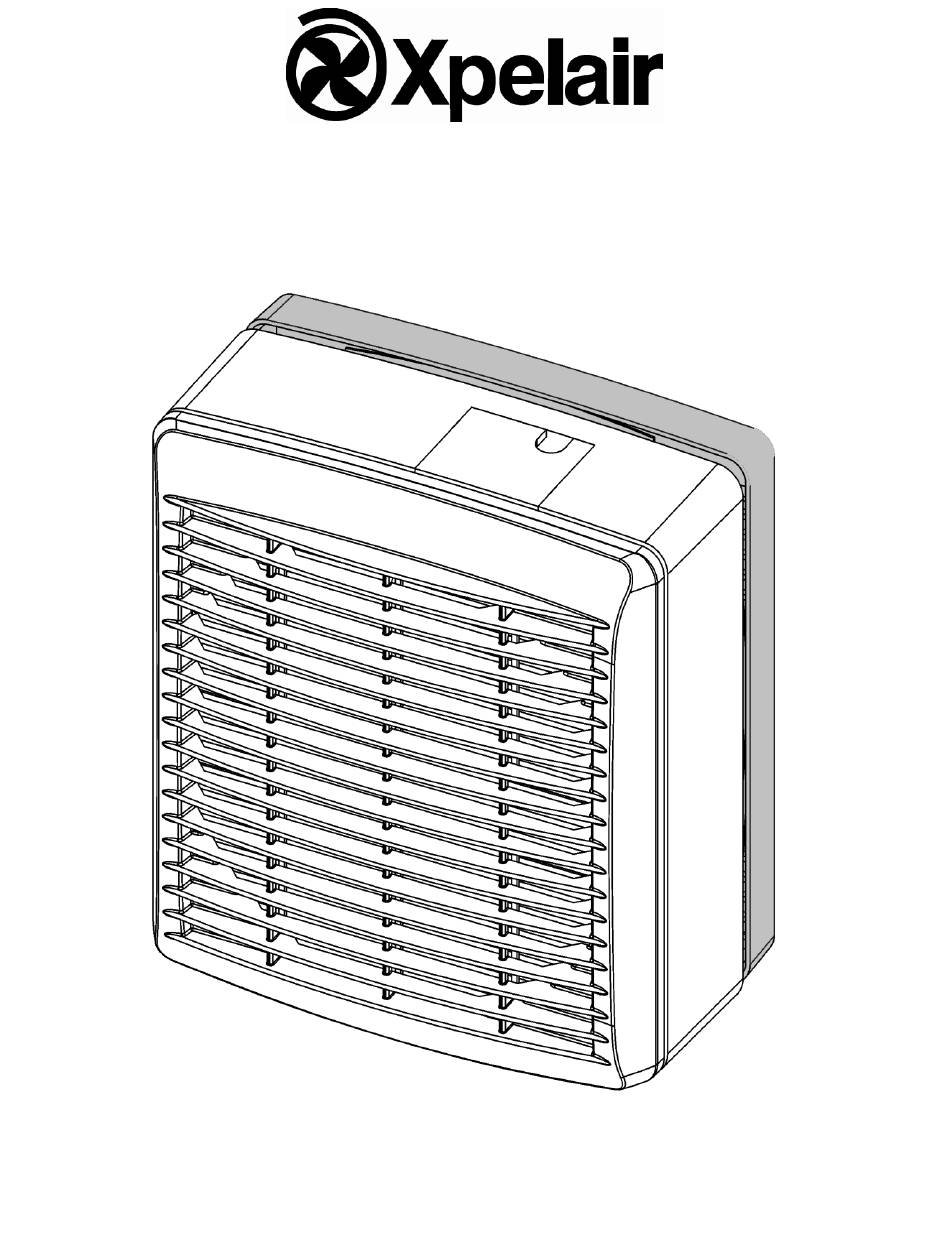

GX9 EC3 fan
Installation and maintenance instructions
Retain for future reference

Advertisement

loading
Need help?

Need help?

Do you have a question about the GX9 EC3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Xpelair GX9 EC3

  • Page 1 GX9 EC3 fan Installation and maintenance instructions Retain for future reference...
  • Page 2 WORN • Mortar to make good the hole. DURING ALL DRILLING OPERATIONS. • Wall Kit WK9/8 or WK9/11 (Available from Xpelair) or a tube If installing in a window, get a ready cut pane to the dimensions 253mm internal diameter.
  • Page 3 1. Before cleaning, isolate the fan completely from the mains Plate. supply. Allow 3 minutes for the impeller to stop and the If installing a GX9 EC3 with an On/Off switch and no speed powered shutter to close. controller: 2. Remove the inner grille and back-draught shutter (see section 6) 4.
  • Page 4 Fig. 3 Fig. 1 Fig. 2...
  • Page 5 Fig. 5 Fig. 4 Fig. 6a Fig. 8a Fig. 8b Fig. 7 Fig. 6b...
  • Page 6 Fig. 9 Fig. 10 Components (Fig. 10) A. Inner Grille B. Back draught shutter assembly C. Fan assembly D. Inner Clamp Plate E. Outer Clamp Plate / Grille F. Ladder Strips G. Connector Plate...
  • Page 7 This page has been left blank for the addition of any notes you may wish to make.
  • Page 8 • UK: The fan is guaranteed against defects for 5 years from the date of purchase. • Please keep your purchase receipt. • If you have any problems, contact Xpelair’s Head Office at the address shown below. Technical advice and service Customers outside UK –...
