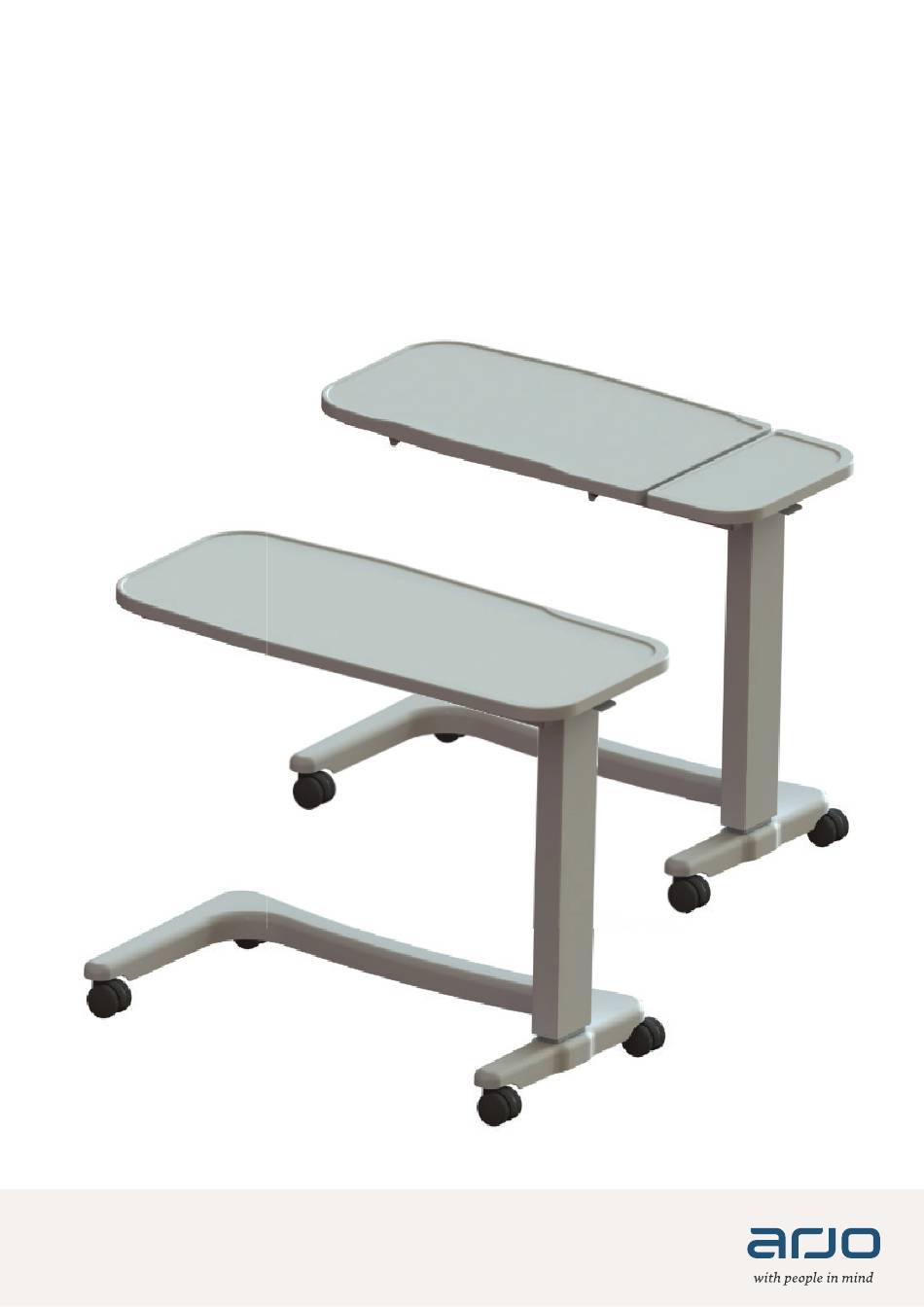

- Page 1 INSTRUCTIONS FOR USE Arjo Prioma Overbed Table 04.PA.01-EN_3 · 10/2019...
-
Page 2: Table Of Contents
CONTENTS Introduction Components Diagram Assembly Operation Cleaning Maintenance Warranty & Service Regulatory Information Specifications Symbols & Labels Used Warnings, Cautions and Notes WARNING: Indicates possible hazard in procedures or conditions which, if not correctly followed, could result in death, injury or other serious adverse reactions. Caution: Indicates possible hazard in procedures or conditions which, if not correctly followed, could result in equipment damage or failure. -
Page 3: Introduction
1. INTRODUCTION The Arjo Prioma Overbed Table has a number of variants with firm flat surfaces suitable for everyday activities such as eating, writing, reading etc. The single column construction and adjustable height makes it suitable for use with most types of beds and chairs. -
Page 4: Components Diagram
2. COMPONENTS DIAGRAM A. Main tabletop B. Side tabletop C. Height adjustment lever D. Outer column E. Inner column F. Castors (swivel) x 4 G. Book rest - Thermoform raised perimeter edge H. Top frame Base moulded cover J. Rastomat Page | 3 Commercial in confidence. -
Page 5: Assembly
3. ASSEMBLY The Same Assembly Procedure is Used for all OBT Variants. Assembly Instructions Components List: Tools Required: Base Assembly (Castors Fitted) Spanner 13mm (ring or open) • • Lift Column Assembly Allen Key 5mm • • • Top Assembly (Either Fixed or Split Top) M8 x 50mm Bolts x 3 •... - Page 6 3. ASSEMBLY – (continued) Place Top Frame assembly face down onto a carpeted or similar protective surface in order to prevent damaging or scratching the top. Caution Split tops only; take care not to allow the main (hinged) top to swing away from the frame as this could damage the mechanism and cause injury.
-
Page 7: Operation
4. OPERATION Height Adjustment (All OBT Variants) To Lower: support the top with one hand and lift the release lever (A) Figure 5. located at the top of the column. Push down on the tabletop to the required height and let go of the lever to lock in position. -
Page 8: Cleaning
5. CLEANING Cleaning It is strongly recommended that protective clothing be used when carrying out any cleaning processes on the Prioma Overbed Table. • Wipe the Overbed Table with a soft cloth moistened with hot water and mild detergent (or hospital’s recommended cleaning solution). -
Page 9: Maintenance
Other than general maintenance activities all other service or repair work must be performed by qualified and trained persons who are approved by Arjo. Check that the height adjustment mechanism functions smoothly and that the main •... -
Page 10: Warranty & Service
Arjo’s standard terms and conditions apply to all sales. A copy is available on request. These contain full details of warranty terms and do not limit the statutory rights of the consumer. -
Page 11: Specifications
9. SPECIFICATIONS Variant OBT1 OBT2 OBT3 OBT4 700 x 425 Tabletop dimensions (mm) 900 x 425 886 x 396 880 x 396 195 x 425 Height adjustment range (mm) 745 x 1055 745 x 1055 750 x 1060 750 x 1060 24°, 31°, 37°, Tilt angle (approx.) 42°, 47°... -
Page 12: Symbols & Labels Used
10. SYMBOLS & LABELS USED Refer to Instructions for use Safe Working Load Manufacturer Date of manufacture Serial Number Variant Number Table Mast Assembly Warning Label Page | 11 Commercial in confidence. User Manual POBT-REV4-241019... - Page 13 Page | 12 Commercial in confidence. User Manual POBT-REV4-241019...
- Page 14 At Arjo, we are committed to improving the everyday lives of people affected by reduced mobility and age-related health challenges. With products and solutions that ensure ergonomic patient handling, personal hygiene, disinfection, diagnostics, and the effective prevention of pressure ulcers and venous thromboembolism, we help professionals across care environments to continually raise the standard of safe and dignified care.
