- Page 1 Defibtech DBP-2009 Automated External Defibrillator (AED) Rechargeable Battery Pack and Charging Stand User Manual ELECTRONIC DISTRIBUTION DAC-U2519EN-BB...
- Page 2 Notices Defibtech shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. Information in this document is subject to change without notice. Names and data used in the examples are fictitious unless otherwise noted.
-
Page 3: Table Of Contents
Contents 1 Introduction .................1 1.1 Overview .................1 2 Safety Information ...............1 2.1 Warnings .................2 2.2 Cautions ..................3 3 The Battery Pack and Charging Stand .........4 4 Setup Instructions ...............5 4.1 Assembly .................5 4.2 Charging the Battery Pack .............5 4.3 Removing the Battery Pack After Charging ......5 4.4 Post-Charging and Storage .............6 4.5 After Each Use ................6 5 Troubleshooting ..............6... - Page 4 DAC-U2519EN-BB...
-
Page 5: Introduction
AC outlet connection for use with interchangeable plug adapters. The Wall Charger’s cable inserts in the Charger Port on the Charging Stand. The Charging Stand is a stand-alone item, intended for indoor use only. Refer to the appropriate Defibtech DDU-2000 series AED User Manual for AED specifications. -
Page 6: Warnings
“Do not use” or “To be repaired” label on WAR NI NG the Battery Pack or Charging Stand and contact your local distributor or Defibtech representative. Care should be taken to maintain the condition of the Wall Charger cable. -
Page 7: Cautions
2.2 Cautions Only charge a Defibtech-specified Rechargeable Battery Pack in the Charging Stand. If an unspecified battery pack or a non-rechargeable battery is charged, it may cause CAUTIO N overheating, explosion, fire or leakage. Do not disassemble or modify the Battery Pack or Charging Stand. -
Page 8: The Battery Pack And Charging Stand

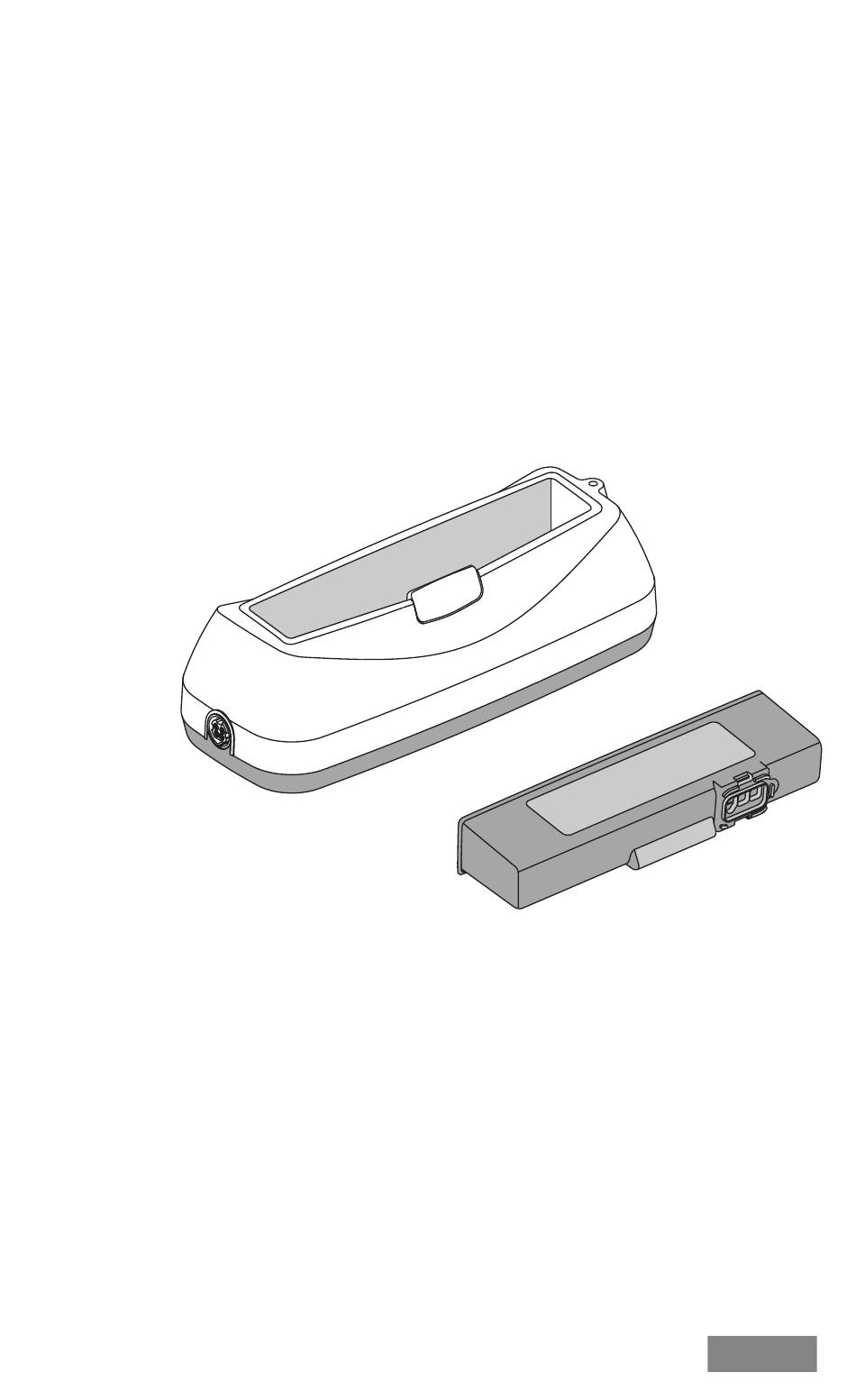

3 The Battery Pack and Charging Stand Battery Pack Slot Indicator Battery Release Latch CHARGING STAND Charger Port RECHARGEABLE Indicator BATTERY PACK Figure 1 Connector WALL Release CHARGER Connector Component Description DBC-2001 Charging Stand DBP-2009 Rechargeable Battery Pack DPM-2001 Wall Charger DAC-U2519EN-BB... -
Page 9: Setup Instructions
Setup Instructions 4.1 Assembly Use only the Wall Charger supplied with the Charging Stand. Using other chargers or cables may cause unsafe conditions. WAR NI NG Place the Charging Stand near an accessible AC power outlet on a level surface. -
Page 10: Post-Charging And Storage
(i.e. spare AEDs or batteries). Note: Since all rechargeable battery packs discharge their capacity regardless of use, Defibtech does not recommend storing the DBP-2009 Rechargeable Battery Pack with any DDU-2000 Series AED as an inactive spare or in situations where storage duration is less than the battery pack stand-by life. -
Page 11: Troubleshooting Table
Note: If the actions in the following table do not solve the problem, attach a “Do not use” or “To be repaired” label or similar on the affected item and contact your local distributor or Defibtech representative. Symptom/Observation Possible Cause/Criteria... -
Page 12: Disposal
CAUTIO N waste. Otherwise, it may cause infection. Refer to the appropriate Defibtech AED User Manual for disposal of other items. 6.1 Notice to European Union Customers The crossed-out wheeled bin symbol... -
Page 13: Cleaning And Disinfecting
Charging Stand and Wall Charger briefly flashes green. See Section 4.5 of this User Manual for recommended maintenance of the Bat- tery Pack when installed in a Defibtech AED. 8.1 Repair Parts Availability Policy The Battery Pack, Charging Stand, Wall Charger, Wall Charger connector and cable contain no user serviceable parts. -
Page 14: Specifications
IEC 60601-1-2: 2010 The Charging Stand and the Rechargeable Battery Pack (when installed in the AED) has the same EMC performance specifications as the Defibtech AED powered by a non-rechargeable battery. Refer to the appropriate Defibtech AED User Manual for details. -
Page 15: Charging Stand Specifications (Including Wall Charger)
9.2 Charging Stand Specifications (including Wall Charger) Power Requirements for Wall Charger Line voltage: 100 to 240 V (nominal) Line frequency: 50/60 Hz Power input: 0.6A Environment (Operating Conditions) Temperature: 0 to 40°C (32 to 104°F) Humidity: 15 to 95% (non-condensing) Environment (Storage and Transport Conditions) Temperature: –20 to 80°C (–4 to 176°F) Humidity: 15 to 95% (non-condensing) -
Page 16: Glossary Of Symbols
10 Glossary of Symbols Symbol Meaning Caution, consult accompanying documents. Consult operating instructions. Handle with care. Transportation and storage requirements. See environmental requirements. Keep dry. Do not damage or crush. Do not expose to high heat or open flame. Do not incinerate. X X X X Operational temperature limitation. - Page 17 Symbol Meaning For USA users only. Federal Law (USA) restricts this device to sale by or on the order of a physician. Y Y Y Y Follow proper disposal procedures. Manufacturer. X X X X Serial number. Lot number (yy-ww). Catalogue number.
-
Page 18: Contacts
11 Contacts Defibtech, L.L.C. 741 Boston Post Road, Suite 201 Guilford, CT 06437 USA Tel.: 1-(866) 333-4241 (Toll-free within North America) 1-(203) 453-4507 Fax: 1-(203) 453-6657 Email: sales@defibtech.com (Sales) reporting@defibtech.com (Medical Device Reporting) service@defibtech.com (Service and Repair) DAC-U2519EN-BB...
