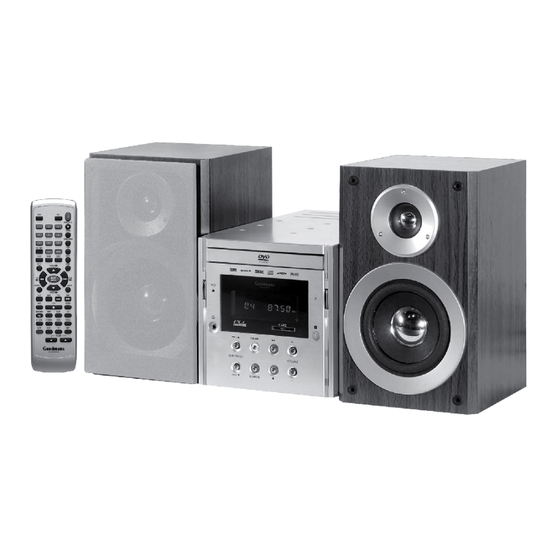

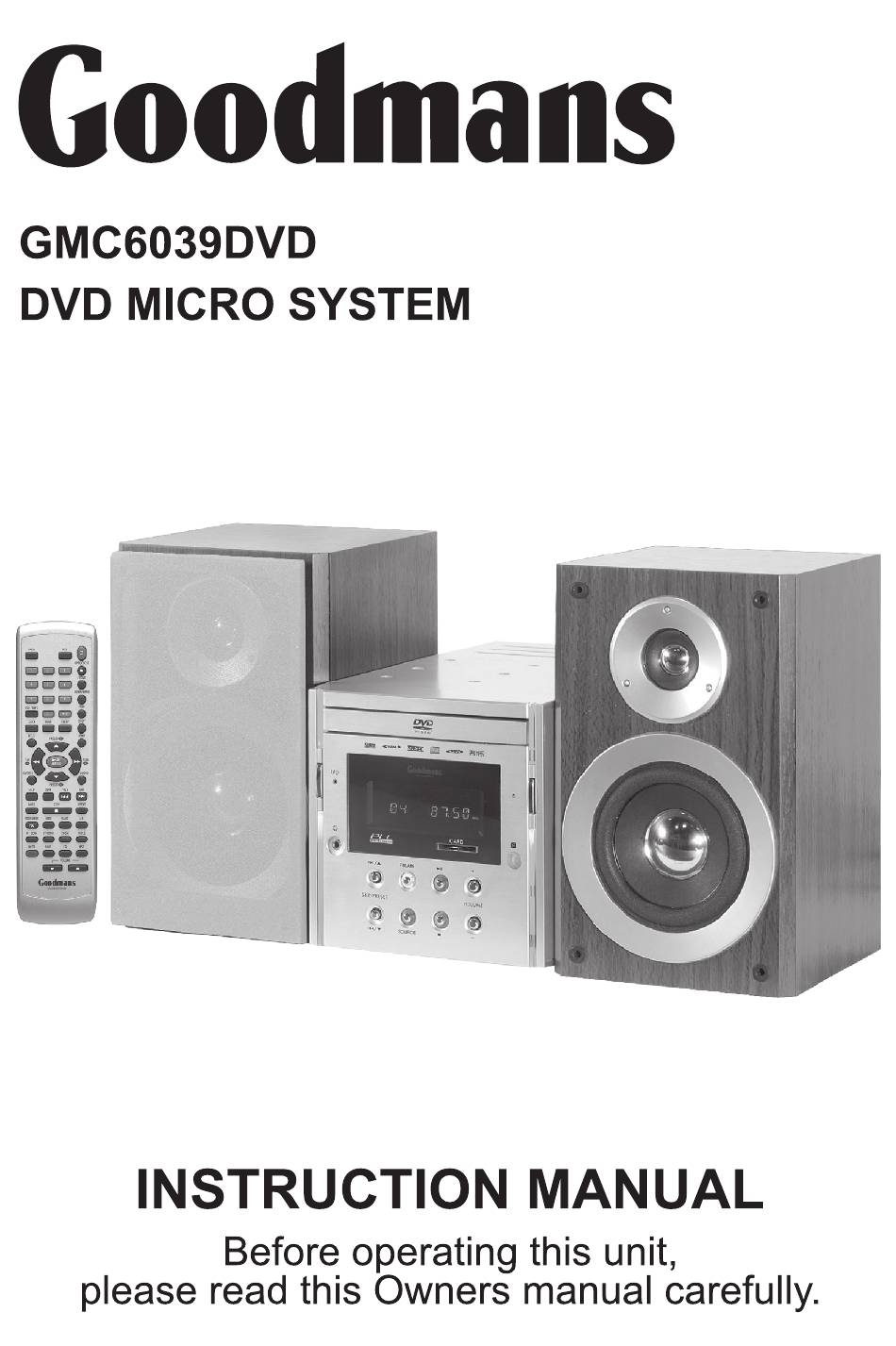

Goodmans GMC6039DVD Instruction Manual
  1. Manuals
  2. Brands
  3. Goodmans Manuals
  4. Stereo System
  5. GMC6039DVD
  6. Instruction manual

Goodmans GMC6039DVD Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GMC6039DVD and is the answer not in the manual?

Questions and answers

Related Manuals for Goodmans GMC6039DVD

Summary of Contents for Goodmans GMC6039DVD

  • Page 2: Table Of Contents

    INTRODUCTION This instruction manual is important to you. Please read it. In a short time it shows exactly how to connect, operate, and adjust this unit for best performance. It can save you money. It shows simple things to do and check before you call for help and save the cost of unnecessary service or call out charge.

  • Page 3: Important Safeguards

    IMPORTANT SAFEGUARDS PRE FITTED MAINS PLUGS For your convenience a mains plug has been fitted to this appliance. For your safety please observe the following information. 1. Should the fuse in the plug fail remove the plug from the wall socket and replace the fuse with a 3 Amp ASTA approved to BS 1362 fuse.

  • Page 4: Safety

    SAFETY WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. To completely disconnect from the power supply, the mains plug of the apparatus must be disconnected from the mains completely.

  • Page 5: Safety

    CAUTION : PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS OWNER’S MANUAL AND THOSE MARKED ON THE UNIT. KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard.

  • Page 6: Player Zones

    11. Unplug this apparatus during lightning storms or when unused for long periods of time. 12. Burden Do not place a heavy object on, or step on the product. The object may fall, causing serious personal injury and serious damage to the product. 13.

  • Page 7: Connections

    CONNECTIONS 1) Connecting to TV Use the supplied SCART cable to connect the DVD micro system to the TV as shown below: SCART CABLE CONNECTING Note: The switch on the rear panel must be in the SCART position. The unit can also be connected to the TV using the component connection as shown below: COMPONENT CABLE CONNECTING Note: The switch on the rear panel must be in the COMPONENT position.
  • Page 8 VIDEO CABLE CONNECTING Note: The switch on the rear of the unit must be in the component position. 2) Connecting to the Speakers This speaker utilises a bi-amplifier to give superior sound. This means that there are two sets of cable for each speaker.
  • Page 9 To connect the micro system to a dolby digital compatible amplifier connect using the digital out socket as shown below. Notes: To enjoy SURROUND SOUND using an external digital amplifier, the AUDIO OUT option of the setup menu must be changed accordingly.
  • Page 10 A.) Adjusting the position of the FM aerial While listening to an FM program ensure that the aerial is fully stretched and then move in various direction until the clearest reception is heard. B.) Adjusting the position of the MW aerial Connect the white MW aerial wire to MW aerial socket marked “...

  • Page 11: Main Unit

    MAIN UNIT REMOTE CONTROLS – Turns the system to or from standby. – Headphones socket for connecting a set of stereo head/earphones with 3.5 mm plug. Loudspeakers are turned off automatically after inserting headphones. – DISC MODE: Skip to next track/ chapter.TUNER MODE: Press briefly to select next radio preset.
  • Page 12 26. SLEEP – Press briefly to view the remaining 8. SUBTITLE – Press briefly to cycle through the available subtitles on a DVD. time left on the sleep timer (if set). Press and hold to set the sleep timer. 9. STEP – When in pause mode, press briefly to skip forward one frame at a time.

  • Page 13: Clock / Timer

    6. Repeat step 5 to set the minute for timer on. CLOCK / TIMER 7. Set the hour and minute for timer off using the same method. Clock Setting Activating the Timer In standby use the following steps to set the clock.

  • Page 14: Tuner/Band

    TUNER/BAND CD / DVD / VCD / MP3-CD Tuning to radio stations Adjusting the TV system 1. Press FM / MW on main unit or TUNER/BAND Before viewing the Video Disc DVD or VCD, on remote control to select Tuner. ensure that the set is switched to corresponding 2.

  • Page 15: Vcd Playback

    9. Press button on remote control once, the Selecting a desired track/passage player will enter prestop mode. In this – Skip forward, or skip backward a track by condition, press / ENTER key to resume pressing NEXT / or PREV / key , each playback from the stop point.

  • Page 16: Selecting A Desired Album And A Desired Track

    – The ID3 tags will be displayed on the TV screen 2. By navigation on TV screen, move the cursors when playing MP3 tracks with ID3. to item number of memory using PRESET or PRESET , or TUN or TUN Selecting a desired album and a desired key, press 0-9 numerical key on remote track...

  • Page 17: Card Playback

    4. When a picture playing , press PRESET CARD PLAYBACK or PRESET , or TUN or TUN The player can support 3 in 1 card (SD/MMC/ key to change the display angle: Memory Stick card) playback. Insert the SD/MMC/ PRESET : flip vertical Memory stick card into the card slot, then press PRESET...

  • Page 18: Setup Items Introduction

    c.) Press PRESET key to highlight the inserted or there is a frame frozen for more than 3 desired option. Press / ENTER or TUN minutes, the screen saver will be displayed. This key to select, the choices of that option feature can protect the screen from damage.

  • Page 19: System Setup

    • TV TYPE • RATING This option allows the video to be output in the The RATING option can be used to set the correct format depending the TV type that the maximum rating of DVD that can be viewed micro system is connected to.

  • Page 20: Language Setup

    LANGUAGE SETUP • MENU LANG Highlight the MENU LANG option, and press • OSD LANGUAGE PRESET or PRESET key to choose Highlight the OSD LANGUAGE option, and press the default menu language that should be used for PRESET or PRESET key to choose playback.

  • Page 21: Video Setup

    • HUE • DUAL MONO (LEFT + RIGHT) Choose this option to setup the L and R mono Use this option to adjust the hue of the video output. output mode; There are four modes in this option : STEREO, MONO L, MONO R, and MIX MONO. VIDEO SETUP AUDIO SETUP BRIGHTNESS...

  • Page 22: Speaker Setup

    • ANGLE SWITCH Use this option to select if the angle mark should SPEAKER SETUP be shown on the screen if there are different angles recorded for the current scene. If this DOWNMIX option is set to yes and there are alternate options ALL LG SPK ALL LG SPK BASS MODE...

  • Page 23: Troubleshooting

    THE PLAYER DOES NOT RESPOND TO THE TROUBLESHOOTING REMOTE CONTROL If it appears that your DVD-Video player is faulty, • Aim the remote control directly at the sensor on first examine with this checklist. It may be that the front of the player. something simple has been overlooked.

  • Page 24: Information For Users Applicable In European Union Countries

    INFORMATION FOR USERS APPLICABLE IN EUROPEAN UNION COUNTRIES This symbol on the product or on its packaging means that your electrical and electronic equipment should be disposed at the end of life separately from your household wastes. There are separate collection systems for recycling in EU.
