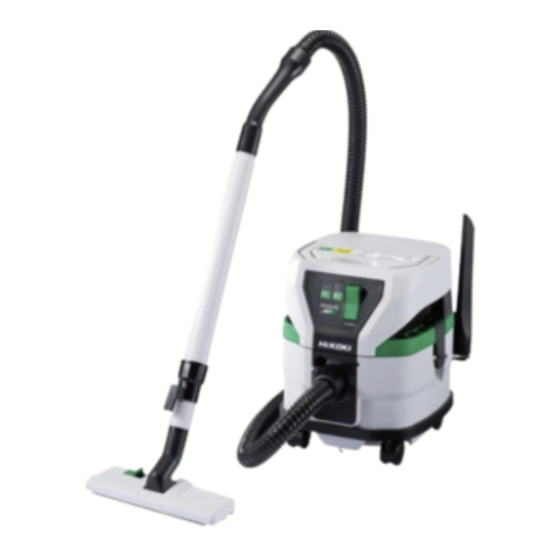

HIKOKI RP 3608DA Handling Instructions Manual

HIKOKI RP 3608DA Handling Instructions Manual

Cordless cleaner
Table of Contents

Advertisement

充电式吸尘器
Cordless Cleaner
RP 3608DA
保留备用
Keep for future reference
使用说明书
Handling instructions

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RP 3608DA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HIKOKI RP 3608DA

  • Page 1 充电式吸尘器 Cordless Cleaner RP 3608DA 保留备用 Keep for future reference 使用说明书 Handling instructions...
  • Page 2: Table Of Contents

    中文 目次 电动工具通用安全警告.......2 充电..............10 锂离子电池使用注意事项......4 使用前...............13 锂离子电池运输..........6 作业之前............13 USB 设备连接器使用注意事项 ....6 使用方式............14 充电式吸尘器的使用注意事项....6 浮子装置............22 符号...............8 USB 设备的充电方法 ........23 规格...............8 维护和检查.............24 标准附件.............9 故障排除............26 用途...............9 选择附件............29 电池安装/拆卸...........10 电动工具通用安全警告 警告! 阅读所有警告和所有说明。 不遵照以下警告和说明会导致电击、着火和/或严重伤害。 保存所有警告和说明书以备查阅。 在所有下列的警告中术语“电动工具”指市电驱动 (有线) 电动工具或电池驱动 (无线) 电动工具。 1) 工作场地的安全 a) 保持工作场地清洁和明亮。 混乱和黑暗的场地会引发事故。 b) 不要在易爆环境,如有易燃液体、气体或粉尘的环境下操作电动工具。...
  • Page 3 中文 d) 不得滥用电线。绝不能用电线搬运、拉动电动工具或拔出其插头。使电 线远离热源、油、锐边或运动部件。 受损或缠绕的软线会增加电击危险。 e) 当在户外使用电动工具时,使用适合户外使用的外接软线。 适合户外使用的软线将减少电击危险。 f) 如果在潮湿环境下操作电动工具是不可避免的,应使用剩余电流动作保 护器 (RCD)。 使用RCD可减小电击危险。 3) 人身安全 a) 保持警觉,当操作电动工具时关注所从事的操作并保持清醒。当你感到 疲倦,或在有药物、酒精或治疗反应时,不要操作电动工具。 在操作电动工具时瞬间的疏忽会导致严重人身伤害。 b) 使用个人防护装置。始终佩戴护目镜。 安全装置,诸如适当条件下使用防尘面具、防滑安全鞋、安全帽、听力 防护等装置能减少人身伤害。 c) 防止意外起动。确保开关在连接电源和/或电池盒、拿起或搬运工具时 处于关断位置。 手指放在已接通电源的开关上或开关处于接通时插入插头可能会导致危 险。 d) 在电动工具接通之前,拿掉所有调节钥匙或扳手。 遗留在电动工具旋转零件上的扳手或钥匙会导致人身伤害。 e) 手不要伸展得太长。时刻注意立足点和身体平衡。 这样在意外情况下能很好地控制电动工具。 f) 着装适当。不要穿宽松衣服或佩戴饰品。让衣服、手套和头发远离运动 部件。 宽松衣服、佩饰或长发可能会卷入运动部件中。 g) 如果提供了与排屑、集尘设备连接用的装置,要确保它们连接完好且使 用得当。...
  • Page 4: 锂离子电池使用注意事项

    中文 e) 保养电动工具。检查运动件是否调整到位或卡住,检查零件破损情况和 影响电动工具运行的其他状况。如有损坏,电动工具应在使用前修理好。 许多事故由维护不良的电动工具引发。 f) 保持切削刀具锋利和清洁。 保养良好的有锋利切削刃的刀具不易卡住而且容易控制。 g) 按照使用说明书,考虑作业条件和进行的作业来使用电动工具、附件和 工具的刀头等。 将电动工具用于那些与其用途不符的操作可能会导致危险。 5) 电池式工具使用和注意事项 a) 只用制造商规定的充电器充电。 将适用于某种电池盒的充电器用到其他电池盒时会发生着火危险。 b) 只使用配有特制电池盒的电动工具。 使用其他电池盒会发生损坏和着火危险。 c) 当电池盒不用时, 将它远离其他金属物体, 例如回形针、 硬币、 钥匙、 钉子、 螺钉或其他小金属物体,以防一端与另一端连接。 电池端部短路会引起然烧或火灾。 d) 在滥用条件下,液体会从电池中溅出 ; 避免接触。如果无意间碰到了, 用水冲洗。如果液体碰到了眼睛,还要寻求医疗帮助。 从电池中溅出的液体会发生腐蚀或燃烧。 6) 维修 a) 将你的电动工具送交专业维修人员,使用同样的备件进行修理。 这样将确保所维修的电动工具的安全性。 注意!...
  • Page 5 中文 警告! 为防止发生电池漏电、发热、冒烟、爆炸及提前点燃,请确保留意下列事项。 1. 确保电池上没有堆积削屑及灰尘。 ○ 在工作时确定削屑及灰尘没有掉落在电池上。 ○ 确定所有工作时掉落在电动工具上的削屑和灰尘没有堆积在电池上。 ○ 请勿将未使用的电池存放在曝露于削屑和灰尘的位置。 ○ 在存放电池之前,请清除任何可能附着在上面的削屑和灰尘,并请切勿将它 与金属零件 (螺丝、钉子等) 存放在一起。 2. 请勿以钉子等利器刺穿电池、 以铁锤敲打、 踩踏、 丢掷电池, 或将其剧烈撞击。 3. 切勿使用明显损坏或变形的电池。 4. 使用电池时请勿颠倒电极。 5. 请勿直接连接电源插座或汽车点烟器孔座。 6. 请依规定方式使用电池,切勿移作他用。 7. 如果已过了再充电时间,电池仍无法完成充电,请立即停止继续再充电。 8. 请勿将电池放置于高温或高压处,例如微波炉、烘干机或高压容器内。 9. 在发觉有渗漏或异味时,请勿接近远离火源。 10. 请勿在会产生强烈静电的地方使用。 11. 如有电池渗漏、异味、发热、褪色或变形,或在使用、充电或存放时出现任 何异常,请立即将它从装备或电池充电器拆下,并停止使用。...
  • Page 6: 锂离子电池运输

    中文 锂离子电池运输 当运输一个锂离子电池,请注意以下预防措施。 警告! 告知运输公司,包装内包含一个锂离子电 输出功率 池,告知该公司其功率输出并且要按照运 输公司的指引安排运输。 2 至 3 位数 ● 功率输出超过 100 Wh 的锂离子电池 被视作危险物品运输分类并且需要特 别申请程序。 图 2 ● 对于境外运输,您必须遵守国际法以 及输入国的规章和条例。 USB 设备连接器使用注意事项 发生意外情况时,本产品连接的 USB 中保存的数据可能发生损坏或丢失。使用 本产品前,请务必备份 USB 设备中的数据。 请注意,如 USB 设备中存储的数据发生损坏、丢失或连接的设备发生损坏,本 公司概不负责。 充电式吸尘器的使用注意事项 1. 务请在 -10℃〜 40℃的温度下进行充电。 温度低于...
  • Page 7 中文 10. 请勿吸下列物品 : 否则可能会造成起火或受伤。 ○ 油、热水、化学品或洗涤剂等发泡液体。 ○ 研磨或切割金属时产生的火花。 ○ 点燃的香烟等高温物品。 ○ 易燃物质 ( 汽油、 稀释剂、 苯、 煤油、 油漆等 )、 爆炸性物质 ( 甘油三硝酸酯等 )、 可燃物质 ( 铝、锌、镁、钛、红磷、黄磷、赛璐珞等 )。 ○ 钉子和剃刀等尖的物品。 ○ 木片、金属、石头、线材等 ○ 水泥粉和调色剂等固体物质以及金属粉末和碳粉等传导性细粉尘。 ○ 发泡液体,如油、沸水、化学液体和洗涤剂。液体,如水和油。可能会导致 火灾或受伤。 11. 使用前请正确装入过滤器。请勿在未装上过滤器或装在错误位置上的情况下 使用本产品,也勿使用撕裂的过滤器,否则可能会造成马达烧坏等问题。 12.
  • Page 8 中文 符号 警告! 如下所示的符号用于本机。使用前请务必理解其含意。 为降低伤害风险,用户必须阅 直流电 读使用说明书 额定电压 警告 规格 充电式吸尘器 型式 RP3608DA 电压 36 V 马达 DC 马达 用途 干湿两用 最大风量 3.5 m /min 最大吸力 20.1 kPa 干式集尘容量 湿式集尘容量 BSL36A18 : 锂离子 36 V / 18 V 电池 * (2.5 Ah / 5.0 Ah 10 节)...
  • Page 9: 标准附件

    中文 标准附件 除了主机 (1 台) 外,产品包中还包括表中所列的附件。 表 1 RP3608DA (2XC) (NN) — 充电器 (UC18YSL3) — 电池 (BSL36A18) — 电池盖 软管 (内径38 mm × 1.5 m 长) 缩放管 缝隙吸嘴 主吸嘴 — 工具箱 用途 ○ 在工作场所和其他地方进行大扫除。 ○ 收集使用电动工具对混凝土或木材进行磨削、 切割或钻孔时产生的微细粉尘。 ○ 水洒在地板上时吸水。...
  • Page 10: 电池安装/拆卸

    中文 电池安装/拆卸 1. 安装电池 拉起夹紧杆,打开电池保护装置。然后将电池对准本机的凹槽,并将电池牢 牢地按入,直到听到咔哒声。 (参照图 3、 4) 注意! 请勿触摸端子。否则可能会导致手被端子割伤或其他意想不到的伤害。 电池保护装置 电池盖 插入 通气孔 电池 凹槽 端子 端子 卡扣 夹紧杆 电池 图 4 图 3 2. 拆卸电池 拔出 从本机拆卸电池时,按下两侧的插销,将电池向上滑 按下 动拉出电池。 电池 (参照图 5) 。 卡扣 图 5 充电 电池...
  • Page 11 中文 3. 充电 将电池插入充电器后,充电指示灯将呈蓝色闪烁。 电池完全充电后,充电指示灯将持续点亮呈绿色。( 参照 表 2) (1) 充电指示灯的指示状态 根据充电器或可充电电池的情况,充电指示灯的显示如 表 2 所示。 表 2 充电指示灯的指示状态 点亮 0.5 秒钟。不点亮 闪烁 充电前 0.5 秒钟。 (熄灭 0.5 秒钟) 插入电源 ( 红 ) 点亮 0.5 秒钟。不点亮 1 秒 闪烁 钟。 (熄灭 1 秒钟) 电池电量低于...
  • Page 12 中文 (2) 可充电电池温度和充电时间相关资料。 温度和充电时间如表 3 所示 表 3 充电器 UC18YSL3 电池类型 锂离子电池 电池可充电 -10℃ - 50℃ 温度 14.4 充电电压 多电压 BSL14xx 系列 BSL18xx 系列 系列 (4 节) (8 节) (5 节) (10 节) (10 节) 电池 充电时 BSL1415S : 15 BSL1815S : 15 间(环...
  • Page 13: 使用前

    中文 注意! ○ 如果电池长时间放置在阳光直射的地方或者刚刚使用完毕时,电池会变 热。如果此时对电池充电,充电器的充电指示灯会点亮 0.3 秒钟,然后熄灭 0.3 秒钟(熄灭 0.3 秒钟) 。此时请等待电池冷却后再开始充电。 ○ 充电指示灯闪动 ( 闪动间隔为 0.2 秒钟 ) 时,请检查充电器的电池连接器内 是否有异物并加以清除。如没有异物,则可能是电池或充电器发生了故障。 请将其送往当地授权服务中心。 ○ 因内置的微电脑需要约 3 秒钟才能确认正用 UC18YSL3 充电的电池已被取出, 因此请等待 3 秒钟后再重新插入电池继续充电。如果在不到 3 秒内就插入电 池,则电池可能充电不正常。 使用前 检查工作区域,确保没有杂物且不杂乱。 请勿使无关人员靠近。确保照明和通风充足。 作业之前 警告! 在使用之前,请检查以下内容。插入电池前应先检查 1 到 2 的事项。 1.
  • Page 14: 使用方式

    中文 5. 开关操作(参照图 8) 在操作过程中,每次按下模式转换开 模式指示灯 关时,吸力都会发生变化。 如表 4 所示,按下模式转换开关切换 模式选择开关 电源。 表 4 指示灯顺序 风量 图 8 /min) 真空度 20.1 (kPa) 注 : 将本机切换到 OFF 后再切换回 ON 时,模式切换开关将恢复到切换为 OFF 之 前的状态。 在 [3] 中设置时,本机将恢复到模式 [2]。 使用方式 注意! 请勿将吸尘器的顶部当作脚凳,也不要坐在上面。否则,设备会突然移动造 成人员受伤。 注...
  • Page 15 中文 注 : 如果过滤器是湿的,将其在阳光下晒干。使用湿的过滤器时,会明显地降低 吸力。 (1) 取下两个夹扣,使用把手拽起设备主体,并将其从水箱中取出。 ( 参照图 10) (2) 插入滤布过滤器,使接缝在软管吸入口的另一侧。( 参照图 11) (3) 检查过滤器垫是否放在水箱的入口处。( 参照第 16 页的图 15) (4) 检查过滤笼是否在过滤器的底部。( 参照第 16 页的图 15) 把手 主体 过滤器垫 过滤器 过滤笼 过滤器 过滤缝 过滤笼 水箱入口 夹扣 吸入口 过滤器 水箱 (水箱内) 图...
  • Page 16 中文 4. 连接电动工具 按顺序连接软管(内径 38 mm × 1.5 m 长)和适配器或接头(D) (选购件) 。 按箭头方向进行连接。( 参照图 15) 注 : 根据操作环境,主机的温度保护功能可以启动和关闭本机。 应关闭本机的情况,请参阅故障排除(第 26 页) 。 适配器 (选购件) 接头 ( 选购件 ) 电动工具 电动工具 软管(内径 38 mm 除尘适配器 × 1.5 m 长) (选购件) 排尘口 图...
  • Page 17 中文 (2) 用手挡住软管的顶端,打开电源开关。接下来,按下顶部的除尘按钮大约一 秒钟,然后松开按钮。重复三次,吸力应该就恢复了。 如果吸力没有恢复,则水箱里几乎就已装满灰尘了。倒出水箱中的灰尘。 6. 倾倒灰尘 警告 ! ○ 务必关掉真空开关,断开电池。 ○ 戴上防尘面具。 把手 ○ 如果在水箱中有液体时将设备倾向一侧,则 液体会流入电机内部或开关区域,导致触电 主体 或电机故障。 注意 ! 过滤笼 过滤器 ○ 请勿撞到水箱、过滤器或主体。否则可能会 导致变形或损坏。 ○ 虽然吸尘和吸水量很大,但每天至少倾倒一 次水箱中的灰尘和液体,并保持设备和过滤 器等的清洁。否则会导致吸力下降、电机故 夹扣 水箱 障、异味或生锈。 ○ 倾倒水箱里的灰尘时, 不要拎着夹扣。否则, 图 17 夹扣可能会损坏。 注 : 水箱...
  • Page 18 中文 (2) 脚轮的固定和松开 ( 参照 图 20) 松开 用脚刹降低脚轮的连杆,将轮子的转动固定。 松开固定的脚轮时,升高连杆。当使用车辆移 动设备时,固定脚轮使设备不会移动。但是, 固定 当移动设备时,检查脚轮是否已松开,否则脚 连杆 轮可能会被损坏。 (3) 组装工具盒 ( 参照图 21) 脚轮 水箱 (4) 在休息期间存放设备 ( 参照 图 22) 图 20 当您停止工作或休息时,可以通过将缩放管挂 在软管支架 (本机顶部的孔) 上进行快速存放, 这样就立起来了。 (5) 存放设备时 ( 参照 图 23) 钩头螺栓...
  • Page 19 中文 8. 安装塑料袋(可选) (没有塑料袋亦可使用) 把手 主体 警告 ! 务必关闭设备并取出电池。 过滤笼 (1) 拆下两个夹子,用手柄拉起头部并将其从集尘桶 过滤器 中取出。 (见图 24) 拆下集尘桶内的过滤器和过滤器笼。 (2) 将塑料袋插入集尘桶内部和袋导向器之间。 夹扣 首先沿袋导向器的底部插入袋子,然后沿两侧插 水箱 入。 (图 25) 图 24 (3) 将塑料袋沿集尘桶内展开后,将塑料袋的末端拉 出集尘桶外。 按照第 14 页“安装过滤器”中的说明 操作,插入过滤器和过滤器笼。 在此处安装过滤器,从而使塑料袋通 过过滤器的包装固定。 (见图 26) 塑料袋 塑料袋 注...
  • Page 20 中文 9. 如何安装滤纸过滤器 ( 选购件 ) 滤纸过滤器 警告 ! 吸气孔 ○ 务必关掉设备,将电池取出。 ○ 使用滤纸过滤器时,将其与标准的滤布过滤 器结合使用。 如果滤纸过滤器被撕裂,灰尘可能会进入电 机内部,由于过热导致发出异常噪音或引发 火灾。 注意 ! 吸入口(水箱内) 使用滤纸过滤器时,避免吸入水等液体或湿 图 27 的灰尘,这可能会导致过滤器撕裂。 (1) 水平打开滤纸过滤器,使滤纸过滤器的吸气 纸板 折叠 孔在水箱上方。( 参照图 27) (2) 在将过滤器安装到设备之前,按照箭头的方 向将纸板弯成两折约 90 度。( 参照图 28) (3) 将滤纸过滤器的吸入口对准设备的吸入口。 90°...
  • Page 21 中文 9. 剩余电池电量指示灯 剩余电池电 剩余电池电量 (1) 电池 量指示灯 指示灯开关 可以按下剩余电池电量指示灯开关点亮指示 灯,查看电池的剩余电量。 (图 30,表 5) 按住剩余电池电量指示灯开关约 3 秒后,指示 灯将熄灭。 显示板 环境温度和电池状态可能会对剩余电池电量产 生轻微的影响,因此,建议您仅将指示灯作为 参考。 此外,电动工具或充电器上的剩余电池电量指 示灯可能有所不同。 图 30 表 5 指示灯状态 电池剩余电量 点亮 ; 电池剩余电量超过 75%。 点亮 ; 电池剩余电量为 50% - 75%。 点亮...
  • Page 22: 浮子装置

    中文 (2) 吸尘器 安装电池,并按下剩余电池电量指示灯的电池开关,查看每个电池的显示量。 ( 参照图 31) 按下剩余电池电量指示灯的电池开关时,指示灯会点亮。 剩余电池电量指示灯的 1 号和 2 号代表了电池安装的编号槽。 (参照图 31、 32) 电池编号 电池 剩余电池电量 指示灯 电池编号 电池 图 31 图 32 表 6 指示灯状态 电池剩余电量 点亮 ; 电池剩余电量超过 75%。 点亮 ; 电池剩余电量为 50% - 75%。 点亮...
  • Page 23: Usb 设备的充电方法

    中文 USB 设备的充电方法 警告 ! ○ 使用之前请检查 USB 连接线缆是否有破损或损坏。 使用有破损或损坏的 USB 线缆可能会导致冒烟或着火。 ○ 不使用产品时,请用橡胶盖封好 USB 端口。 USB 端口中落入灰尘等可能会导致冒烟或着火。 注 : ○ USB 充电过程中,可能会有偶尔暂停。 ○ USB 设备未充电时,请将充电器上拔下 USB 设备。 否则不仅会减少 USB 设备的电池寿命,还会导致意外事故。 ○ 根据设备类型,可能无法对部分 USB 设备进行充电。 (1) 选择充电方式 根据所选的充电方式,将电池插入充电器或连接电源线插入插座。 ○ 将 USB 设备插入插座进行充电 ( 图 33-a)。 ○...
  • Page 24: 维护和检查

    中文 (3) 充电完成时 ○ 检查 USB 设备以检验充电状态。 ○ 从插座中拔下电源线。( 图 35) ○ 用橡胶盖盖住 USB 端口。 橡胶盖 USB 线 USB 端口 图 35 维护和检查 警告 ! ○ 检查和维护时,务必关掉真空开关,断开电池。 ○ 请勿用湿手操作。可能会导致触电或受伤。 1. 过滤器的维护 注 : ○ 由于过滤器是消耗品,因此建议您备好备件。 ○ 即使已经堵塞严重,也应该轻轻敲打滤布过滤器。强力刷洗会缩短过滤器的 使用寿命。 ○ 请勿用力投掷过滤器。可能会破坏其树脂部分。 堵塞的过滤器会显著降低吸力。定期敲击过滤器的内侧,减少内里的灰尘。...
  • Page 25 中文 5. 查看灰尘 用软布或用肥皂水浸泡的布可以擦去灰尘。请勿使用漂白剂、氯、汽油或稀 释剂,因为可能会损坏塑料。 6. 存放 存放在 40 度以下的地方,儿童够不到的地方。 注 : 存放锂离子电池 在存放前请确保电池已完全充电。 电池在低电量的状态下长时间存放 (3 个月或更长 ),可能会导致电池性能劣 化,使用时间明显减少或无法进行充电。 但是,即使是使用时间明显减少的电池,通过反复充电和使用 2 ~ 5 次,有 时也可恢复使用时间。 若反复充电和使用后电池的使用时间仍非常短,请认作为电池已达到了使用 寿命并更换新的电池。 注意! 在操作和维修电动工具时,必须遵守贵国制定的安全的有关规则和标准。 关于 HiKOKI 牌无线电动工具的重要通知 : 请确保始终使用我们指定的正版电池。如果使用我们指定以外的电池,或对 电池进行拆卸和改动 ( 例如拆卸和更换电池组件或其他内部部件 ),那么我们 无法保证我们无线电动工具的安全性和使用性能。...
  • Page 26: 故障排除

    中文 故障排除 如果工具操作不正常,请使用下表中的检查步骤。如果未能解决问题,请向经 销商或 HiKOKI 公司授权服务中心咨询。 1. 吸尘器 现象 可能的原因 解决办法 工具无法运行 没有剩余电池电量 为电池充电 电池未正确安装。 按下电池直到听到咔哒声。 电池安装槽的端子上以及电 请用干布清洁积聚的灰尘。 池滑槽上积聚了混凝土灰 尘。 吸力较弱。 水箱里装满了灰尘或水。 倒出灰尘或水。 不能吸灰尘。 然后,清除附着在过滤器上 的灰尘。 过滤器堵塞。 通过吹气扫去或清除过滤器 上附着的灰尘。 未安装过滤器。 检查过滤器是否正确设置。 ( 未安装到位 ) 塑料袋安装不当。 正确安装塑料袋。 从排气口漏出灰 未安装过滤器。 正确安装过滤器。 尘。...
  • Page 27 即使电池完全充 电池的使用寿命已耗尽。 请更换新电池。 电,电池的使用寿 命也会逐渐缩短。 电池的充电时间较 电池、充电器或周围环境的 请在室内或温暖的环境中充 长。 温度过低。 电。 充电器的排气孔堵塞,导致 请勿堵塞排气孔。 其内部部件过热。 冷却扇未运转。 请联系 HiKOKI 授权服务中 心进行维修。 USB 电源灯熄灭, 电池剩余电量低。 用电量充足电池替换它。 USB 设备停止充 将充电器的电源插头插入电 电。 插座中。 即使 USB 设备充电 USB 电源灯点亮呈绿色,提 这种情况不属于故障。 完毕,USB 电源灯 示可进行 USB 充电。 也不熄灭。...
  • Page 28 中文 现象 可能的原因 解决办法 电池和 USB 设备同 电池已完全充电。 这种情况不属于故障。 时充电时,USB 设 检查电池是否已充电完成 备将在中途暂停充 时,充电器将暂停 USB 充电 电。 约 5 秒钟。 电池和 USB 设备 电池剩余电量已不足。 这种情况不属于故障。 同时充电时,USB 电池电量达到一定程度时, 设备将无法开始充 USB 将自动开始充电。 电。...
  • Page 29: 选择附件

    中文 选择附件 根据特定作业选择适合的附件。 有关详细信息请联系 HiKOKI 授权服务中心。 1. 适配器 2. 接头(D) 3. 湿吸嘴 产品编号 : 320994 产品编号 : 337527 产品编号 : 326127 4. 刷头 5. 软管 (内径 28 mm × 6. 滤纸过滤器 产品编号 : 321984 5 m 长) 产品编号 : 00323703 产品编号...
  • Page 30: General Power Tool Safety Warnings

    English CONTENTS GENERAL POWER TOOL SAFETY WARNINGS ........30 CAUTION ON LITHIUM-ION BATTERY ............33 REGARDING LITHIUM-ION BATTERY TRANSPORTATION ......34 USB DEVICE CONNECTION PRECAUTIONS ..........35 PRECAUTIONS FOR CORDLESS CLEANER ..........35 SYMBOLS ....................37 SPECIFICATIONS ..................37 STANDARD ACCESSORIES ...............38 APPLICATIONS ....................38 BATTERY INSTALLATION / REMOVAL ............39 CHARGING ....................39 BEFORE USE ....................42 PRIOR TO OPERATION ................42...
  • Page 31 English Electrical safety a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
  • Page 32 English g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
  • Page 33: Caution On Lithium-Ion Battery

    English Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. CAUTION Keep children and infirm persons away. When not in use, tools should be stored out of reach of children and infirm persons. CAUTION ON LITHIUM-ION BATTERY To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output.
  • Page 34: Regarding Lithium-Ion Battery Transportation

    English 10. Do not use in a location where strong static electricity generates. 11. If there is battery leakage, foul odor, heat generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use. 12.
  • Page 35: Usb Device Connection Precautions

    English ● For transportation abroad, you must comply with international law and the rules and regulations of the destination country. USB DEVICE CONNECTION PRECAUTIONS When an unexpected problem occurs, the data in a USB device connected to this product may be corrupted or lost. Always make sure to back up any data contained in the USB device prior to use with this product.
  • Page 36 English ○ Foaming liquids, such as oil, boiling water, chemical fluid, and detergent. Liquids, such as water and oil. May cause fires or injuries. 11. Set the filter correctly before use. Do not use the appliance without the filter or with it set in a wrong position, or do not use a torn filter.
  • Page 37: Symbols

    English SYMBOLS WARNING The following show symbols used for the machine. Be sure that you understand their meaning before use. To reduce the risk of injury, user must Direct current read instruction manual. Rated voltage Warning SPECIFICATIONS CORDLESS CLEANER Model RP3608DA Voltage 36 V...
  • Page 38: Standard Accessories

    English STANDARD ACCESSORIES In addition to the main unit (1 unit), the package contains the accessories listed in the below. Table 1 RP3608DA (2XC) (NN) — Charger (UC18YSL3) — Battery (BSL36A18) — Battery cover Hose (id 38 mm × 1.5 m long) Zoom pipe Crevice nozzle Master nozzle...
  • Page 39: Battery Installation / Removal

    English BATTERY INSTALLATION / REMOVAL Battery installation As you pull on the clamp lever, open the battery guard. Next, match the battery with the unit’s groove and firmly press the battery in until you hear a click. (see Fig. 3, 4) CAUTION Do not touch the terminals.
  • Page 40 English Charging When inserting a battery in the charger, the charge indicator lamp will blink in blue. When the battery becomes fully recharged, the charge indicator lamp will light up in green. (See Table 2) Charge indicator lamp indication The indications of the charge indicator lamp will be as shown in Table 2, according to the condition of the charger or the rechargeable battery.
  • Page 41 English Regarding the temperatures and charging time of the rechargeable battery The temperatures and charging time will become as shown in Table 3. Table 3 Charger UC18YSL3 Type of battery Li-ion Temperatures at which the -10 ºC – 50 ºC battery can be recharged Charging...
  • Page 42: Before Use

    English How to make the batteries perform longer. Recharge the batteries before they become completely exhausted. When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.
  • Page 43: How To Use

    English NOTE When there is no more remaining power in a battery, immediately recharge the battery for convenient use later. Check the filter Referring to “2. Attaching the Filter” the filter should be correctly attached. CAUTION Water absorption amount will severely decline if the standardly equipped cloth filter is repeatedly used to absorb liquid.
  • Page 44 English Connecting the hose (see Fig. 9) Push Pull out Press the attached hose into the suction opening of the tank until it clicks and connect it. When removing the hose, pull out the hose while pushing the button of the Push suction opening.
  • Page 45 English Zoom Release pipe Screw ring Hose (id 38 mm × 1.5 m long) Zoom pipe Master nozzle Fig. 13 Fig. 14 Connect power tools Connect in order of Hose (id 38 mm × 1.5 m long) and Adapter or Joint (D) (Optional Accessory).
  • Page 46 English Filter cleaning CAUTION If the tank is filled with dusts, the suction power declines. Dump dusts as early as possible when they reach the half of the tank height. When the suction power declines during use, remove dusts in the following procedure: NOTE Since the filter cleaning device operates when the suction power declines to some extent, it...
  • Page 47 English NOTE ○ When removing the plastic bag filled with dust from the tank, make sure the bag does not become caught on parts inside the tank. ○ Empty the plastic bag regularly so that it does not become excessively filled with dust. ○...
  • Page 48 English Tool box assembly (see Fig. 21) Storing the appliance during breaks (see Fig. 22) Anytime you stop work or take a break from Hook bolt cleaning, you can quickly store the unit by hooking the zoom pipe to the pipe holder (the hole at the top of the unit) so that it stands.
  • Page 49 English Attaching the plastic bag (Optional) (Can be used Handle without a plastic bag) Head WARNING Be sure to turn off the appliance and remove the battery. Filter cage Filter Detach two clamps, pull up the head by the handle and remove it from the tank.
  • Page 50 English How to attach the paper filter (Optional) WARNING Suction Paper filter hole ○ Be sure to turn off the appliance and remove the battery. ○ When using a paper filter, use it in combination with the standard cloth filter. If the paper filter gets torn, dust may get inside the motor, causing abnormal noise or fire due to overheating.
  • Page 51 English 10. Remaining battery indicator Remaining battery Remaining battery Battery indicator switch indicator lamp You can check the battery’s remaining capacity by pressing the remaining battery indicator switch to light the indicator lamp. (Fig. 30, Table 5) Display panel The indicator will shut off approximately 3 seconds after the remaining battery indicator switch is pressed.
  • Page 52: Float Mechanism

    English The lamps will only light while the battery switch of the remaining battery indicator lamp is pressed. The numbers 1 and 2 of the remaining battery indicator lamp represent the numbered slots in which the batteries are installed. (see Fig. 31, 32) Battery number Battery Remaining battery...
  • Page 53: How To Recharge Usb Device

    English HOW TO RECHARGE USB DEVICE WARNING ○ Prior to use, check the connecting USB cable for any defect or damage. Using a defective or damaged USB cable can cause smoke emission or ignition. ○ When the product is not being used, cover the USB port with the rubber cover. Buildup of dust etc.
  • Page 54: Maintenance And Inspection

    English When charging is completed ○ To verify charge status, check the USB device. ○ Unplug the power cord from the electrical outlet. (Fig. 35) ○ Place the rubber cover over the USB port. Rubber cover USB port USB cable Fig.
  • Page 55 In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. Important notice on the batteries for the HiKOKI cordless power tools Please always use one of our designated genuine batteries. We cannot guarantee the safety...
  • Page 56: Troubleshooting

    English TROUBLESHOOTING Use the inspections in the table below if the tool does not operate normally. If this does not remedy the problem, consult your dealer or the HiKOKI Authorized Service Center. Cleaner Symptom Possible cause Remedy Tool doesn’t run No remaining battery power Charge the battery.
  • Page 57 The charger’s vents are blocked, Avoid blocking the vents. causing its internal components to overheat. The cooling fan is not running. Contact a HiKOKI Authorized Service Center for repairs. The USB power lamp The battery’s capacity has become Replace the battery with one that has switched off and low.
  • Page 58 English Symptom Possible cause Remedy It is unclear what the The USB power lamp does not Examine the USB device that is charging status of switch off even when charging is charging to confirm its charging a USB device is, or complete.
  • Page 59: Selecting Accessories

    English SELECTING ACCESSORIES Select accessories that are suited to a specific task. For details contact HiKOKI Authorized Service Center. 1. Adapter 2. Joint (D) 3. Wet nozzle Part Number: 320994 Part Number: 337527 Part Number: 326127 4. Brush 5. Hose (id 28 × 5 m long) 6.
  • Page 60 服务中心 高壹工机商业 (上海) 有限公司 上海市闵行区浦江工业园区三鲁路3585号7幢3楼 制造商 福建高壹工机有限公司 福建省福州市福兴投资区湖塘路 Shinagawa Intercity Tower A, 15-1, Konan 2-chome, Minato-ku, Tokyo, Japan 编号:C99731522 F 发行日期:2019年1月 中国印刷...
