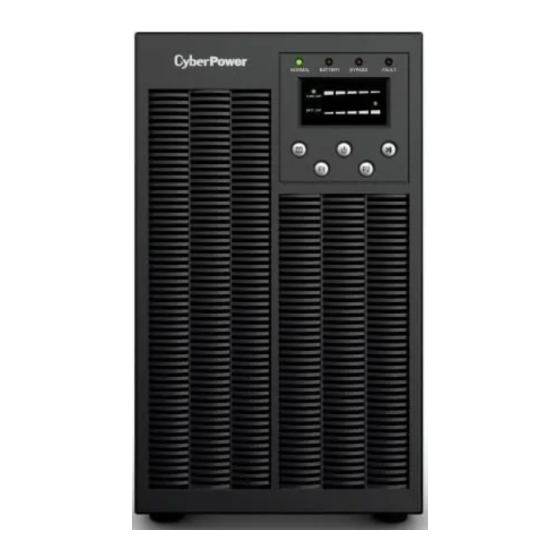

- Page 1 User’s Manual OLS6000EC(XL) OLS10000EC(XL) CyberPower Systems Inc. www.cyberpower.com K01-C000550-00...
-
Page 2: Table Of Contents
CONTENT： 1. Safety .........................1 1.1. Installation ....................1 1.2. Operation ....................1 1.3. Maintenance,Servicing and Faults ..............2 1.4. Transport ....................3 1.5. Storage .......................3 1.6. Standards ....................3 2. Description of Commonly Used Symbols ............4 3. Introduction .......................4 3.1. Feature .......................5 3.2. Electrical Specifications ................6 3.3. -
Page 3: Safety
1. Safety This manual contains important instructions. Please read and follow all instructions carefully during installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate the UPS. 1.1. Installation This is permanently connected equipment, and it must be installed by qualified maintenance personnel. -
Page 4: Maintenance,Servicing And Faults
source (batteries) even if the UPS is not connected to the building wiring terminal. In order to fully disconnect the UPS, turn the input breaker in the "OFF"positionfirst, and then disconnect the mains lead. Indiscriminate operation of switches may cause output loss or damage to equipment. -
Page 5: Transport
1.4. Transport Please transport the UPS only in the original packaging to protect against shock and impact. 1.5. Storage The UPS must be placed in the room where is ventilated and dry. 1.6. Standards * Safety IEC/EN 62040-1 * EMI Conducted Emission........:IEC/EN 62040-2 Category C3 Radiated Emission........:IEC/EN 62040-2... -
Page 6: Descriptionof Commonly Used Symbols
2. Descriptionof Commonly Used Symbols Some or all of the following symbols may be used in this manual. It is advisable to familiarize yourself with them and understand their meaning: Symbol Explanation Alert you to pay special attention Alternating current source(AC) Turn on or turn off the UPS Recycle Caution of high voltage... -
Page 7: Feature
Model No. Type Model No. Type OLS6000EC OLS6000ECXL Extended Standard backup time OLS10000EC OLS10000ECXL "XL"Model: Extended backup time. OLS6000EC/OLS10000EC OLS6000ECXL/OLS10000ECXL Fig.3-1 UPS rear view 3.1. Feature This series UPS provides theoutstanding reliability, and most cost-performance ratio in the industrial.Thebenefitsinclude: ... -
Page 8: Electrical Specifications
With perfect output sinewaveform;output power factor is 0.8.It is suitablefor almost all critical equipment. Outstanding adaptability to the worst mains input condition.Extra wide input voltage, frequency range, and sine waveform could avoiddissipating limited battery energy. 3.2. Electrical Specifications Input Model NO. -
Page 9: Operating Environment
<1000m -15℃~50℃ Note:The load capacity should be derated 1% every 100m heightened on the basis of 1000m. 3.4. Dimensions and Weights Model No. Dimensions W×H×D(mm) Net Weight (kg) OLS6000EC 196x702x412 54kg OLS6000ECXL 196x342x412 15kg OLS10000EC 196x702x412 63.5kg OLS10000ECXL 196x342x412 16.4kg... -
Page 10: Installation
RS-232 cable (optional) *PowerPanel® Business Edition software is available on our website. Please visit www.cyberpower.com and go to the Software Section for free download. CAUTION!Inspect the appearance of the UPS to see if there is any damageduring transportation. Do not turn on the unit and notify the carrierand the dealer immediately if there is any damage or lack. - Page 11 4.1.2. INSTALLATION ： Use cable cross section and protective device specification Model OLS6000EC(XL) OLS10000EC(XL) Protective earth conductor 6mm² 10 mm² Minimum cross section (UL1015 10AWG) (UL1015 8AWG) Input L, N 6mm² 10 mm² Minimum conductor cross section (UL1015 10AWG) (UL1015 8AWG) Input breaker 40A/250Vac 63A/250Vac...
- Page 12 voltage after turning off the UPS. To make the UPS without output, turn off the UPS, and cut off the mains power supply, wait the UPS shut down completely, finally remove the battery connection. Open the terminal block cover located on the rear panel of UPS; please refer to the appearancediagram.
- Page 13 Fig.4-2 Input and output Terminal Block wiring diagram It is requested to use the accessorial terminal splices which can be compacted on the wires tightly to ensure the connection between the wires and the terminal block is reliable. 10) Install an output breaker between the output terminal of UPS and the load. The breaker should be with leakage current protective function if necessary.
-
Page 14: External Battery Packinstallation
1. The nominal DC voltage of external batterypack is 192Vdc. To achieve longer backup time, it is possibletoconnect multi-battery packs, but the principle of "same voltage,same type"should be strictly followed. 2. For OLS6000ECXL, select the UL1015 10AWG (6mm² )respectively or otherinsulated wire which complies with AWG Standard for the UPSbattery wirings. -
Page 15: Operation
Fig.4-3 Enable the EPO status Fig.4-4 Disable the EPO status To recover to normal status, first EPO connector should be closed (Fig.4-4), and press button more than 1 second to clear EPO status, thenUPS would stop alarm and recover to Bypass mode. And UPS needsbe turned on by manual operation. - Page 16 ： Control button functions Button Description Press this button for 1second to turn onthe UPS. Press this button for 3seconds to turn offthe UPS. Press this button for1secondto display Load Capacity, BatteryCapacity, Warning and Fault Information alternatively. Press this button for 3seconds to switch operation mode of UPS. Selectable options are as below, (1) Line mode [Default];...
- Page 17 ▲: Depended on the fault/warning status or other status Battery capacity and load capacity define LED Indicators Description LED Indicators Description Load capacity Battery capacity < 20% < 20% Load capacity Battery capacity 20 ~ 39% 20 ~ 39% Load capacity Battery capacity 40 ~ 59% 40 ~ 59%...
-
Page 18: Turn On/Off Ups
Alarm definition: UPS condition Buzzer status Fault active Continuous Warning active Beep every second Beep every 4 seconds, if battery low, buzzer beep every second Battery mode Bypass mode Beep every 2 minutes Overload Beep twice every second 5.2. Turn On/Off UPS Attention: The UPS could only be turned on while connecting to the mains at the first time. -
Page 19: Operating Modes
5.3. Operating Modes The front panel indicates the UPS status through the LED indicators. Please see “5.1 Panel Display and Control”. Standby Mode When the UPS is turned off and remainsconnected to the mains power, the UPS is charging without output. Line Mode The UPS is powered from the utility.The UPS charges the batteries asneeded and provides filtered power protection to yourequipment. -
Page 20: Trouble Shooting
6. Trouble Shooting If some fault or warning occurs in the UPS, please attempt to solve the problem using the table below. If theproblem still persists, please consult your dealer. 6.1. WarningIndication LED Indicators Buzzer Possible Cause Solution Check the loads and remove some Beep every Overload... - Page 21 Beep every EPO connector is Check the EPO second open connector status. Check the ventilation Beep every Inside temperature of UPS and the second of UPS is too high ambient temperature Do the battery test to confirm; Check the battery Beep every Battery is bank is connected to...
-
Page 22: Fault Indication
6.2. Fault Indication LED Indicators Buzzer Possible Cause Solution Remove all the loads. Turn off theUPS. Check if UPS Beep output and loads is short Output short circuit circuit.Ensure short circuit Continuous is removed before turning on again. Check the loads and removesome non-critical Beep Over Load... - Page 23 Beep UPS internal fault Consult dealer Continuous Beep UPS internal fault Consult dealer Continuous Beep UPS internal fault Consult dealer Continuous Beep UPS internal fault Consult dealer Continuous Beep UPS internal fault Consult dealer Continuous Beep UPS internal fault Consult dealer Continuous Beep UPS internal fault...
-
Page 24: Others
Beep UPS internal fault Consult dealer Continuous ●: Lightened constantly★: Flashing 6.3. Others Problem Possible cause Remedy No indication, no warning Check the building wiring andinput tone even though system No input voltage cable; is connected to mains Check if the input breaker is closed. power supply BYPASS LED light up Inverter not switched... -
Page 25: Battery Maintenance
7. Battery Maintenance Battery replacement should be performed by qualified personnel. The battery used for standard models are value regulated sealed lead-acidmaintenance free battery. Please charge the UPS regularly in order tomaximize the expected life of the battery. When being connectedto the utility power, whether the UPS is turned on or not, the UPSkeeps charging the batteries and also offers the protectivefunction of overcharging and over-discharging. - Page 26 Entire contents copyright ©2018CyberPower Systems Inc., All rights reserved. Reproduction in whole or in part without permission is prohibited. PowerPanel® Business Edition and PowerPanel® Personal Edition are trademarks of CyberPower Systems Inc.
