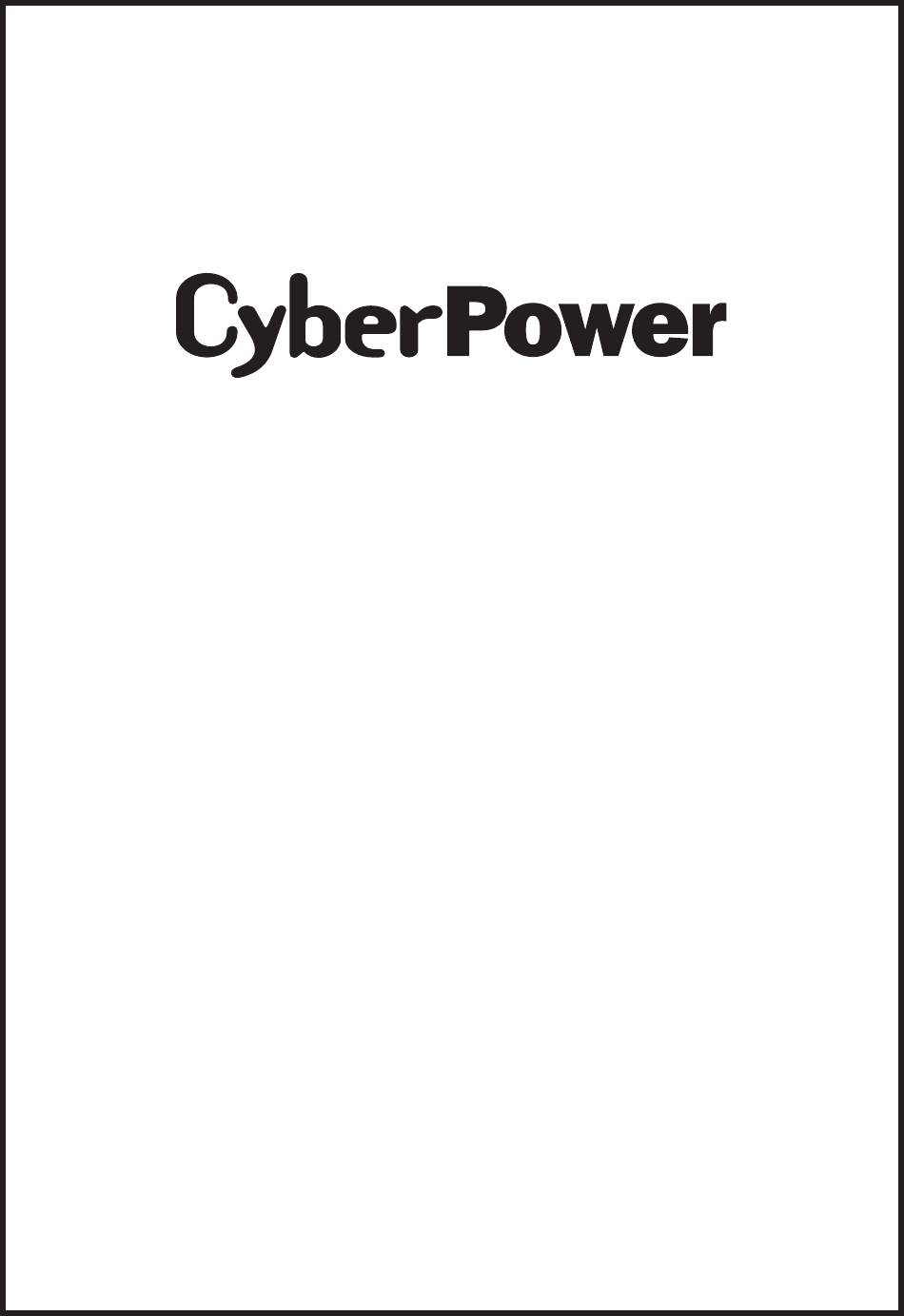

- Page 1 INSTALLATION AND OPERATION MANUAL O L S 6 K E ( A ) OLS10KE(A) K01-C000850-00...
- Page 2 TABLE OF CONTENTS SAFETY INSTRUCTIONS ..................1 UPS Safety Notes ..............................1 Special Symbols ..............................1 Personal Safety ..............................1 Product Safety ..............................3 INTRODUCTION ....................4 Smart APP Online UPS Systems ........................4 UPS Extended Battery Modules ........................4 Unpacking Procedures ............................5 What’s In The Box ..............................6 OVERVIEW ......................
- Page 3 SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important instructions that should be followed during installation and maintenance of the UPS and batteries. UPS SAFETY NOTES Install and use the UPS in the following environments: • Temperature: 32°F - 104°F (0°C - 40°C); relative humidity: 0% to 95% •...
- Page 4 SAFETY INSTRUCTIONS When installing the equipment, ensure that the sum of the leakage current of the UPS and the connected equipment does not exceed 3.5mA. Do not unplug the unit from AC power during operation, as this will disconnect the protective ground insulation.
- Page 5 IMPORTANT SAFETY INSTRUCTIONS PRODUCT SAFETY RISK OF ELECTRIC SHOCK The battery can power hazardous components inside the unit, even when the AC input power is disconnected. The UPS should be placed near the connected equipment and easily accessible. (Non-Isolated Battery Supply): Risk of electric shock, battery circuit is not isolated from AC power source;...
- Page 6 INTRODUCTION SMART APP ONLINE UPS SYSTEMS CyberPower Smart App Online rack/tower UPS systems, with double-conversion topology, provide sine wave output to mission-critical applications and equipment requiring seamless power correction. These units offer generator compatibility and deliver clean AC power with zero transfer time.
- Page 7 INTRODUCTION UNPACKING PROCEDURES Information, advice, help The equipment is very heavy, please handle with care. Wear safety shoes and use a hydraulic equipment lift if one is available. At least two people are required for all handling operations, including unpacking, lifting, and installation in a rack system. Do not use the lifting straps to carry the unit around;...
- Page 8 INTRODUCTION WHATS IN THE BOX CONTENT User’s Manual USB Communication Cable EPO Connector Pin L-shaped Plate M4X10L Screws Cable Gland Round Head Cross Screws: M3X6L...
- Page 9 OVERVIEW FRONT PANEL OLS6KE/OLS10KE/OLS6KEA/OLS10KEA . Power Button / Power on Indicator Master ON/OFF switch for the UPS. Indicates that the UPS is on and supplying power. 2 . Function Buttons Scroll DOWN scroll UP, ENTER, and ESCAPE. 3 . UPS Status / Multifunction LCD Readout...
- Page 10 11 . Input and Output Terminal Block Connect to utility power and equipment load. 12 . Extended Runtime Battery Module Connector Connection for additional CyberPower Battery modules. 13 . Input Circuit Breaker Provide input current overload and fault protection. 14 . SNMP/HTTP Network Slot Slot to install the optional SNMP card for remote network control and monitoring.
- Page 11 INSTALLING YOUR UPS SYSTEM SYSTEM BLOCK DIAGRAM BYPASS Input Inverter Output Input Output AC/DC Filter DC/AC Filter Charger Battery AC/DC Module Control & USB&DB9 Monitoring SNMP Slot Line Mode Battery Mode Bypass Mode Control Signal HARDWARE INSTALLATION GUIDE 1 . Battery charge loss may occur during shipping and storage. Before using the UPS, it’s strongly recommended to charge batteries for four hours to ensure the batteries’...
- Page 12 When the high temperature sensor activates protection, the UPS generates an alarm and shuts down to avoid unexpected equipment damage. When the over temperature occurs, please check the Troubleshooting section. If the condition persists, please contact CyberPower for technical support.
- Page 13 INSTALLING YOUR UPS SYSTEM HARDWARE INSTALLATION Caution - Important Instructions: Must always be followed. The UPS is very heavy. Please handle it with care. For safety concerns, fixing the UPS on the floor by using an L-shaped Plate is highly recommended.
- Page 14 For safety, please cut off the mains power switch before installation. When installing the electrical wiring, please note the nominal amperage of your incoming feeder. Use cable cross section and protective device specification: Model OLS6KE(A) OLS10KE(A) Protective earthing conductor Min 6mm² (UL1015 10AWG) 10mm²...
- Page 15 MAINTENANCE BYPASS SWITCH SET UP When UPS needs to be executed the maintenance: ENABLE “C06 - Manual Bypass” by LCD Panel. Make sure that the UPS is operating in BYPASS mode. Turn the maintenance bypass switch to “BYPASS”. Turn OFF the UPS (make sure that the LCD off and fan stops). When the maintenance is completed, reactivate back UPS and go MAINTENANCE SWITCH back to Normal mode:...
- Page 16 USING THE UPS SYSTEM DRY CONTACT AND EMERGENCY POWER OFF RELAY OUTPUT UPS Status UPS Conditions I/P Power Fail UPS detects utility failure. Battery Low Battery capacity is lower than threshold. UPS exits alarms due to Inverter Fault, Output Short, Over Temperature, Summary Alarm Overload, Battery Overcharge, Low Battery, Wiring Fault, etc.
- Page 17 USING THE UPS SYSTEM LCD DESCRIPTION AND DISPLAY FUNCTIONS LCD Panel and Buttons ICON ZONE CONTENT ZONE TOPOLOGY ZONE ITEM BUTTON FUNCTION DESCRIPTION Press this button for at least 3 seconds to turn on and off UPS. ON/OFF Click this button to mute the alarm. If the alarm status changes, the alarm will override the previous alarm silencing and will beep again.
- Page 18 USING THE UPS SYSTEM UPS Modes of Operation and Topology: UPS MODE/ MODE/STATUS DESCRIPTION UPS TOPOLOGY: MODE DISPLAY STATUS (ICON) UPS is operating in Line Mode. The UPS is operating and protecting the equipment normally. UPS is operating in Battery Mode. A utility power failure has occurred.
- Page 19 USING THE UPS SYSTEM FUNCTION TREE UPS STATUS Output Voltage MAIN MENU Output Frequency Output Load (%) CONFIGURATION TEST EVENT LOGS INFORMATIONS Output Current Output Voltage Battery Test UPS Model Name Output Watt Event 01 UPS Rating Sync Frequency Window Alarm Test Output VA Event 02...
- Page 20 USING THE UPS SYSTEM UPS STATUS There are 13 types (7 pages) of UPS status readout available for display. Press "UP" and "DOWN" buttons to scroll through the UPS Status items shown in the table below. Item Display Description Output Voltage Displays the Output Voltage and O U T P U T : and Frequency...
- Page 21 USING THE UPS SYSTEM CONFIGURATION There are 30 UPS items that can be configured by the user. 1. Press the “ENTER” button to enter the “Main Menu” layer. 2. Press the “UP” and “DOWN” buttons to scroll to the “Main Menu”. 3.
- Page 22 USING THE UPS SYSTEM Available Settings Setting Item & Description LCD Display (* = default setting) Manual Bypass When performing UPS maintenance, user can manually transfer the connected [Disable]*, [Enable] load to Bypass without interrupting the output to the connected equipment. C06 Manual Bypass ECO Mode Sets the ECO operation for the UPS.
- Page 23 USING THE UPS SYSTEM Available Settings Setting Item & Description LCD Display (* = default setting) Sets [EPO] (Emergency Power Off) to shutdown the UPS remotely when the Signal Inputs contact is close. Sets [ROO] (Remote On/Off) to turn [Disable]*, [EPO], [ROO] On the UPS remotely when the contact is close and turn Off the UPS remotely when the contact is open.
- Page 24 EBM Number battery module(s) or allows the number of external battery module(s) with [Autodetect]*, [0-10 pack(s)] autodetect. Autodetect is used only for CyberPower EBMs. If more than 3 EBMs C25 EBM Number are connected, auto-detection does not funtion. Battery Replace Date...
- Page 25 USING THE UPS SYSTEM Available Settings Setting Item & Description LCD Display (* = default setting) Period Battery Test [Disable]*, [1 Week], [2 Weeks], [3 The UPS can periodically self-test the Weeks], [4 Weeks] battery. Sets periodic test for battery. C27 PD.
- Page 26 USING THE UPS SYSTEM Test There are 4 UPS Diagnostic items that can be tested by the user. 1 . Press the “ENTER” button to enter the “Main Menu” layer. 2 . Press the “UP” and “DOWN” buttons to scroll to the “Main Menu”. 3 .
- Page 27 USING THE UPS SYSTEM Event Logs The UPS will record the 20 most recent system events (faults) in the Event Logs. 1 . Press the “ENTER” button to enter the “Main Menu” layer. 2 . Press the “UP” and “DOWN” buttons to scroll to the “Main Menu” items. 3 .
- Page 28 USING THE UPS SYSTEM Event Logs Cont. Event Event Content LCD Display Description Code ROO Off 27 ROO Off The UPS has been turned off by ROO. Inverter Fault 30 Inv Fault The inverter has malfunctioned. High Output The UPS has detected Inverter voltage 31 High O/P Volit Voltage too High.
- Page 29 USING THE UPS SYSTEM Information 1 . Press the “ENTER” button to enter the “Main Menu” layer. 2 . Press the “UP” and “DOWN” buttons to scroll to the “Main Menu”. 3 . Press "ENTER" button to enter the "Informations". 4 .
- Page 30 USING THE UPS SYSTEM Information Cont. Number Item LCD Display Description Display the network IP address. A D D R E S S IP Address *This is only shown when the RMCard has been connected. Display the network Subnet Mask. S U B N E T M A S K Subnet Mask...
- Page 31 Please dispose and/or recycle your UPS and batteries in accordance with local regulations. BATTERY REPLACEMENT For battery procurement, go to www.CyberPower.com, or contact your local dealer. When the LCD displays Service Battery, use PowerPanel Business Agent software or log on to the RMCARD to perform a runtime calibration to verify battery capacity is sufficient and acceptable.
- Page 32 TECHNICAL SPECIFICATIONS Modelss OLS6KEA OLS6KE OLS10KEA OLS10KE CONFIGURATION Capacity (VA) 6000 VA 10000 VA Capacity (Watts) 6000 W 10000 W Energy-saving ECO Mode Efficiency > 98% Technology INPUT 180V-300V @ >75% Load ± 5% Input Voltage Range 145V-179V @ 50%~74% Load ± 5% 110V-144V @ <50% Load ±...
- Page 33 TECHNICAL SPECIFICATIONS Modelss OLS6KEA OLS6KE OLS10KEA OLS10KE BATTERY Specifications 16 pcs x 12 V 20pcs x 12V 16pcs x 12V 20pcs x 12V Recharge Time 0-90% 4 hours (Typical) Sealed, Maintenance Free STATUS INDICATORS LCD Screen Multi-Function Color TFT-LCD Readout...
- Page 34 The Battery has connector and check 01 Over Battery is Over Charge been charged charger voltage. Charge overcharged. too High voltage. Contact CyberPower for assistance. Remove battery The Battery connector and check Charger 02 Chgr Charger has Charger has failed. charger voltage.
- Page 35 Inverter 30 Inv The inverter has turn off input breaker. Inverter has failed. Fault Fault malfunctioned. Contact CyberPower for assistance. Shut down UPS and The UPS has turn off the input High Output 31 High detected Inverter Inverter voltage is breaker.
- Page 36 Shut down Fan Error detected a fan Error failed. UPS and turn off the malfunction. input breaker. Contact CyberPower for assistance. Shut down UPS and The UPS has Internal DC bus turn off the input BUS Fault 41 BUS...
- Page 37 EEPROM Fail Fail and recheck the UPS Fail condiction. If the UPS still has Eeprom fail warning, please contact CyberPower for assistance. Shut down UPS and The UPS has The UPS has turn off the input U2 ADC ADC Fail...
- Page 40 Cyber Power Systems, Inc. www.cyberpower.com 11F., No.26, Jinzhuang Rd., Neihu Dist., Taipei City 114, Taiwan Entire contents copyright © 2023 Cyber Power Systems, Inc., All rights reserved. Reproduction in whole or in part without permission is prohibited. PowerPanel Business and PowerPanel Business are trademarks of...
