Front Panel

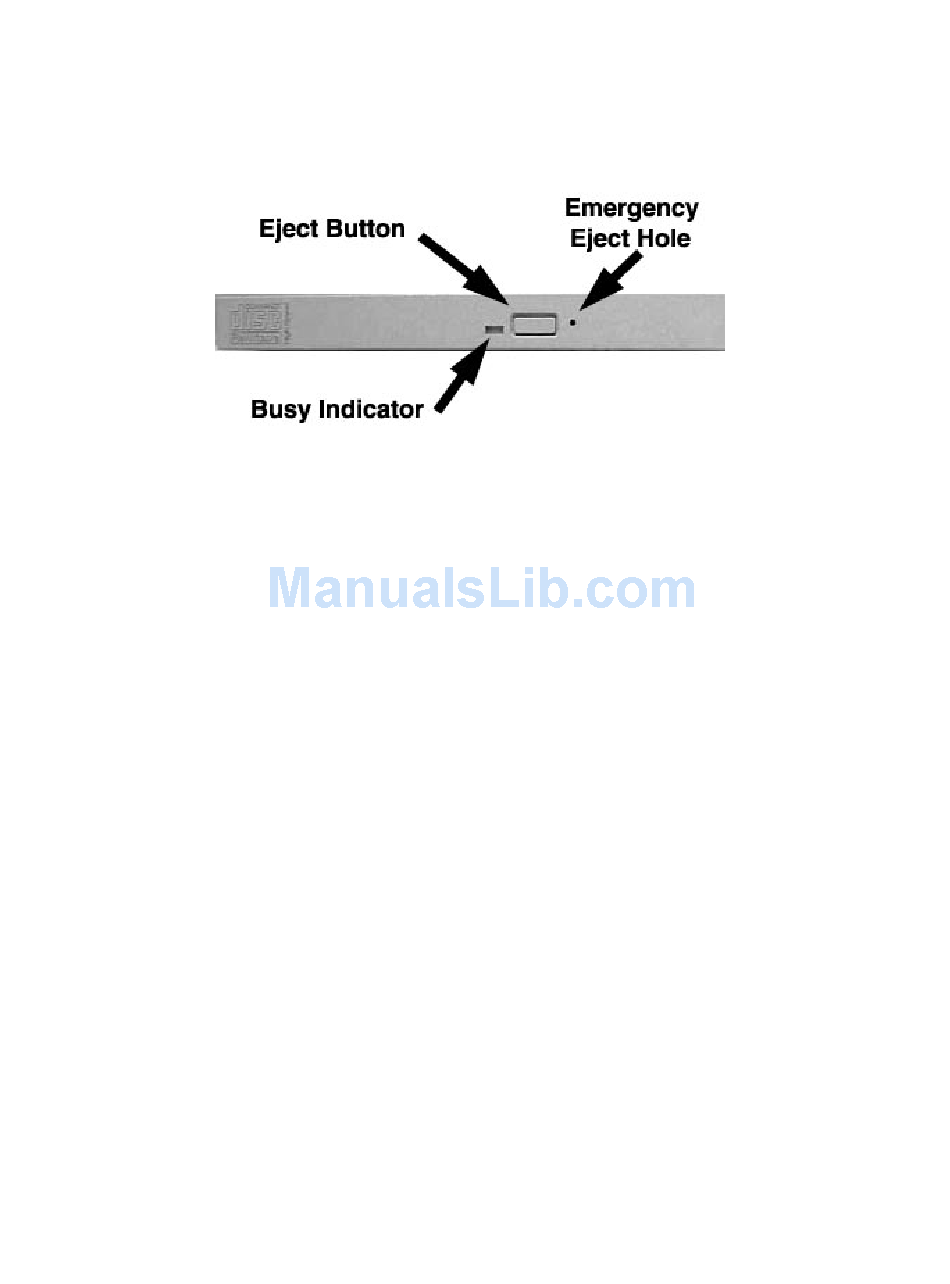

Figure 1.SD-R6472 DVD Writeable Drive Front Panel
Load disc using tray.
Loading
Tray
The LED lights green or amber when the drive is operating (LED is amber when drive is
Busy
writing.)
Indicator
Eject
The Eject button is used to open the disc tray so you can install or remove a disc.
Button
The emergency eject hole is to be used only when the Loading Tray will not open when
Emergency
Eject button is pressed.
Eject Hole
