10. MAINTENANCE

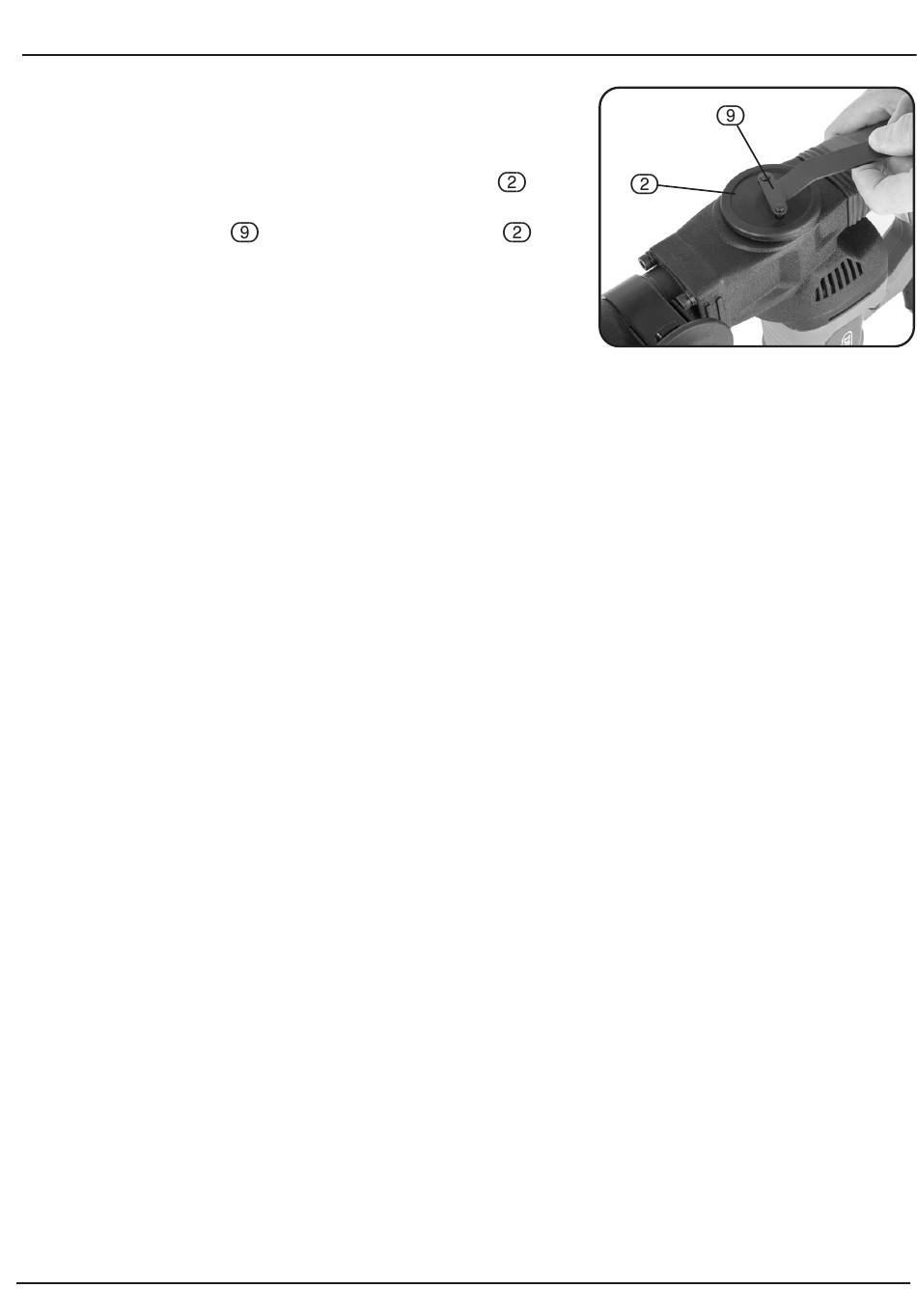

10.1 GEARBOX MAINTENANCE FIG. 7
Note: Remove the plug from the socket before carrying
out adjustment, servicing or maintenance.
Before each use remove the gearbox access cover
ensure there is sufficient grease.
– Using pin spanner
anti-clockwise.
– If required top-up the gearbox (20 grams max.) using
a general purpose lithium based grease.
Warning: Assembly must be completed prior to
operating the machine.
The breaker does not require any special maintenance.
Regularly clean/vacuum the ventilation slots. Use only a
mild cleaner and a damp cloth to clean the tool.
