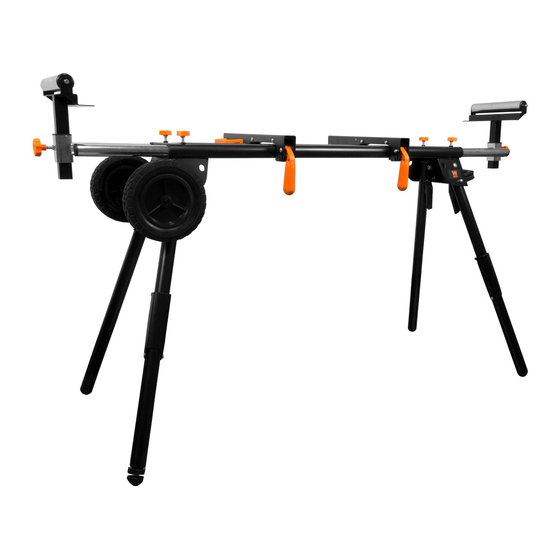

MODEL MSA330
COLLAPSIBLE, ROLLING
MITER SAW STAND
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-800-232-1195 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit
Advertisement
Table of Contents
Related Manuals for Wen MSA330
Summary of Contents for Wen MSA330
- Page 1 1-800-232-1195 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
-
Page 2: Table Of Contents
CONTENTS WELCOME Introduction ....................3 Specifications ....................3 SAFETY General Safety Rules ..................4 Electrical Information ..................6 BEFORE OPERATING Unpacking & Packing List .................7 Know Your Miter Saw Stand ................8 Assembly & Adjustment ................... 9 OPERATION & MAINTENAN Operation ....................... 11 Maintenance .................... -
Page 3: Welcome
INTRODUCTION Thanks for purchasing the WEN Miter Saw Stand. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool. -
Page 4: Safety
GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
-
Page 6: Electrical Information
ELECTRICAL INFORMATION GROUNDING INSTRUCTIONS In the event of a malfunction or breakdown, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug. -
Page 7: Before Operating
UNPACKING & PACKING LIST UNPACKING With the help of a friend or trustworthy foe, such as one of your in-laws, carefully remove the miter saw stand from the packaging and place it on a sturdy, flat surface. Make sure to take out all contents and accessories. Do not dis- card the packaging until everything is removed. -
Page 8: Know Your Miter Saw Stand
KNOW YOUR MITER SAW STAND TOOL PURPOSE Miter Saw Stands adequately support both your miter saw and your workpiece to help you get the job done. Refer to the following diagrams to become familiarized with all the parts and controls of your Miter Saw Stand. The com- ponents will be referred to later in the manual for assembly and operation instructions. -
Page 9: Assembly & Adjustment
ASSEMBLY & ADJUSTMENTS UNFOLDING THE LEGS Fig. 1 1. Place the miter saw stand on a flat surface with the folded legs facing up. 2. Press down the release lever (Fig. 1 - 1) to disengage the locking pin and rotate the leg up until the locking pin clicks into the open position. - Page 10 ASSEMBLY & ADJUSTMENTS INSTALLING THE HANDLE Fig. 5 Secure the handle (Fig. 5 - 1) to the side of the stand without wheels, using two screws, flat washers, lock washers and hex nuts. Tighten the hex nut. Repeat for the other handle. INSTALLING THE MOUNTING BRACKETS With the locking handle (Fig.
-
Page 11: Operation & Maintenan
OPERATION MOUNTING A MITER SAW TO THE STAND The miter saw stand should fit most miter saws. Make sure the miter saw is unplugged from power supply before attempting to mount it onto the stand. Refer to the next section on Page 10 for mounting uncommon miter saws. 1. -
Page 12: Maintenance
OPERATION MOUNTING UNUSUAL MITER SAWS If your miter saw is strange or unusual in terms of either its mounting holes or its social skills, don’t be alarmed. Every miter saw is special in its own unique way. If you have one of these special miter saws, an adaptor plate may be necessary. -
Page 13: Exploded View & Parts List
EXPLODED VIEW & PARTS LIST Part Number Description Qty. MSA330-001 Work Support Roller MSA330-002 Extension Arm Lock Knob MSA330-003 Mounting Bracket Assembly MSA330-004 Extension Arm MSA330-005 Roller Lock Knob MSA330-006 Handle MSA330-007 Regular Leg MSA330-008 Leg with Adjustment Nut MSA330-009... -
Page 14: Warranty Statement
(2) years from date of purchase or 500 hours of use; whichever comes first. Ninety days for all WEN products if the tool is used for professional or commercial use. - Page 15 NOTES...
- Page 16 THANKS FOR REMEMBERING V. 2019.06.21...
