- Page 1 User manual EasyLift V3 PLUS USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 Liftup A/S | Hagensvej 21 | DK-9530 Støvring | Denmark | T: +45 96 86 30 20 | M: support@liftup.dk | www.liftup.dk...
-
Page 2: Table Of Contents
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 Contents Foreword ..............................4 Declaration of Conformity ........................5 Labelling of the equipment ........................6 Terms of use ............................. 7 Technical specifications .......................... 8 Safety instructions ..........................10 6.1 Installation and maintenance ......................10 6.2 Unintended movements of lift ......................10... - Page 3 USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 14. Installation and handover ........................27 15. Maintenance checklist ..........................28 16. Service logbook .............................30 17. Spare parts and accessories ........................31 18. Disassembly ............................34 19. Disposal ..............................34 20. Right of complaint ..........................34 October 2019 Liftup A/S | Hagensvej 21 | DK-9530 Støvring | Denmark |...
-
Page 4: Foreword

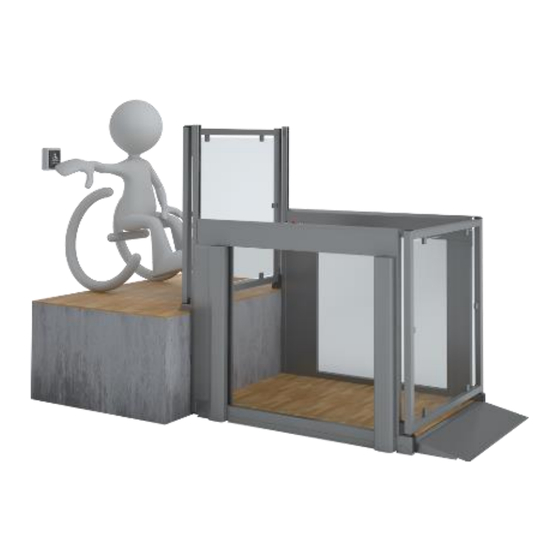

1. Foreword Congratulations on purchasing your new EasyLift lifting platform. This is an original user manual for your new EasyLift V3 PLUS. Hereinafter we use the term EasyLift for EasyLift V3 PLUS, if nothing else is specifically indicated. It is important to read this manual before using the lifting platform Set-up and installation MUST be undertaken by a qualified Liftup service technician, to ensure correct assembly. -
Page 5: Declaration Of Conformity
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 2. Declaration of Conformity Manufacturer: Liftup A/S Address: Hagensvej 21, DK-9530 Støvring, Denmark Telephone: +45 9686 3020 hereby declares that: EasyLift V3 PLUS Equipment: Lifting platform for wheelchair users and persons with impaired... -
Page 6: Labelling Of The Equipment
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 3. Labelling of the equipment Insert copy of CE certification mark here Liftup A/S | Hagensvej 21 | DK-9530 Støvring | Denmark | +45 96 86 30 20 | support@liftup.dk | www.liftup.dk | CVR DK-1015 3964... -
Page 7: Terms Of Use
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 4. Terms of use The lift is exclusively for the use of wheelchair users and persons with impaired mobility. The maximum load is 400 kg evenly distributed on the lift or a maximum of two persons. -
Page 8: Technical Specifications
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 5. Technical specifications EasyLift 800/900 V3 PLUS EasyLift 1100 V3 PLUS Technical specifications: Power: 110 - 240 V/50 Hz (1.1 A) Max: 90 W, Standby < 6 W Lifting capacity:... - Page 9 USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 All radio components comply with the following standards: 2014/53/EU, Radio Equipment Directive (RED) FCC (USA) CFR 47 Part 15 EN 62479:2010 Human exposure EN 300 440, v2.1.1 Electromagnetic compatibility + Radio spectrum Matters Draft EN 301489-1, v2.2.0...
-
Page 10: Safety Instructions
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 6. Safety instructions 6.1 Installation and maintenance Do not try to install or service your lift yourself - this MUST be done by an authorised* service technician. Do not remove the protective plates or safety plates on your lift, as this may lead to personal injury. -
Page 11: Personal Safety
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 6.6 Personal safety The lift is fitted with various safety features which ensure that the user or other people are not injured when using the lift. WARNING! Although the lift comes fitted with various safety features, never use it if persons or animals are close by, as there may otherwise be a risk of crushing. -
Page 12: Safety Barriers
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 6.8 Safety barriers 6.8.1 Ramp as roll-off protection If the lift is fitted with a ramp, the ramp will first pull up and lock before the lift begins to move. -
Page 13: Handling
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 6.8.3 Barrier If the lift is fitted with a vertical safety barrier (optional equipment) at the upper level, it will close before the lift begins to move. The vertical safety barrier will always be closed, when the lift is not at the upper level. - Page 14 USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 2. From outside, you can approach the lower side 3. The spring is released 4. When the spring is released pull out the bolt. Please note! The bolt may be difficult to pull out, because of pressure on the door actuator.
-
Page 15: Functionality
Do not attempt to move, disassemble or repair your lift. These actions MUST be performed by an authorized service technician*. Improper assembly may increase the risk of user injury. Liftup is exempt from any liability if assembly and installation are not performed by an authorized service technician*. -
Page 16: Operating The Lift
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 10. Operating the lift 10.1 Daily use Your lift is operated by means of two operating panels: Standard (Fig.1-4), FUGA (Fig. 5) or key- operated call station (Fig. 6) at the upper and lower levels respectively, push-buttons (Fig. 9) on the lift or by using the remote control (optional equipment) (Fig. -
Page 17: Operating The Lift From The Upper Level
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 10.2 Operating the lift from the UPPER level To call the lift to the upper level, press the operating panel (Fig. 1-6) sited at the upper level – or the up arrow (↑) on the remote control (optional equipment) (Fig. 8) - until the lift has moved completely up and come to a stop. -
Page 18: On/Off Switch
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 10.6 ON/OFF switch The lift comes fitted with an ON/OFF switch. It is sited below the main board on the right-hand side of the lift. You need to remove the cover to access the switch. This button is used to disconnect the power supply to the lift. -
Page 19: Audible Alarms
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 10.7 Audible alarms If “speak” is installed on the lift, it will be activated in the event of an alarm. Otherwise an alarm tone will sound. Speak Activity/warning Opening The vertical safety barrier is opening... -
Page 20: Emergency Alarm Devices (Optional Equipment)
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 10.8 Emergency alarm devices (optional equipment) The lift can be equipped with an alarm button (). The alarm button can be connected in two ways. 1. The alarm button can be connected to an external alarm. To activate the alarm press and hold the alarm button for 5 seconds. -
Page 21: Operation
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 11. Operation Under normal operating conditions the lift shall always be connected to 110-240V. It is very important that the power is not disconnected or switched off, as long-standing power outage (10-20 hours) may result in flat batteries and thus inoperability. -
Page 22: Maintenance
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 12. Maintenance Clean the lift by wiping with a well-wrung cloth using water mixed with a mild detergent. IMPORTANT! Do NOT use a high-pressure jet or rinse the lift directly using a hose. - Page 23 USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 Wall mounted remote control 1. Remove the black push-button front, loosen the 2 screws (PH1), on the rear of the grey part, where the PCB with the battery is mounted.
-
Page 24: Pairing Transmitter And Receiver
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 13. Pairing transmitter and receiver 13.1 Remote control and receiver of the lift The remote control and receiver of the lift must always be paired in order to work. The receiver will not react to a remote control which is not paired with it. -
Page 25: Wireless Call Station And Receiver Of The Lift
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 Resetting the receiver of the lift • Switch the power to the lift on. • Short-circuit JP1-1 on the connection box board. • When the control LED begins to flash rapidly, the receiver has been reset. - Page 26 USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 Resetting the receiver of the lift • Switch the power to the lift on. • Short-circuit JP1-1on the connection box board. • When the control LED begins to flash rapidly, the receiver has been reset.
-
Page 27: Installation And Handover
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 14. Installation and handover The form below shall be filled out upon installation. Liftup A/S | Hagensvej 21 | DK-9530 Støvring | Denmark | +45 96 86 30 20 |... -
Page 28: Maintenance Checklist
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 15. Maintenance checklist In addition to the general maintenance described in section 12, we recommend, as the manufacturer, that routine inspections are undertaken every 6 months by an authorized service technician*. - Page 29 USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 Liftup A/S | Hagensvej 21 | DK-9530 Støvring | Denmark | +45 96 86 30 20 | support@liftup.dk | www.liftup.dk | CVR DK-1015 3964...
-
Page 30: Service Logbook
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 16. Service logbook This form (like the one below), shall be filled in after each inspection. The logbook should be kept together with the lift. Liftup A/S | Hagensvej 21 | DK-9530 Støvring | Denmark | +45 96 86 30 20 | support@liftup.dk | www.liftup.dk | CVR DK-1015 3964... -
Page 31: Spare Parts And Accessories
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 17. Spare parts and accessories IMPORTANT! It is important to use only original spare parts. Replacement of parts may only be undertaken by a qualified service technician. The use of non-original spare parts may void the right of complaint. - Page 32 USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 Art. No. Description Illustration Actuator for door 101326 EasyLift 800/900 (grey) Actuator for door EasyLift 102355 800/900 (black) Actuator for door EasyLift 103679 1100 (grey) Actuator for door EasyLift 104179...
- Page 33 USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 Art. No. Description Illustration PCB for connection box FS2 / 102726 ELV3 102773 Friction clutch for ramp lock Battery 12V 5Ah LiFePo4 102890 Raizer / FS2 / EL400 Power supply unit 36 V -...
-
Page 34: Disassembly
USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 18. Disassembly In order to ensure correct disassembly for any re-use in another installation, we recommend using an authorized service technician*. Contact your dealer for assistance with disassembly. Bear in mind that there may be a risk of overturning when the lift is detached from the building structure. - Page 35 USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ _____________________________________________________________________________ Liftup A/S | Hagensvej 21 | DK-9530 Støvring | Denmark | +45 96 86 30 20 | support@liftup.dk | www.liftup.dk | CVR DK-1015 3964...
- Page 36 USER MANUAL – EASYLIFT V3 PLUS – GB VERSION 2.1 Liftup A/S | Hagensvej 21 | DK-9530 Støvring | Denmark | +45 96 86 30 20 | support@liftup.dk | www.liftup.dk | CVR DK-1015 3964...
