6

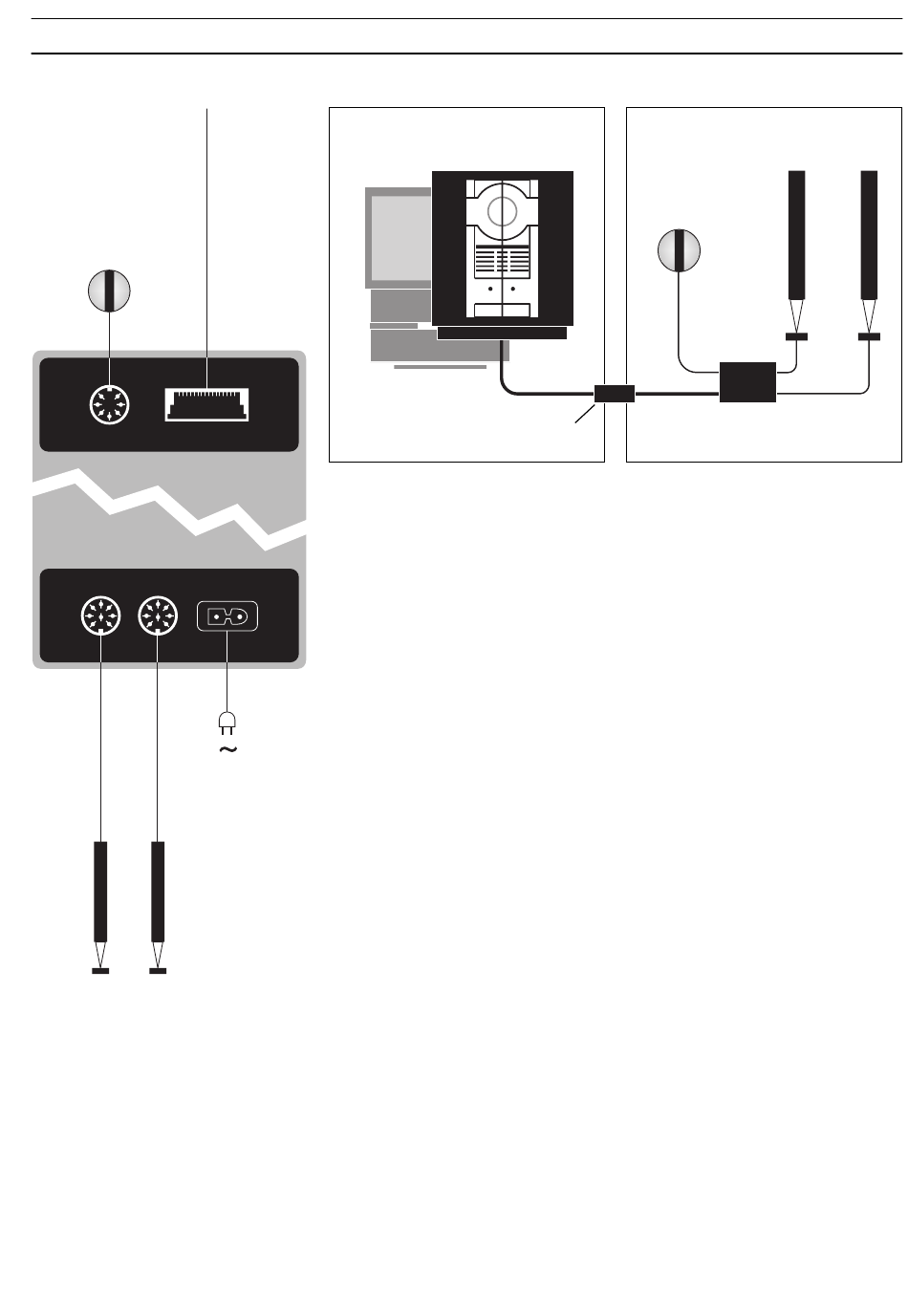

> Connections
BeoLink
connection
to the central
system
You may connect one speaker to
each of the Power Link sockets
– or you may loop the signals
through from speaker to
speaker as mentioned in the
User's guide for your speakers.
Central System
Junction box
In the local room: Using a BeoLink cable, connect the multi-
pin plug to the socket marked MASTER LINK on the
BeoLink Active box, and run the cable to the junction
box.
Using Power Link cables (8-pin DIN), connect your active
speakers to the sockets marked POWER LINK.
Remember to set the L•R•LINE switch on each
speaker to L and R (left and right channel),
respectively.
In the central room: Using a BeoLink cable, connect the
flat multi-pin plug to the socket marked MASTER
LINK (or BEOLINK) on the central system, and run the
cable to the junction box.
Inside the BeoLink junction box: Join the cables as
explained in the documentation enclosed with the
box. This document contains information of the many
possibilities of the box and how to join the cables.
Local System
BeoLink Active box
