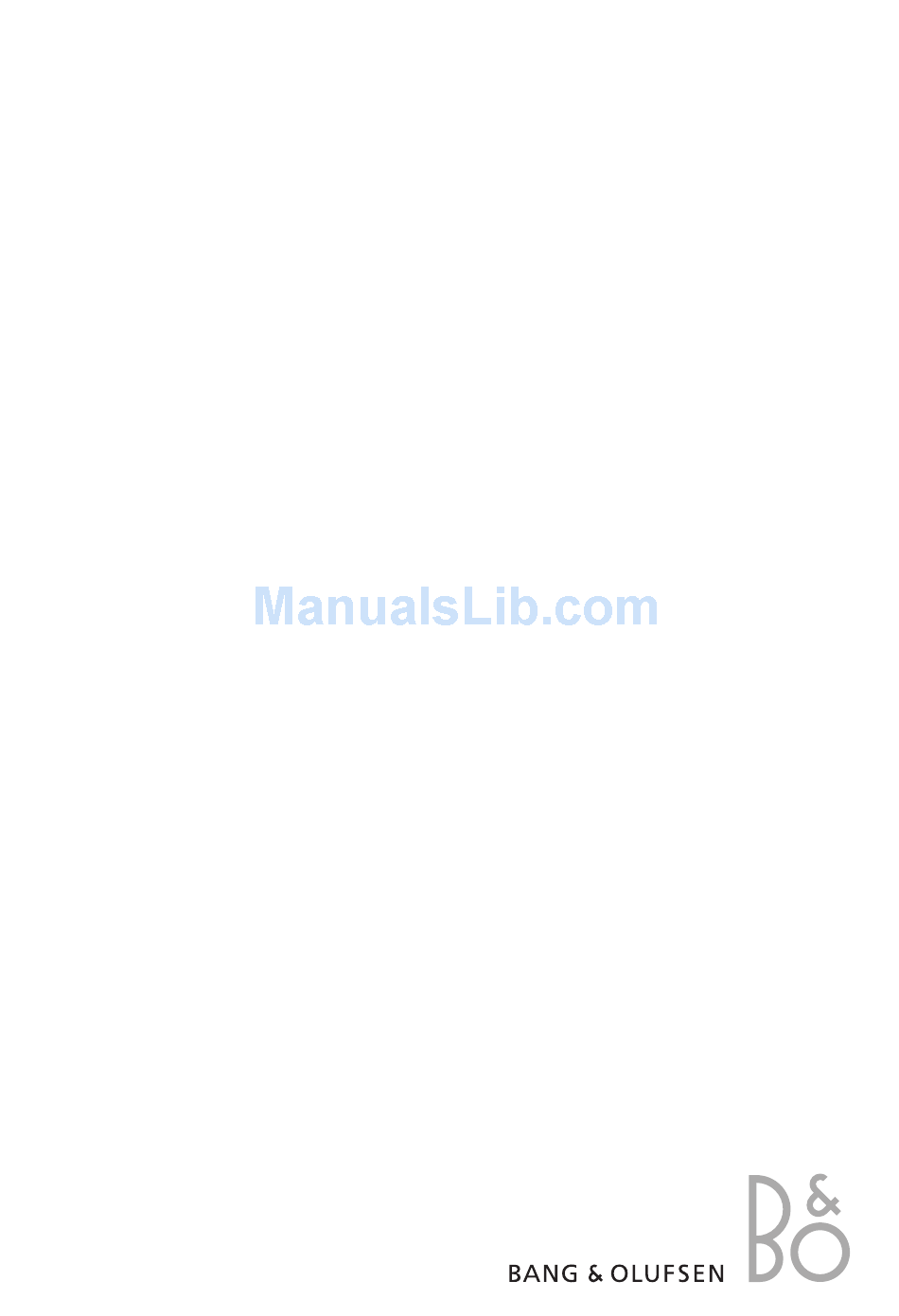

- Page 1 BeoLink Active ® Setting-up Guide...
- Page 2 For the US-market only! NOTE: This equipment has been tested and CAUTION found to comply with the limits for a class B RISK OF ELECTRIC SHOCK DO NOT OPEN digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide CAUTION: To reduce the risk of reasonable protection against harmful inter- electric shock, do not remove...
- Page 3 The main room is the room in This guide describes how to in- The BeoLink distribution system which you have placed your stall your BeoLink Active kit in a enables you to control your main audio system and/or video system BeoLink distribution system.
- Page 4 P L A C E M E N T To fasten the BeoLink Active receiver to the wall: 1 Using the wall bracket as a template, mark and drill the holes in the wall. 2 Using the two screws and wall plugs supplied (A), fas- ten the wall bracket.
- Page 5 Using the cable supplied, connect the BeoLink Active re- ceiver as follows: 1 Detach the rear cover of the BeoLink Active receiver (unscrew the two screws (C) and loosen the two screws (D), then lift off the cover).
- Page 6 In the link room: Using a Master Link cable, connect the multi-pin plug to the socket marked MASTER LINK on the BeoLink Active box, and run the cable to the junc- tion box. Using Power Link cables (8-pin DIN), connect your ac- tive speakers to the sockets marked POWER LINK.
- Page 7 BeoLink Active (to re-enable re- mote control, select one of the other options). Option 4: To be used if you install the BeoLink Active in the same room as your main system (e.g. in a large L-shaped living room with two separate listening posi- tions).
- Page 8 3500926 0702...
