LEGRAND Kenall Helos HPG14 Installation Instructions

HELOS HPG14
™
When using electrical equipment, basic safety precautions should always be followed, including the following:
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION
CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT
AND THE HAZARDS INVOLVED. DISCONNECT POWER TO ALL CIRCUITS BEFORE WIRING FIXTURE. INSTALL IN
ACCORDANCE WITH ALL NATIONAL, STATE, AND LOCAL CODES. DO NOT CONNECT TO AN UNGROUNDED SUPPLY. READ ALL
FIXTURE MARKINGS AND LABELS TO ENSURE CORRECT INSTALLATION OF FIXTURE. SUPPLEMENTAL INSTRUCTIONS MAY BE
LOCATED ON THE FIXTURE, IN ADDITION TO THIS INSTRUCTION SHEET, REGARDING ORIENTATION, OR MOUNTING RESTRICTIONS.
CE PRODUIT DOIT ÊTRE INSTALLÉ SELON LE CODE D'INSTALLATION PERTINENT, PAR
UNE PERSONNE QUI CONNAÎT BIEN LE PRODUIT ET SON FONCTIONNEMENT AINSI QUE LES
THE DOWNLIGHT CONTAINS SENSITIVE ELECTRONICS. TAKE CARE TO AVOID DAMAGE BY IMPROPER HANDLING OR STATIC
ELECTRICITY DISCHARGE (ESD). EITHER TYPE OF DAMAGE COULD RENDER THE SYSTEM INOPERABLE OR CAUSE LATENT FAILURE.

Trunnion Kit

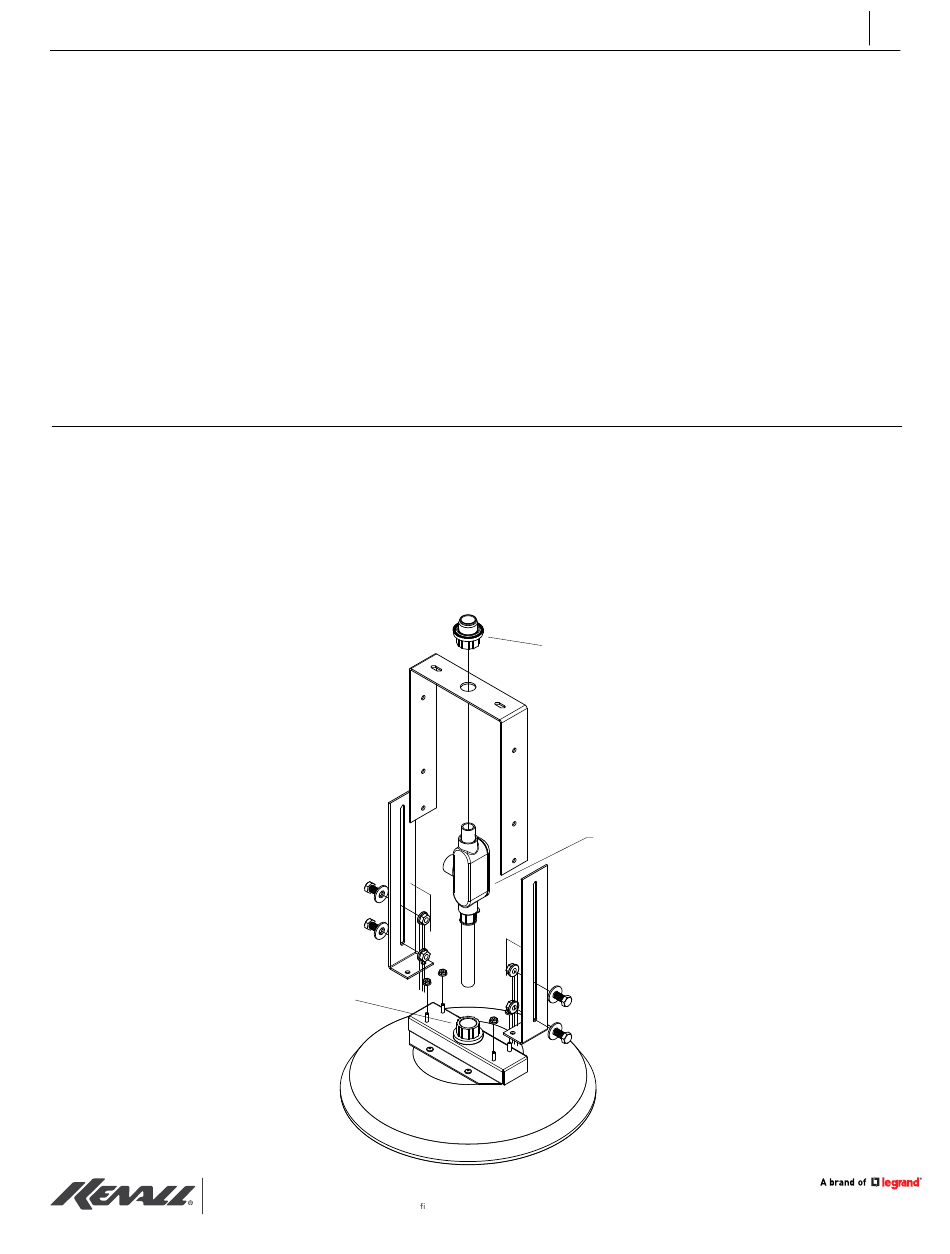

1. Assemble trunnion kits as shown using (4) ¼ - 20 x .500" screws, washers, and nuts (provided). Shown in Figure (1).
2. Attach trunnion brackets to trunnion box shown on the top of the fixture with (4) 10-32: hex nuts (provided). Shown in
Figures (1 & 2).
3. Install 3/4" NPT conduit hub (supplied by others) into trunnion box.
4. Make electrical connections in conduit body (supplied by others). Attach ¾" NPT conduit hub (supplied by others) between conduit
and J-box.
www.kenall.com | P: 800-4-Kenall | F: 262-891-9701 | 10200 55th Street Kenosha, Wisconsin 53144, USA
This product complies with the Buy American Act: manufactured in the United States with more than 50% of the component cost of US origin. It may be covered by patents
found at www.kenall.com/patents. Content of speci cation sheets is subject to change; please consult www.kenall.com for current product details. ©2019 Kenall Mfg. Co.

IMPORTANT SAFEGUARDS

RISQUES INHÉRENTS.
SAVE THESE INSTRUCTIONS
Conduit hub (by others)
INSTALLATION INSTRUCTIONS
Conduit hub (by others)
Conduit body and
Conduit (by others)
