ME500A
BLACK BOX
PWR
TX
RX
RTS
CD
SPECIFICATIONS
Transmission Format: Synchronous or Asynchronous, 2-wire/half duplex or 4-wire/full or half duplex.
Interface: RS-232 (CCITT V.24) connection via DB25 female; Twisted-pair connection via RJ-45
Transmission Line: 2- or 4-wire UTP, 19 to 26 AWG.
Data Rates: Synchronous or Asynchronous at 1.2, 1.8, 2.4, 3.6, 4.8, 7.2, 9.6, 14.4, 19.2, 28.8, 38.4, 57.6,
and 64 kbps. (Switch-selectable)
Clocking: Internal, External, or Receive Recover.
Controls: Carrier Constantly ON or Controlled by RTS; RTS/CTS delay set to no delay, 7 ms, or 53 ms.
Applications: Point-to-Point or Multipoint.
Indicators: Mono-color LED's for TX, RX, RTS, and CD; Single LED's for Power, Test, and Error.
RTS Anti-Stream Timer: 12.5 sec., 50 sec., or disabled (switch-selectable); Tolerance: +50%, -0.
Diagnostics: V.52-compliant bit-error-rate pattern (511/511E pattern) generator and detector with
error-injection mode; V.54 compliant--Local Analog Loopback and Remote Digital Loopback,
activated by front-panel switch or via RS-232 interface.
Transformer Isolation: 2000 V RMS.
Surge Protection: Immune to IEC-801-5 Level 2, 1kv.
Power Supply: 100 to 242 VAC Universal Interface.
Async
Sync
Industrial Line Driver
511
ERROR
TEST
Remote
Normal
Local
511E
:
DB25
Female
Conn.
1 2 3 4 5 6 7 8
The Async/Sync Industrial Line Driver operates 2-wire (half-duplex) or 4-wire (full- or half-duplex), in synchronous or asynchronous
modes, over unconditioned telephone lines. The Line Driver supports data rates up to 64 kbps. It operates in synchronous mode between
the local and remote modems; when connected to an asynchronous RS-232 device, the Line Driver converts the asynchronous data to
synchronous data.
To enhance overall performance, the Line Driver features equalization, anti-streaming timer, transformer isolation (to guard against data
loss due to ground-potential differences), and Silicon Avalanche Diode surge protection (to guard against data-lone transients).
The Async/Sync Industrial Line Driver features V.52-compliant bit-error-rate pattern tests and two V.54 test modes (local analog loopback
and remote digital loopback). The operator at the local end can test both local and remote modems, plus the line, in the digital-loopback mode.
Both RDL and LAL modes can be controlled by a manual switch or via the V.24/RS-232 interface.
Configuration Switches:
The Async/Sync Industrial Line Driver uses 24 external mini DIP switches that allow configuration to an extremely wide range of
applications. These 24 DIP switches are grouped into three eight-switch sets, and are externally accessible from the underside of
the unit. Since all configuration DIP switches are externally accessible, there is no need to open the case for configuration.
The configuration switches allow you to select data rates, clocking methods, V.52 and V.54 tests, word lengths, extended signaling
rates, async or sync mode, 2- or 4-wire operation, anti-stream control, and input impedance.
PWR
TX
ON
RX
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
RTS
CD
ERROR
TEST

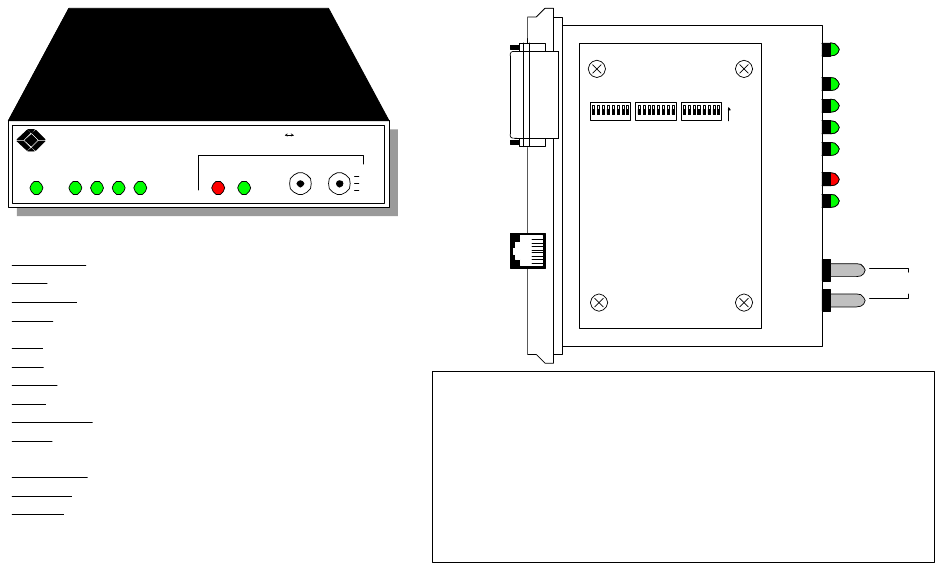

BOTTOM OF UNIT
INTRODUCTION:
CONFIGURATION:
TOGGLE
SWITCHES

Advertisement

loading
Need help?

Need help?

Do you have a question about the ME500A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Black Box ME500A

  • Page 1 ME500A DB25 Female Conn. 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Async Sync BLACK BOX Industrial Line Driver ERROR TEST Remote ERROR Normal...
  • Page 2 POSITION FUNCTION FACTORY DEFAULT S1-1 DATA RATE S1-2 DATA RATE 9600 bps S1-3 DATA RATE S1-4 DATA RATE S1-5 CLOCK SOURCE Data Rate Settings: S1-6 CLOCK SOURCE INTERNAL S1-7 ASYNC/SYNC ASYNC S1-1 S1-2 S1-3 S1-4 S3-3 SETTING (kbps) S1-8 CARRIER CONTROL Constantly ON Switches S1-1 through S1-4 and S3-3: Data-Rate Setting are set in combination to determine the asynchronous and synchronous data rate for the Async/Sync...
  • Page 3 POSITION FUNCTION FACTORY DEFAULT POSITION FUNCTION FACTORY DEFAULT S2-1 WORD LENGTH S3-1 INPUT IMPEDANCE S2-2 WORD LENGTH 10 BITS S3-2 INPUT IMPEDANCE 200 ohms S2-3 -2.5% to 1% S3-3 Extended Signaling Rate TIMING MODE S2-4 RTS/CTS DELAY S3-4 Point-to-Point TOPOLOGY S2-5 RTS/CTS DELAY 7 ms...
  • Page 4 INSTALLATION: The Async/Sync Industrial Line Driver operates in four twisted-pair topologies: 2-wire/point-to-point, 2-wire/multipoint, 4-wire/point-to-point, and 4-wire/multipoint. In each of these topologies, the twisted-pair wire must be 19 to 26 AWG dry, unconditioned metallic wire. Dial-up analog circuits, such as those used with a standard Hayes- type modem, are not acceptable.
  • Page 5 2-W POINT-to-POINT APPLICATION XMT+ XMT+ XMT- XMT- CONNECTION TO GROUND IS OPTIONAL 4-W POINT-to-POINT APPLICATION RCV- XMT- XMT+ RCV+ XMT- RCV- RCV+ XMT+ CONNECTION TO GROUND IS OPTIONAL 4-W POINT-to-MULTIPOINT APPLICATION RCV- XMT- XMT+ RCV+ XMT- RCV- RCV+ XMT+ XMT- RCV+ RCV- XMT+...
  • Page 6: Operation

    OPERATION: Once you've configured each Async/Sync Line Driver and connected the twisted-pair and RS-232 cables, you're ready to operate the Line Drivers. LED Status Monitors: The Line Drivers have seven front-panel status LED's that indicate the condition of the Line Driver and communication link. The power, TX, and RX Indicators: The Power LED lights green to signal that power is present.
