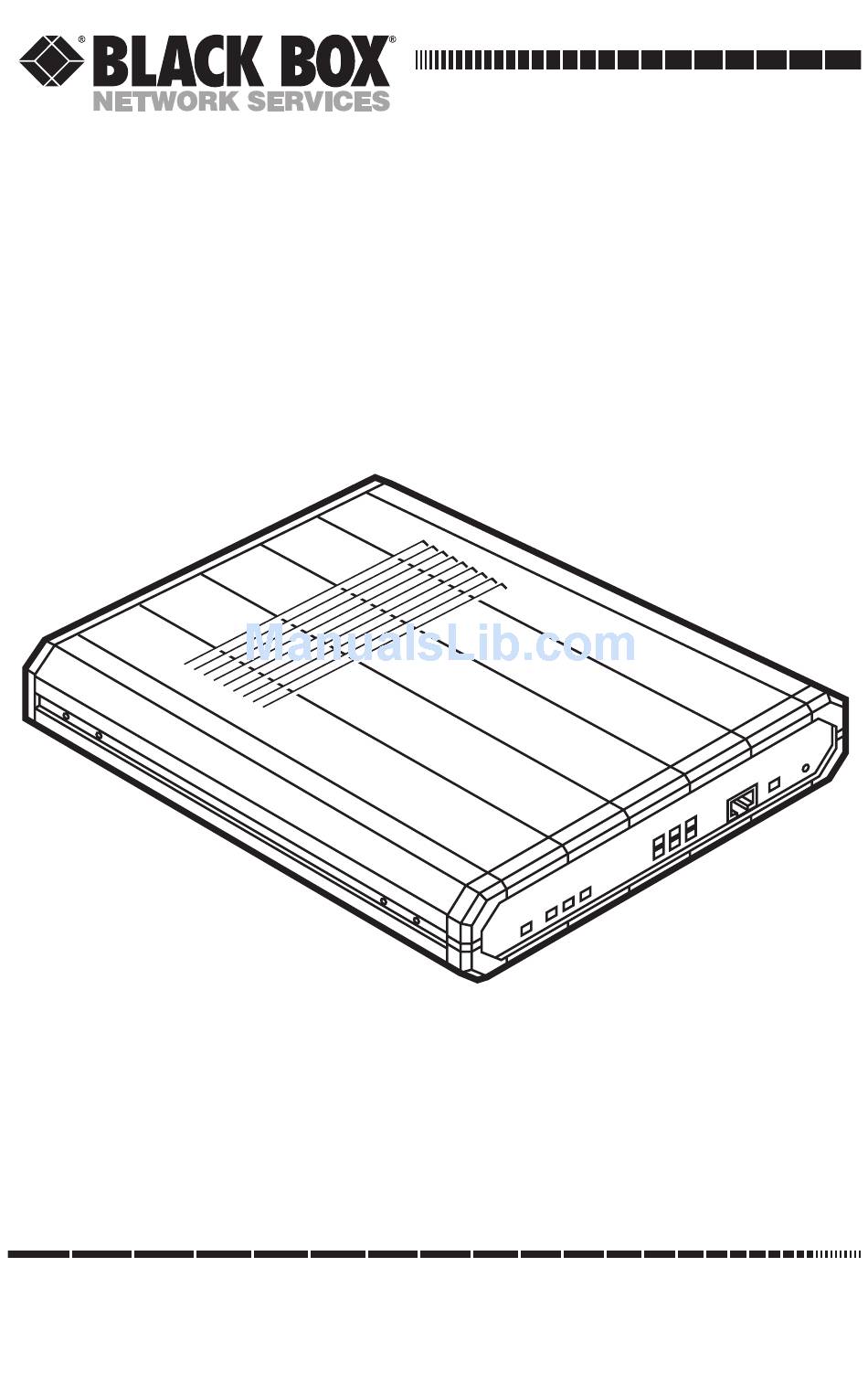

FradSwitch A/S 3 Port
CUSTOMER
SUPPORT
INFORMATION
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
JANUARY 2004
MT760A-232/232
MT760A-232/V35
MT760A-V35/V35
MT760A-X21/X21
MT760A-530/530
MT760A-530/232
MT760A-DDS/232
MT760A-DDS/V35
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box MT760A-232/232
Summary of Contents for Black Box MT760A-232/232
- Page 1 Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) SUPPORT FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 INFORMATION Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com...
- Page 2 FCC/IC STATEMENTS FEDERAL COMMUNICATIONS COMMISSION CANADIAN DEPARTMENT OF COMMUNICATIONS RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is...
- Page 3 FRADSWITCH A/S 3 PORT TELECOMMUNICATION SAFETY STATEMENTS Always observe standard safety precautions during installation, operation, and maintenance of this product. Only a qualified and authorized service personnel should carry out adjustment, maintenance, or repairs to this instrument. No adjustment, maintenance, or repairs should be performed by either the operator or the user.
- Page 4 DECLARATION OF CONFORMITY (CE) DECLARATION OF CONFORMITY (CE) The manufacturer declares that the Fradswitch A/S 3 Port conforms to the following standards: EMC: EN 55022 (1994) Limits and methods of measurement of radio- disturbance characteristics of information- technology equipment. EN 50082-1 (1992) Electromagnetic compatibility: Generic immunity standards for residential, commercial, and light industry.
- Page 5 FRADSWITCH A/S 3 PORT NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
- Page 6 NOM STATEMENT 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada. 13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.
-
Page 7: Table Of Contents
FRADSWITCH A/S 3 PORT Contents Chapter Page 1. Specifications ................... 10 1.1 The Main-Link Ports (All Numbered Ports Except Port 1 on “-DDS” Models) ............10 1.2 The DDS Port (Port 1 on “-DDS” Models Only) ......11 1.3 The Control Port ................11 1.4 The Unit As a Whole ................ -
Page 8: Chapter Page
Chapter Page 5. Troubleshooting ..................31 5.1 Things to Try First ................31 5.2 Calling Black Box ................31 5.3 Shipping and Packaging ..............32 Appendix: Connector Pinouts ............... 33 A.1 The RS-232 Interfaces ............... 33 A.2 The RS-530 Interface ................ 34 A.3 The V.35 Interface ................ -
Page 9: Specifications
FRADSWITCH A/S 3 PORT 1. Specifications 1.1 The Main-Link Ports (All Numbered Ports Except Port 1 on “-DDS” Models) Interfaces — Models with “232” in their product code: EIA/TIA RS-232 (ITU-T V.24/V.28); Models with “530” in their product code: EIA/TIA RS-530; Models with “V35”... -
Page 10: The Dds Port (Port 1 On "-Dds" Models Only)
CHAPTER 1: Specifications Connectors (continued) — On adapter cables: For each V.35 port: (1) M/34 female; For each X.21 port: (1) DB15 female 1.2 DDS Port (Port 1 on “-DDS” Models Only) Interface — Digital Data Service (DDS) as per AT&T ®... -
Page 11: The Unit As A Whole
FRADSWITCH A/S 3 PORT Terminal Handling — Enhanced asynchronous (exceeds X.3 requirements) (1) Front-mounted RJ-45 female Connector — 1.4 The Unit As a Whole Compliance — FCC Part 15 Subpart J Class A, DOC Class/MDC classe A User Controls — (1) Front-mounted recessed reset pushbutton;... -
Page 12: Introduction
“-DDS” models have a DDS interface on port 1 which is always DTE. The FradSwitch A/S 3 Port supports a wide range of applications. For information on configuring the FradSwitch’s firmware, refer to the Packet Switching Guide (call Black Box for a copy if you did not receive one with your FradSwitch). -
Page 13: Configuration And Installation
FradSwitch’s DB25 connector to a V.35-native M/34 connector or an X.21- native DB15 connector. If anything is missing or damaged, contact Black Box right away. NOTE We suggest that you save the packing material and carton in case it... -
Page 14: Site Requirements
CHAPTER 3: Configuration and Installation 3.2 Site Requirements Power: The FradSwitch A/S 3 Port unit should be installed within 5 ft. (1.5 m) of an easily accessible, grounded AC outlet capable of furnishing power at the voltage it needs (100 to 230 VAC). Control-Port Connections: The FradSwitch A/S 3 Port has an RJ-45 connector for its asynchronous supervisory-control port (see the Appendix for this port’s pinout). -
Page 15: Hardware Configuration
FRADSWITCH A/S 3 PORT 3.3 Hardware Configuration The FradSwitch A/S 3 Port contains two different types of printed circuit boards, as shown in Figure 3-1 below. The main board contains most of the FradSwitch’s circuits, and has two jumpers. Three main-link interface boards carry interface- specific logic. -
Page 16: Accessing The Pcbs
CHAPTER 3: Configuration and Installation 3.3.1 A CCESSING THE CAUTION! In order to avoid the possibility of electrical shock, always unplug the FradSwitch A/S 3 Port before opening it. To access the printed circuit boards of the FradSwitch A/S 3 Port, loosen the screws on the bottom of the Switch and remove the unit’s top cover. - Page 17 FRADSWITCH A/S 3 PORT LINK 3 U1-X21 JP1 JP2 LINK 1 U1-X21 JP6 JP7 DTE↔DCE DTE↔DCE LINK 2 JP3,4,5 U1-X21 4M 8M DTE↔DCE JP21 JP22 JP25 JP28 JP27 AUTO JP30 EN AUTO Figure 3-2. The jumpers on the FradSwitch A/S 3 Port’s main circuit board (MT760A-X21/X21 model shown).
-
Page 18: The Jumper Banks On The Interface Boards
CHAPTER 3: Configuration and Installation 3.3.3 T UMPER ANKS ON THE NTERFACE OARDS The FradSwitch A/S 3 Port’s main-link ports can be any of these interfaces, each of which is controlled by an interface-specific “interface board” (daughterboard) mounted on the main circuit board: •... -
Page 19: Installing A Switch In A 19" Rack (Optional)
FRADSWITCH A/S 3 PORT 3.4 Installing a Switch in a 19" Rack (Optional) The FradSwitch A/S 3 Port can be installed in a 19" rack, where it takes up 1U (1.75", 4.4 cm) of vertical space. A rackmount kit (our product code LRRACK) provides the hardware necessary to do this: two long-arm brackets, four screws, and four washers. -
Page 20: Attaching Cables To The Switch
RJ-45 male to RJ-45 male 8-wire twisted-pair cable from the control port to the adapter. (Call Black Box Technical Support to discuss either application. In neither case should you exceed the normal RS-232 maximum distance of 50 ft./15.2-m.) -
Page 21: Connecting To The Non-Dds Main-Link Ports
FRADSWITCH A/S 3 PORT 3.5.3 C -DDS M ONNECTING TO THE ORTS You can always use straight-through cables for these connections if you set the FradSwitch A/S 3 Port’s interface-board DTE/DCE jumpers correctly (see Section 3.3.3). (On X.21 models, the X.21 DCE jumpers also need to be set correctly—see Section 3.3.2.) Beyond this, the type of cable you connect depends on the link-port’s interface: •... -
Page 22: Connecting Ac Power
CHAPTER 3: Configuration and Installation 3.5.4 C AC P ONNECTING OWER AC power should be supplied to the FradSwitch A/S 3 Port through a power cord terminated by a standard 3-prong plug, such as the 5-ft. (1.5-m) cord provided with the Switch. -
Page 23: Operation
FRADSWITCH A/S 3 PORT 4. Operation The FradSwitch A/S 3 Port supports a wide range of applications. These include: • Connection of a bridge/router using HDLC encapsulation over Frame Relay. • Encapsulating private X.25 over Frame Relay networks. • Connecting SDLC/QLLC/LLC environment T-PADs and FEPs over X.25 or Frame Relay Networks. - Page 24 CHAPTER 4: Operation Table 4-1. The Switch’s Front-Panel Controls, Indicators, and Connectors No. in Component Function Fig. 4-1 PWR LED Lights when the FradSwitch A/S 3 Port is powered ERR LED Lights when a hardware malfunction is detected during the power-up self-test or after you press the RESET pushbutton.
-
Page 25: Rear-Panel Components
FRADSWITCH A/S 3 PORT 4.1.2 R ANEL OMPONENTS The FradSwitch A/S 3 Port’s rear panel is shown in Figure 4-2 below. Its numbered components are descibed in Table 4-2 below. CH.2 V-24 CH.3 CH.1 V-24 V-24 100-230VAC/ 0.25A T 250V Figure 4-2. -
Page 26: Basic Operating Instructions And Indications
CHAPTER 4: Operation 4.2 Basic Operating Instructions and Indications Once you install and configure the FradSwitch A/S 3 Port, it normally operates unattended. After initial setup, operator intervention is only required when the Switch has to be reconfigured or if something goes wrong. Note that the Switch stores its configuration in nonvolatile RAM (NVRAM), so it won’t lose its configuration if it loses power. -
Page 27: Upgrading The Switch's Firmware
FRADSWITCH A/S 3 PORT 4.3 Upgrading the Switch’s Firmware Because the FradSwitch A/S 3 Port has flash memory, you can upgrade its firmware without replacing its EPROMs. To do so, take these steps: 1. Connect a PC running terminal emulation to the switch’s control port. Configure the terminal emulator to transmit and receive at 9600 bps using no parity, 8 data bits, and 1 stop bit (“9600,N,8,1”). - Page 28 CHAPTER 4: Operation 5. Select option 12. This screen will appear: ********************************************************** WARNING !!! THIS ACTION WILL ENABLE YOU TO DOWNLOAD SOFTWARE VERSION AFTER RESET. * * * Type: LINK1 for download through link 1. LINK2 for download through link 2. LINK3 for download through link 3.
- Page 29 FRADSWITCH A/S 3 PORT panel, or (c) unplugging the Switch and plugging it back in again. This screen appears: ************************************************************ * Software Upgrade System Please select one of the following: 9600 bit/s 19200 bit/s 38400 bit/s Run the existing software (NO download) * ************************************************************...
- Page 30 CHAPTER 5: Troubleshooting 8. If you want to abort the upgrade process, select option 6. Otherwise, select your desired firmware-transfer data rate. (Regardless which option you choose, the number whose key you press will not appear on screen.) If you were to choose option 3, this message would appear: ************************************************************ * Software Upgrade...
-
Page 31: Troubleshooting
5.2 Calling Black Box If you determine that your FradSwitch A/S 3 Port is malfunctioning, do not attempt to alter or repair the unit. It contains no user-serviceable parts. Contact Black Box Technical Support at 724-746-5500. Before you do, make a record of the history of the problem. We will be able to... -
Page 32: Shipping And Packaging
If you need to transport or ship your FradSwitch A/S 3 Port: • Package it carefully. We recommend that you use the original container. • Before you ship the unit back to Black Box for repair or return, contact us to get a Return Materials Authorization (RMA) number. -
Page 33: Appendix: Connector Pinouts
FRADSWITCH A/S 3 PORT Appendix: Connector Pinouts A.1 The RS-232 Interfaces Here are the EIA/TIA RS-232 pinouts for the FradSwitch A/S 3 Port’s RS-232/V.24 main-link-ports and for the Switch’s front-panel control port. Note that the main- link port is a DB25 female connector with standard RS-232 pinning and that the control port is a proprietarily pinned RJ-45 female connector. -
Page 34: The Rs-530 Interface
APPENDIX: Connector Pinouts A.2 The RS-530 Interface Here is the EIA/TIA RS-530 pinout for the FradSwitch A/S 3 Port’s RS-530 main- link-ports. This is also the pinout for the unadapted X.21 main-link ports; the adapter cable that comes with the X.21 versions of the Switch patches these ports to their standard DB15 connector (see Section A.4). -
Page 35: The V.35 Interface
FRADSWITCH A/S 3 PORT A.3 The V.35 Interface Here is the ITU-T V.35 pinout for the FradSwitch A/S 3 Port’s V.35 main-link- ports, both unadapted (proprietarily pinned out on DB25) and patched with adapter cable (pinned out on standard M/34). ITU-T V.35 V.35... -
Page 36: The X.21 Interface
LEGAL INFORMATION A.4 The X.21 Interface Here is the ITU-T X.21 pinout for the FradSwitch A/S 3 Port’s X.21 main-link- ports, both unadapted (pinned out as per RS-530 on DB25) and patched with adapter cable (pinned out on standard DB15). ITU-T RS-530 V.35 Signal... - Page 37 FRADSWITCH A/S 3 PORT NOTICE This manual contains information that is proprietary to the manufacturer. No part of this publication may be reproduced in any form whatsoever without prior written approval. DISCLAIMERS No representation or warranties for fitness for any purpose other than what is specifically mentioned in this manual is made either by the manufacturer or its agents.
- Page 38 © Copyright 2004. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
