CUSTOMER
SUPPORT
INFORMATION
Multiport CSU/DSU
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
s
S t a t u
D T E
R a t e
L i n e
n e c t
- C o n
Q u i c k
I
O N
O
O F F
JANUARY 1999
e s
M o d
T e s t
- E r r o
- O f f
l -
- N o r
L o c a
a l -
N o r m
o t e -
R e m
r n
P a t t e
L o o p
L i n e
s
S t a t u
l e
M o d u
f a c e
I n t e r
P o r t
f a c e
I n t e r
MT210A
S U
S U / D
p o r t C
M u l t i
r e d
o r t
m a l
r o l P
C o n t
L i n e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT210A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Box MT210A

Summary of Contents for Black Box MT210A

  • Page 1 Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) SUPPORT FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 INFORMATION Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com...
  • Page 2 MULTIPORT CSU/DSU FEDERAL COMMUNICATIONS COMMISSION CANADIAN DEPARTMENT OF COMMUNICATIONS RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is...
  • Page 3 MULTIPORT CSU/DSU FCC REQUIREMENTS FOR DIGITAL EQUIPMENT 1. This equipment complies with Part 68 of the FCC rules. The unit bears a label that contains the FCC registration number. If requested, you must provide this information to the telephone company. 2.
  • Page 4 MULTIPORT CSU/DSU CERTIFICATION NOTICE FOR EQUIPMENT USED IN CANADA The Canadian Department of Communications label identifies certified equipment. This certification means that the equipment meets certain telecommunications-network protective, operation, and safety requirements. The Department does not guarantee the equipment will operate to the user’s satisfaction.
  • Page 5 MULTIPORT CSU/DSU NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
  • Page 6 MULTIPORT CSU/DSU 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada. 13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.
  • Page 7 MULTIPORT CSU/DSU TRADEMARKS The trademarks mentioned in this manual are the sole property of their owners.

  • Page 8: Table Of Contents

    MULTIPORT CSU/DSU Contents 1. Specifications ........... . . 8 2.

  • Page 9: Specifications

    MULTIPORT CSU/DSU 1. Specifications Compatibility—AT&T 62310 DDS Line Interface—Externally accessible RJ-48 female Transmission Format—Synchronous or asynchronous Transmission Line—Two unconditioned twisted pair Clock Options—Internal, external, receive loopback, and campus Interfaces—Modules: RS-232 (DB25 female), RS-422/530 (DB25 female), V.35 (M/34 female), X.21 (DB15), G.703 (RJ-45), Ethernet Bridge Speeds—Synchronous: 2.4, 4.8, 9.6, 19.2, 56, and 64 kbps;...
  • Page 10 MULTIPORT CSU/DSU Power—Universal Input (UI): 100 to 253 VAC; Input: DC: 18 VDC to 72 VDC, 48 V nominal Size—1.6"H x 7.3"W x 6.6"D (4.1 x 18.5 x 16.8 cm) Weight—2 lb. (0.9 kg)

  • Page 11: Introduction

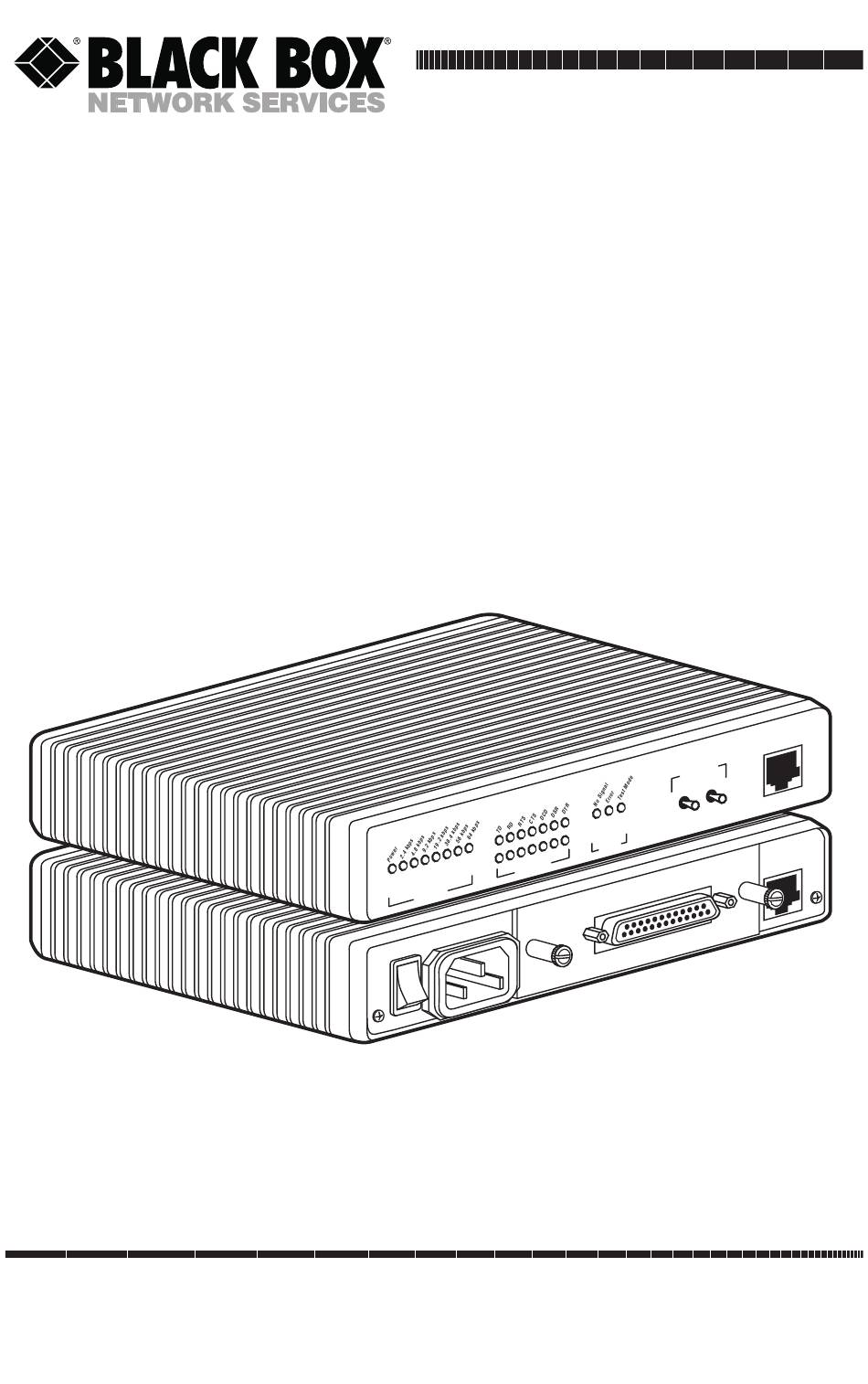

    MULTIPORT CSU/DSU 2. Introduction 2.1 Description The Multiport CSU/DSU (part number MT210A) provides Digital Data Service (DDS) access. It connects to your network devices via your choice of interchangeable interface modules. With sync operation at up to 64 kbps or async at up to 57.6 kbps, the CSU/DSU is versatile, reliable, and hassle-free.
