2.

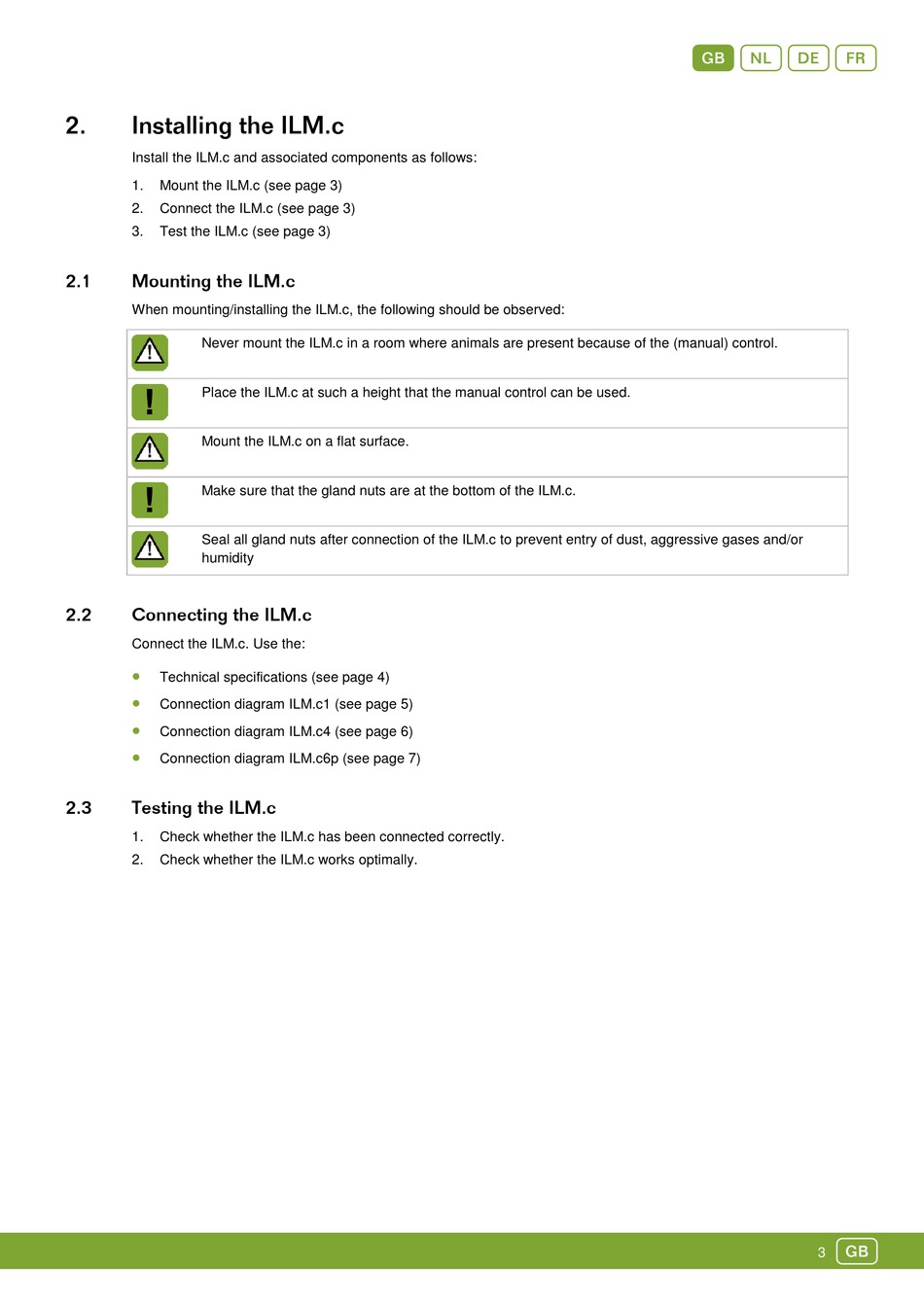

Installing the ILM.c

Install the ILM.c and associated components as follows:
1.
Mount the ILM.c (see page 3)
2.
Connect the ILM.c (see page 3)
3.
Test the ILM.c (see page 3)
2.1

Mounting the ILM.c

When mounting/installing the ILM.c, the following should be observed:
Never mount the ILM.c in a room where animals are present because of the (manual) control.
Place the ILM.c at such a height that the manual control can be used.
Mount the ILM.c on a flat surface.
Make sure that the gland nuts are at the bottom of the ILM.c.
Seal all gland nuts after connection of the ILM.c to prevent entry of dust, aggressive gases and/or
humidity
2.2

Connecting the ILM.c

Connect the ILM.c. Use the:
Technical specifications (see page 4)
Connection diagram ILM.c1 (see page 5)
Connection diagram ILM.c4 (see page 6)
Connection diagram ILM.c6p (see page 7)
2.3

Testing the ILM.c

1.
Check whether the ILM.c has been connected correctly.
2.
Check whether the ILM.c works optimally.
