STEEL WELDED BOLD AND DIAMOND PLATE SERIES
INSTALL INSTRUCTIONS
ALL CABINETS MUST BE MOUNTED TO STUDS ON A SECURE WALL, AS PER THESE
INSTRUCTIONS. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY AND VOIDS
PRODUCT WARRANTY AND MANUFACTURER'S LIABILITY.

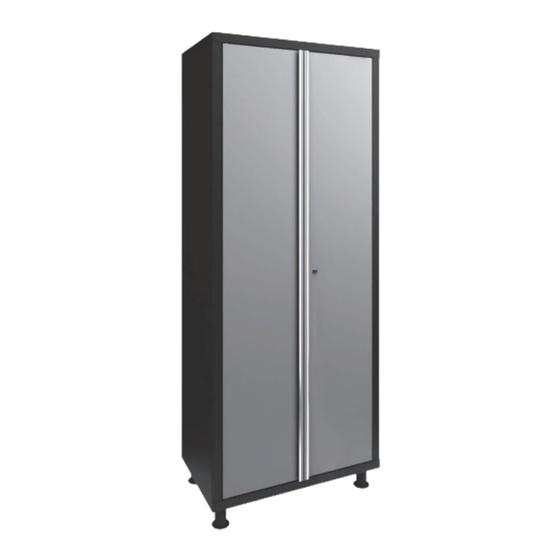

LOCKER CABINET
WARNING:
DO NOT OVERLOAD CABINETS! CABINETS
ARE DESIGNED TO CARRY THE FOLLOWING
MAXIMUM WEIGHT CAPACITIES:
Cabinet
Shelf Weight
Capacity (lbs)
Locker
50
Wall
40
2 Door Base
50
3 Drawer Base
40
1 Drawer, 2 Door Base
40
NEED MORE INFORMATION
WALL CABINET
1 DRAWER, 2 DOOR
BASE CABINET
Overall Weight
Capacity
300
100
200
200
200
, 1 877 306 8930
?
TRY
52" WORKTOP
26" WORKTOP
3 DRAWER BASE CABINET
WARNING:
EXCESSIVE WEIGHT HAZARD
• Use two or more people to move, assemble or install
cabinet or locker.
• Failure to do so can result in back or other injury.
DO NOT LEAVE CHILDREN UNATTENDED NEAR
CABINETS. WHEN FULLY LOADED, CABINETS ARE
HEAVY AND THERE IS A RISK OF CABINETS OR
ITEMS TIPPING IF IMPROPERLY OPENED.
FOR ANSWERS TO COMMONLY ASKED QUESTIONS
2 DOOR BASE CABINET
.
