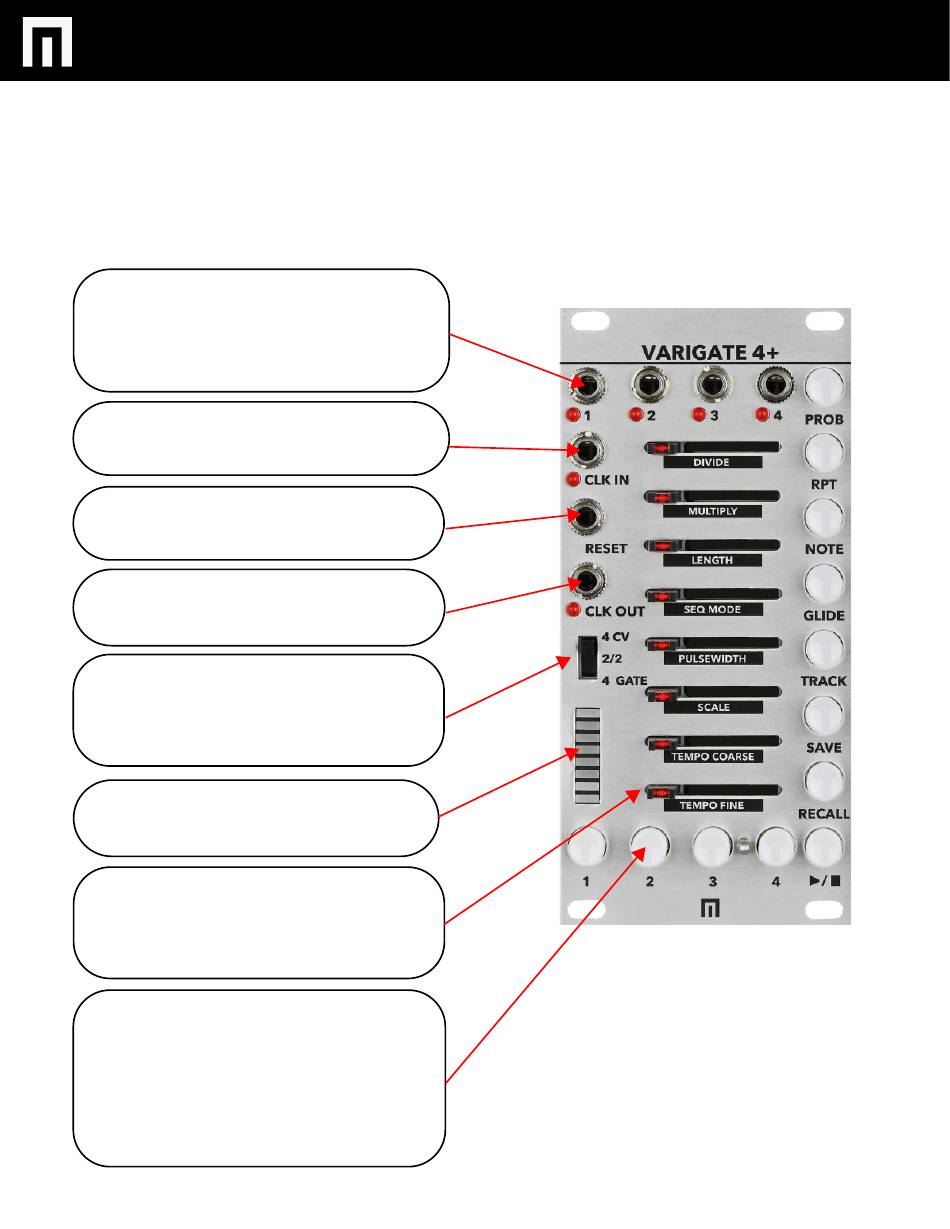

GATE and CV OUTPUT CHANNELS 1-4:
With LED indicators: Connect your patch cables
from these outputs to other module gate, trigger
or CV inputs depending on the mode you're in
(see MODE switch for more info).
CLK IN:
External CLOCK INPUT with clock indictor.
RESET:
Gate input for resetting to step 1.
CLK OUT:
CLOCK OUTPUT with LED indicator.
MODE SWITCH:
4 CV MODE: Enables CV output on all 4 channels.
2/2 MODE: Enables CV output on Channels 1
and 3 and Gate outputs on channels 2 and 4.
4 GATE: All outputs are gate outputs.
LED BAR GRAPH:
Displays various mode settings 1 through 8
(active steps, scales, sequence modes etc.).
STEP SLIDERS:
Move to adjust various per-step parameters
(PROBABILITY, REPEAT, NOTE, GLIDE per step) or
features listed underneath each slider when in
TRACK MODE (see TRACK for more info).
BUTTONS 1-4:
Press BUTTON 1 to access parameter adjust-
ments for CHANNEL 1 and so forth. NOTE: You
can also SAVE PRESETS to these buttons as well
as access BANKS of PRESETS. TO SAVE A
PRESET: Hold SAVE while pressing a button. TO
RECALL A PRESET: HOLD RECALL while pressing
a button. The PRESET that is active will pulse.
VARIGATE 4+ MANUAL V.1
OVERVIEW
PG. 4
