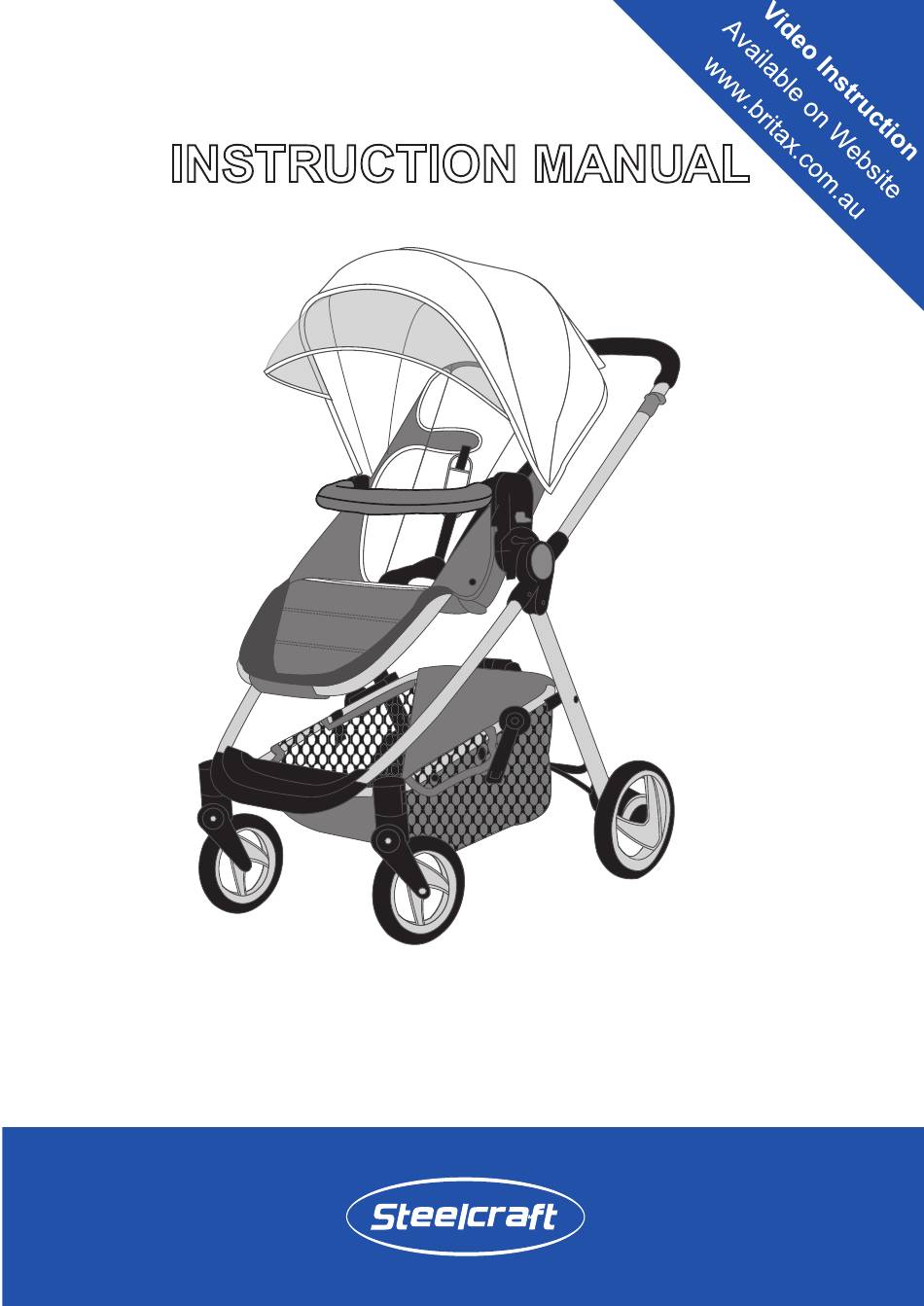

Suitable for use with Cruiser Infant Carrier (sold separately)
KEEP INSTRUCTIONS FOR FUTURE REFERENCE
Series HB 5300

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HB 5300 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Steelcraft HB 5300 Series

Summary of Contents for Steelcraft HB 5300 Series

  • Page 1 Suitable for use with Cruiser Infant Carrier (sold separately) KEEP INSTRUCTIONS FOR FUTURE REFERENCE Series HB 5300...

  • Page 2: Important Notes

    IMPORTANT NOTES IMPORTANT NOTES: ALWAYS FOLLOW THE MANUFACTURERS INSTRUCTIONS. READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY AND USE OF THIS STROLLER. THE CORRECT USE AND MAINTENANCE OF THIS PRODUCT IS ESSENTIAL. • USE GREAT CARE WHEN USING THE STROLLER ON STAIRS, ESCALATORS, TRAVELATORS OR OTHER MOVING SURFACES.
  • Page 3 WARNINGS WARNINGS: TO AVOID INJURY OR DEATH: ALWAYS APPLY THE BRAKES WHENEVER THE STROLLER IS STATIONARY. • DO NOT LEAVE CHILDREN UNATTENDED. • SECURE THE CHILD IN THE HARNESS AT ALL TIMES. • DO NOT CARRY EXTRA CHILDREN OR BAGS ON THIS STROLLER. •...

  • Page 4: Manual Handling Techniques

    MANUAL HANDLING TECHNIQUES The SMART lifting technique This technique can be used to pick up small light loads from low levels. Size up the Load • Assess the load (size, shape and weight). • Assess whether the load needs to be moved; •...

  • Page 5: Stroller Features

    STROLLER FEATURES Canopy Sun visor Handle Handle release moulding Seat liner Seat folding button Arm bar Seat release button Leg support adjuster button Frame lock Seat Adjuster lever Safety Tether strap Front wheel release tab Front swivel wheel lever Basket frame release buttons Brake...

  • Page 6: Parts List

    PARTS LIST 1 x Stroller Frame & Basket 1 x Seat 1 x Canopy 1 x Arm bar 2 x Rear Wheels 2 x Front Wheels 1 x Padded seat liner Shoulder pads...
  • Page 7 1. OPEN THE FRAME CAUTION: • RELEASE THE STORAGE LATCH WITH DUE CARE AND OPEN THE FRAME. • WHEN OPENING OR FOLDING THE STROLLER , BE AWARE OF THE DANGER OF BEING INJURED BY MOVING PARTS AND LOCKING DEVICES DURING THIS PROCESS. KEEP ALL HANDS AND LIMBS CLEAR OF THESE PARTS AND IN PARTICULAR BE AWARE TO KEEP CHILDREN AWAY FROM ANY DANGER.
  • Page 8 1. OPEN THE FRAME A Stand the frame on its side on a flat, clean surface. B Locate the frame lock , press and hold down. Then move the handle slightly forward so the frame is unlocked. With each hand holding the handle and rear leg frame continue CAUTION to open all the way until the handle...

  • Page 9: To Fit And Remove The Rear Wheels

    2. TO FIT AND REMOVE THE REAR WHEELS NOTE: The axle has a flat surface and needs to be aligned correctly into the wheel housing. A Align the flat surface of the axle with the flat surface of the wheel housing and insert the wheel until it locks in.

  • Page 10: To Use The Brakes

    3. TO USE THE BRAKES WARNING: ALWAYS APPLY THE BRAKES WHENEVER THE STROLLER IS STATIONARY. A With your foot, press down the RED brake lever to lock the wheels. Gently push the stroller forwards and backwards a few times to make sure the brake is engaged. To release the brake, lift the brake lever up.
  • Page 11 4. TO FIT AND REMOVE THE FRONT WHEELS A Take one front wheel at a time and insert the post into the front wheel housing. Push in until it locks into place. Pull on the front to confirm it is locked in. If not locked in , repeat the procedure.
  • Page 12 5. FRONT SWIVEL WHEEL LOCKS NOTE: The swivel wheel locks are located behind the wheel housing. A To lock the front swivel wheels , press down each front wheel lever to the locked position. The swivel wheels will lock automatically when the wheels turn to a straight position.
  • Page 13 6. TO OPEN THE SEAT A Hold down the bottom of the seat with one hand. B Rotate the top of the seat open and into the locked position. Confirm it has locked open. If not locked , repeat the procedure. 7.

  • Page 14: To Adjust The Backrest

    8. TO ADJUST THE BACKREST WARNING: • THE UPRIGHT POSITIONS ARE NOT SUITABLE FOR A CHILD UNDER 6 MONTHS OLD. • THE LOWEST RECLINE POSITION SHOULD BE USED TO TRANSPORT BABIES. THE BACKREST CAN BE ADJUSTED TO A MORE UPRIGHT POSITION AS THE CHILD GROWS OLDER AND IS ABLE TO SUPPORT ITS HEAD WITHOUT ASSISTANCE.
  • Page 15 10. TO FIT THE SEAT IN THE REARWARD FACING POSITION A On each side , locate the seat mouldings over the frame mouldings as shown. B Push down on both sides until you hear the seat lock onto the frame. Pull up on each side to confirm they are locked.
  • Page 16 11. TO FIT THE ARM BAR WHEN A CHILD IS IN THE STROLLER, KEEP THE ARM BAR ATTACHED TO THE FRAME AT ALL TIMES. NOTE: Make sure the CAUTION notice is facing up. A Align the arm bar mouldings on each side , with the Stroller frame receiver mouldings.

  • Page 17: To Attach And Use The Canopy

    12. TO ATTACH AND USE THE CANOPY IMPORTANT NOTE: • THE SUN IS VERY STRONG. DO NOT LEAVE YOUR CHILDREN EXPOSED TO THE SUN. • THE CANOPY OR HOOD ON THIS PRODUCT WILL NOT GIVE YOUR CHILD TOTAL PROTECTION FROM THE HARMFUL RAYS OF THE SUN. A Align the canopy mouldings to each side of the Stroller frame as shown.
  • Page 18 The canopy window is secured by a hidden magnet. To open the canopy window flap , lift the cover. To close the canopy window flap and attach it to the hidden magnet in the centre section on the bottom of the canopy window. 13.

  • Page 19: To Secure Your Child In The Harness

    14. TO SECURE YOUR CHILD IN THE HARNESS WARNING: USE THE HARNESS AT ALL TIMES. • ENSURE YOUR CHILD IS IS SECURED WITH A CORRECTLY ADJUSTED HARNESS. • THE ADJUSTED HARNESS SHOULD CLOSELY FIT THE CHILD. • NEVER LEAVE THE HARNESS BUCKLED WHEN NOT FITTED TO A CHILD IN THE STROLLER , BECAUSE THE HARNESS CAN FORM LOOPS WHICH MAY CAUSE A STRANGULATION HAZARD.
  • Page 20 Shoulder Shoulder strap strap Buckle housing Waist strap Crotch strap B Push both buckle tongues (A+B) into the buckle housing (C) until the buckle tongues lock into position. D Tighten or loosen the waist straps, 4 bar hold and lift the 4 bar slider and then pull slider the harness strap, to adjust to the desired fit.
  • Page 21 To release the buckle. Squeeze the top and buckle tongues together with enough pressure so the buckle tongues can release from the buckle housing. G The stroller seat has *2 or 3 sets of harness slots at different heights to accommodate the child.
  • Page 22 15. TO FIT THE SEAT LINER NOTE: Release the harness buckle before fitting the seat liner. A Place the Seat Liner into the Stroller. B Place the each shoulder harness straps in the gap on the seat liner. Thread the each waist strap through the button hole.

  • Page 23: To Use The Tether Strap

    16. TO FIT THE SHOULDER PADS A Slide each shoulder strap through each shoulder pad. 17. TO USE THE TETHER STRAP WARNINGS: • USE THE TETHER STRAP TO STOP THE STROLLER ROLLING AWAY. • USE THE TETHER STRAP TO STOP THE STROLLER FROM ROLLING AWAY.

  • Page 24: To Use The Stroller

    18. TO USE THE STROLLER IMPORTANT NOTE: THE STROLLER IS DESIGNED FOR USE ON FLAT OR GENTLY SLOPING SURFACES, AND MAY BE UNSTABLE ON HIGHER SLOPING AND UNEVEN SURFACES AND USERS SHOULD BE AWARE OF THE POSSIBILITY OF THE STROLLER ROLLING AWAY OR TIPPING OVER. •...
  • Page 25 19/20. TO FOLD AND UNFOLD THE STROLLER WARNING: • THERE IS POTENTIAL FOR FINGERS OR PARTS OF THE BODY TO BE INJURED WHEN THE VEHICLE IS BEING. FOLDED OR UNFOLDED, DUE CARE SHOULD BE EXERCISED. • WHEN OPENING OR FOLDING THE STROLLER , BE AWARE OF THE DANGER OF BEING INJURED BY MOVING PARTS AND LOCKING DEVICES DURING THIS PROCESS.

  • Page 26: To Fold The Stroller

    19. TO FOLD THE STROLLER NOTES: With the seat attached , the stroller can only be folded with the seat in the forward facing mode. Folding procedure by numbers 1 to 4 (as shown on the stroller) A For easy folding , MAKE SURE THE FRONT WHEELS ARE IN SWIVEL WHEEL MODE.
  • Page 27 D Pull up on both handle release mouldings and fold the handle all the way forward. With one hand , push down and hold the grey seat folding button on the seat moulding. Then with your other hand , lift the seat adjusting lever all the way up and fold the seat forward.
  • Page 28 With one hand , grasp the basket frame release latches. Slide the top button to the right and at the same time squeeze the button underneath and lift up. The frame will start to fold. CAUTION G Continue to fold the frame together and engage the frame lock.

  • Page 29: To Unfold The Stroller

    20. TO UNFOLD THE STROLLER A To unfold the stroller, hold the stroller handle with one hand and release the frame latch with the other hand. B Open the handle with both hands until handle locks into position.
  • Page 30 While holding the handle push down the top of the basket until frame locks open. D Rotate the top of the seat all the way backwards until it locks. Adjust the backrest to the desired position.
  • Page 31 21. TO LIFT AND CARRY THE STROLLER IMPORTANT NOTES: To lift the Stroller , grasp the frame approximately halfway along the Stroller , so the Stroller is balanced. Please refer to page 4 Manual handling techniques.

  • Page 32: Stroller Handle

    22. TO ATTACH THE INFANT CARRIER (Sold separately) WARNINGS: • IT IS UNSAFE TO USE ACCESSORIES NOT APPROVED FOR USE WITH THIS STROLLER. • DO NOT USE ANY ACCESSORIES OTHER THAN THOSE APPROVED FOR USE WITH THIS STROLLER BY BRITAX. •...
  • Page 33 22. TO ATTACH THE INFANT CARRIER A Remove stroller seat from the Frame. See section 9 To remove the seat. B With the Infant Carrier handle in the upright position, locate the Infant Carrier handle mouldings on either side and push down on the Infant Carrier directly over the frame mouldings.

  • Page 34: To Release The Infant Carrier

    23. TO RELEASE THE INFANT CARRIER A Squeeze both handle latches in to release the locks. The indicator will now be RED. B Continue to rotate the handle forward until it returns to the upright position. The indicator should now be GREEN. Lift and remove the Infant carrier away from the stroller frame.

  • Page 35: Care And Maintenance

    24. CARE AND MAINTENANCE • To prolong the life of your stroller keep it clean and do not leave it in the direct sunlight or in the car boot for extended periods of time. • Removable fabric covers and trims may be cleaned using warm water with a household soap or mild detergent.
  • Page 36 Due to our continuing program of development, Britax reserves the right to alter the specifications, color or design without any further notice. The Steelcraft trademark is the property of Britax Childcare Pty.Ltd - Australia. The Britax trademark is the property of Britax Excelsior Limited - UK.
