Steelcraft Accent H318 Series Instructions Manual

Reverse handle stroller
Hide thumbs
Table of Contents

Advertisement

Quick Links

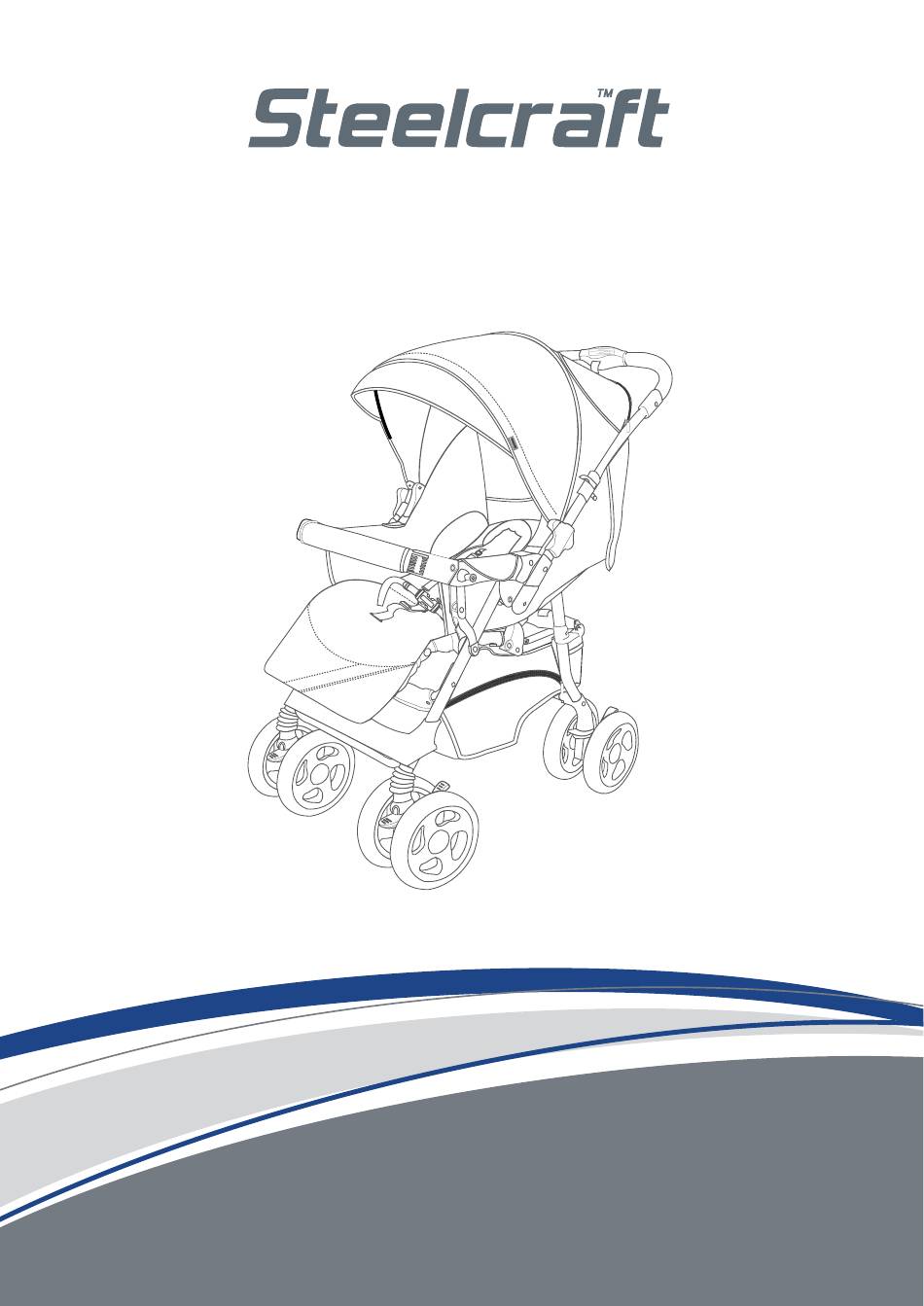

ACCENT
REVERSE HANDLE STROLLER
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
www.britax.com.au
Series H319

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Accent H318 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Steelcraft Accent H318 Series

Summary of Contents for Steelcraft Accent H318 Series

  • Page 1 ACCENT REVERSE HANDLE STROLLER KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE www.britax.com.au Series H319...

  • Page 2: Important Notes

    IMPORTANT NOTES IMPORTANT NOTES: ALWAYS FOLLOW THE MANUFACTURERS INSTRUCTIONS. READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY AND USE OF THIS STROLLER. THE CORRECT USE AND MAINTENANCE OF THIS PRODUCT IS ESSENTIAL. • USE GREAT CARE WHEN USING THE STROLLER ON STAIRS, ESCALATORS, TRAVELATORS OR OTHER MOVING SURFACES.
  • Page 3 WARNINGS WARNINGS: TO AVOID INJURY OR DEATH: ALWAYS APPLY THE BRAKES WHENEVER THE STROLLER IS STATIONARY. • DO NOT LEAVE CHILDREN UNATTENDED. • SECURE THE CHILD IN THE HARNESS AT ALL TIMES. • DO NOT CARRY EXTRA CHILDREN OR BAGS ON THIS STROLLER. •...

  • Page 4: Manual Handling Techniques

    MANUAL HANDLING TECHNIQUES The SMART lifting technique This technique can be used to pick up small light loads from low levels. Size up the Load • Assess the load (size, shape and weight). • Assess whether the load needs to be moved; •...

  • Page 5: Opening The Stroller

    ASSEMBLING THE STROLLER IMPORTANT NOTES: PLEASE REFER TO PAGE 4 FOR SMART LIFTING TECHNIQUES. • RELEASE THE STORAGE LATCH WITH DUE CARE AND OPEN THE FRAME. • WHEN OPENING THE STROLLER, BE AWARE OF THE DANGER OF BEING INJURED BY MOVING PARTS AND LOCKING DEVICES DURING THE PROCESS.

  • Page 6: Assembling The Stroller

    ASSEMBLING THE STROLLER ATTACHING THE SWIVEL WHEELS A Take each swivel wheel assembly and push it down rmly onto each of the legs until a click is heard. Check that each wheel is fully engaged and secured by pulling against it. ATTACHING THE BOOT COVER A Raise the leg support and place the boot cover over the front of the leg support and the arm bar.
  • Page 7 ASSEMBLING THE STROLLER ATTACHING THE STORM COVER A Unlock the handle position so it moves freely from either locked position on the frame. CAUTION CAUTION B Pull the storm cover over extended canopy, position large hole in storm cover over the rear handle lock. The storm cover needs to be on the inside of the handle.
  • Page 8 ASSEMBLING THE STROLLER ATTACHING THE STORM COVER A Attach the hook and loop at underside of storm cover. The handle is now free to move and lock into either position.
  • Page 9 ASSEMBLING THE STROLLER ATTACHING THE MESH COVER A Zip the mesh cover to front of the canopy. B Place the elastic front over the arm bar. Do not cover the handle lock with the mesh to prevent tearing. C Loop the elastic attachments over the rear handle lock.
  • Page 10 OPERATING THE STROLLER USING THE SWIVEL WHEELS PLEASE NOTE: This stroller has been designed with independent suspension to give your child a more comfortable ride, this means that each corner of the product can rise and fall individually. Under some circumstances one wheel may lift from the ground when the suspension is operating, particularly when changing direction quickly, THIS IS NOT A PRODUCT FAULT, it is merely an operating characteristic of the stroller which should not cause any problems.
  • Page 11 OPERATING THE STROLLER USING THE SWIVEL WHEELS If the wheels are locked in the wrong position,you will experience handling problems and the wheels will shake and shudder. A To lock the swivel wheels,lift the locking clip up. To allow the wheels to swivel, push the locking clip down PLEASE NOTE: Lock all swivel wheels when using the stroller on rough surfaces as this will minimise wheel wobble.

  • Page 12: Using The Brakes

    OPERATING THE STROLLER USING THE BRAKES WARNING: ALWAYS APPLY THE BRAKES WHEN THE STROLLER IS STATIONARY. A To lock the brakes, push down on each brake lever using your foot. B To release the brakes, lift each brake lever using your foot.

  • Page 13: Adjusting The Leg Support

    OPERATING THE STROLLER ADJUSTING THE LEG SUPPORT IMPORTANT NOTES: • THE LEG SUPPORT FEATURE IS PROVIDED FOR YOUR CHILD'S COMFORT. • THE LEG SUPPORT IS NOT DESIGNED TO SUPPORT EXTRA WEIGHT. • DO NOT ALLOW CHILDREN TO STAND OR SIT ON THE LEG SUPPORT. IT WILL DISENGAGE IF EXTRA WEIGHT IS APPLIED.
  • Page 14 OPERATING THE STROLLER ADJUSTING THE BACKREST WARNINGS: • THE UPRIGHT POSITIONS ARE NOT SUITABLE FOR USE WITH CHILDREN LESS THAN 6 MONTHS OLD. • THE LOWEST RECLINE POSITION SHOULD BE USED TO TRANSPORT BABIES. THE BACKREST CAN BE ADJUSTED TO A MORE UPRIGHT POSITION AS THE CHILD GROWS OLDER AND IS ABLE TO SUPPORT ITS HEAD WITHOUT ASSISTANCE.

  • Page 15: Adjusting The Backrest

    OPERATING THE STROLLER ADJUSTING THE BACKREST B To raise the backrest, hold the backrest along the bottom edge with both hands and lift to select a more upright seating position. ADJUSTING THE CANOPY IMPORTANT NOTE: The sun is very strong. DO NOT LEAVE YOUR CHILD EXPOSED TO THE SUN.

  • Page 16: Adjusting The Canopy

    OPERATING THE STROLLER ADJUSTING THE CANOPY B To open the canopy, pull the canopy forward or to close the canopy, push the canopy backwards. C The canopy window cover can be rolled up and secured with the elastic loop and toggle.
  • Page 17 OPERATING THE STROLLER ADJUSTING THE HARNESS WARNING: USE THE HARNESS AT ALL TIMES. • ENSURE YOUR CHILD IS SECURED WITH A CORRECTLY ADJUSTED HARNESS. • THE ADJUSTED HARNESS SHOULD CLOSELY FIT THE CHILD. • NEVER LEAVE THE HARNESS BUCKLED WHEN NOT FITTED TO A CHILD IN THE STROLLER, BECAUSE THE HARNESS CAN FORM LOOPS WHICH MAY POSE A STRANGULATION HAZARD.

  • Page 18: Adjusting The Harness

    OPERATING THE STROLLER ADJUSTING THE HARNESS Shoulder straps Buckle housing Waist Waist strap strap Crotch strap B Position the shoulder strap tongue (A) on the top of the waist buckle tongue (B) on both sides. Shoulder strap Shoulder strap Buckle housing Waist Waist...
  • Page 19 OPERATING THE STROLLER ADJUSTING THE HARNESS 3 bar slider 3 bar slider Waist strap 3 bar slider Crotch strap D Tighten or loosen crotch straps by sliding the 3 bar sliders up or down. 4 bar slider E Tighten or loosen the waist straps, hold and lift the 4 bar slider and then pull the harness strap to adjust to the desired t.
  • Page 20 OPERATING THE STROLLER ADJUSTING THE HARNESS F Tighten or loosen the shoulder straps, slide the 3 bar slider up or down to adjust to the desired t. Always adjust the harness strap when changing the seating position of the child. G To release the buckle, squeeze the top and buckle tongues together with enough pressure so the buckle tongues can release from the buckle housing.
  • Page 21 OPERATING THE STROLLER ADJUSTING THE HARNESS H The stroller seat has 3 sets of harness slots at di erent heights to accommodate the child. To change the shoulder harness height, either push the shoulder harness tongue in or out of the webbing tab on the seat and push through the correct harness slot on the seat pad.
  • Page 22 OPERATING THE STROLLER ADJUSTING THE HARNESS I Push the waist and crotch strap through the slot on the seat pad.
  • Page 23 OPERATING THE STROLLER USING THE ARM BAR IMPORTANT NOTE: WHEN A CHILD IS IN THE STROLLER, KEEP THE ARM BAR ATTACHED AT ALL TIMES. A Fully depress the side arm bar buttons and slide the arm bar out for easy access, or push in to install it. REVERSING THE STROLLER HANDLE IMPORTANT NOTE: WHEN A CHILD IS IN THE STROLLER, ENSURE THEIR FINGERS ARE NOT...
  • Page 24 OPERATING THE STROLLER REVERSING THE STROLLER HANDLE CAUTION CAUTION CAUTION Please Note: When making adjustments to the handle position you must also adjust the position of the wheels. See Page 10 - To use the swivel wheels.
  • Page 25 OPERATING THE STROLLER USING THE TETHER STRAP WARNINGS: USE THE TETHER STRAP TO STOP THE STROLLER ROLLING AWAY. • THE STROLLER IS DESIGNED FOR USE ON FLAT OR GENTLY SLOPING SURFACES, AND MAY BE UNSTABLE ON HIGHER SLOPING AND UNEVEN SURFACES AND USERS SHOULD BE AWARE OF THE POSSIBILITY OF THE STROLLER ROLLING AWAY OR TIPPING OVER.
  • Page 26 OPERATING THE STROLLER USING THE STROLLER PLEASE REFER TO PAGE 4 FOR LIFTING TECHNIQUES. • Always ensure you bend your knees where appropriate and take due care when lifting the frame. • With your hand through the wrist tether strap loop, push the stroller holding the handle.
  • Page 27 OPERATING THE STROLLER FOLDING THE STROLLER IMPORTANT NOTES: PLEASE REFER TO PAGE 4 FOR LIFTING TECHNIQUES. • REMOVE THE CHILD FROM THE STROLLER BEFORE COMMENCING ANY FOLDING OPERATION. • FOLD THE STROLLER SLOWLY AND BE CAREFUL WHERE YOU PLACE YOUR HANDS. •...

  • Page 28: Folding The Stroller

    OPERATING THE STROLLER FOLDING THE STROLLER D Depress the red safety lock located on the rear leg. Close the stroller fully until frame storage lock engages. CAUTION...

  • Page 29: Lifting And Carrying The Stroller

    OPERATING THE STROLLER LIFTING AND CARRYING THE STROLLER Please Note: This image is for illustrative purposes only.

  • Page 30: Infant Carrier Warnings

    • THE MAXIMUM WEIGHT OF THE CHILD USING THE SAFE N SOUND UNITY INFANT CARRIER IS NOT TO EXCEED 12kg. INFANT CARRIER IMPORTANT NOTES • THE STEELCRAFT INFANT CARRIER & THE SAFE N SOUND UNITY INFANT CARRIER ARE THE ONLY COMPATIBLE INFANT CARRIERS DESIGNED TO FIT THIS STROLLER.
  • Page 31 INFANT CARRIER IMPORTANT NOTES PLEASE NOTE: USING THE 40A/2013 UNITY INFANT CARRIER - The Click & Go ™ Adaptors on the 40A/2013 Unity Infant Carrier will need to be removed before installing the Infant Carrier on the stroller. Please refer to 40A/2013 Infant Carrier instructions on how to remove the Click &...
  • Page 32 OPERATING THE STROLLER ATTACHING THE UNITY INFANT CARRIER PLEASE NOTE: INFANT CARRIERS ARE SOLD SEPARATELY. A The stroller seat has 3 sets of harness slots at di erent heights to accommodate the child. To change the shoulder harness height, either push the shoulder harness tongue in or out of the webbing tab on the seat and push through the correct harness slot on the seat pad.
  • Page 33 OPERATING THE STROLLER ATTACHING THE UNITY INFANT CARRIER PLEASE NOTE: INFANT CARRIERS ARE SOLD SEPARATELY. C Lower the Infant Carrier and ensure that the latch slot locates onto the arm bar. D Lower the foot end of the Infant Carrier until the latch locks onto the arm bar and rest the foot end on the seating area of the stroller.
  • Page 34 OPERATING THE STROLLER REMOVING THE UNITY INFANT CARRIER A Lower the stroller backrest to the full recline position. Fold the Infant Carrier handle up to the carry position and grip rmly in one hand. Raise the Infant Carrier release catch located on the rear of the carrier. CAUTION B Lift and remove the Infant Carrier from the stroller.
  • Page 35 OPERATING THE STROLLER ATTACHING THE STEELCRAFT INFANT CARRIER PLEASE NOTE: INFANT CARRIERS ARE SOLD SEPARATELY. PLEASE NOTE: The Infant Carrier can only be attached to the frame in the rearward facing position, tted to the stroller facing toward the stroller handle.
  • Page 36 OPERATING THE STROLLER ATTACHING THE STEELCRAFT INFANT CARRIER PLEASE NOTE: INFANT CARRIERS ARE SOLD SEPARATELY. D Push down on the Infant Carrier and make sure it is located into the frame mouldings. The Infant Carrier now needs to be locked securely into the frame.
  • Page 37 OPERATING THE STROLLER REMOVING THE STEELCRAFT INFANT CARRIER A Squeeze both handle latches in to release the locks and rotate forward slightly. The indicator will now be RED. B With one hand on handle continue to rotate the handle forward until it returns to the upright position.
  • Page 38 NOTES...

  • Page 39: Care And Maintenance

    CARE AND MAINTENANCE • To prolong the life of your stroller keep it clean and do not leave it in the direct sunlight for extended periods of time. • Remove fabric covers and trims may be cleaned using warm water with household soap or mild detergent.
  • Page 40 Due to our continuing program of development, Britax reserves the right to alter the specifications, color or design without any further notice. The Steelcraft trademark is the property of Britax Childcare Pty.Ltd - Australia. The Britax trademark is the property of Britax Childcare Holdings Limited - UK.
