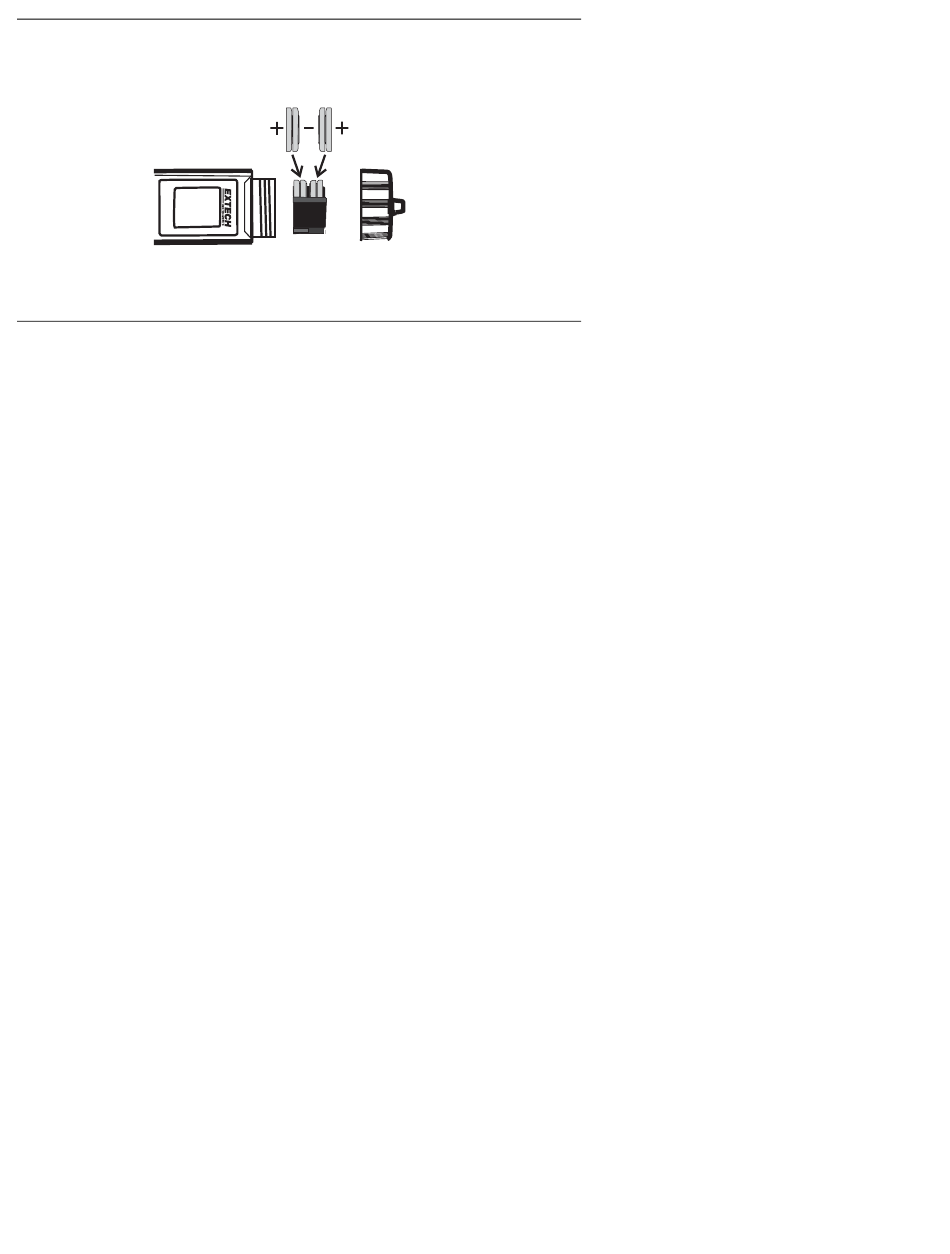

Battery Replacement
1.
Twist off the battery compartment cap
2.
Replace the four (4) 2032 batteries observing polarity.
3.
Replace the battery compartment cap
Specifications
Display
Multifunction LCD with Bargraph
Operating conditions
32 to 122
Range and Accuracy
0.00 to 14.00 / ± 0.01pH typical
Temp. Compensation
Automatic from 32 to 194
Temperature Range
23 to 194
Temperature Resolution
0.1
Temperature Accuracy
± 1.8
Measurement storage
25 tagged (numbered) readings
Power
Four (4)CR2032 button batteries
Low battery indication
'BAT' appears on the LCD
Auto power off
After 10 minutes of inactivity
Dimensions
35.6x172.7x40.6mm (1.4x6.8x1.6"); 110g (3.85oz)
o
o
F (0 to 50
C) / < 80% RH
o
F (0 to 90
o
o
F (-5 to 90
C)
o
o
up to 99.9 then 1
thereafter
o
o
F / 1
C
6
o
C)
PH150-C V2.1 07/09
